Hybrid Drivers

The new generation Hybrid MT-300 tweeter and CDM-700 offer unrivaled high-frequency performance in a compact design with incredible high power handling capabilities at very low distortion levels.

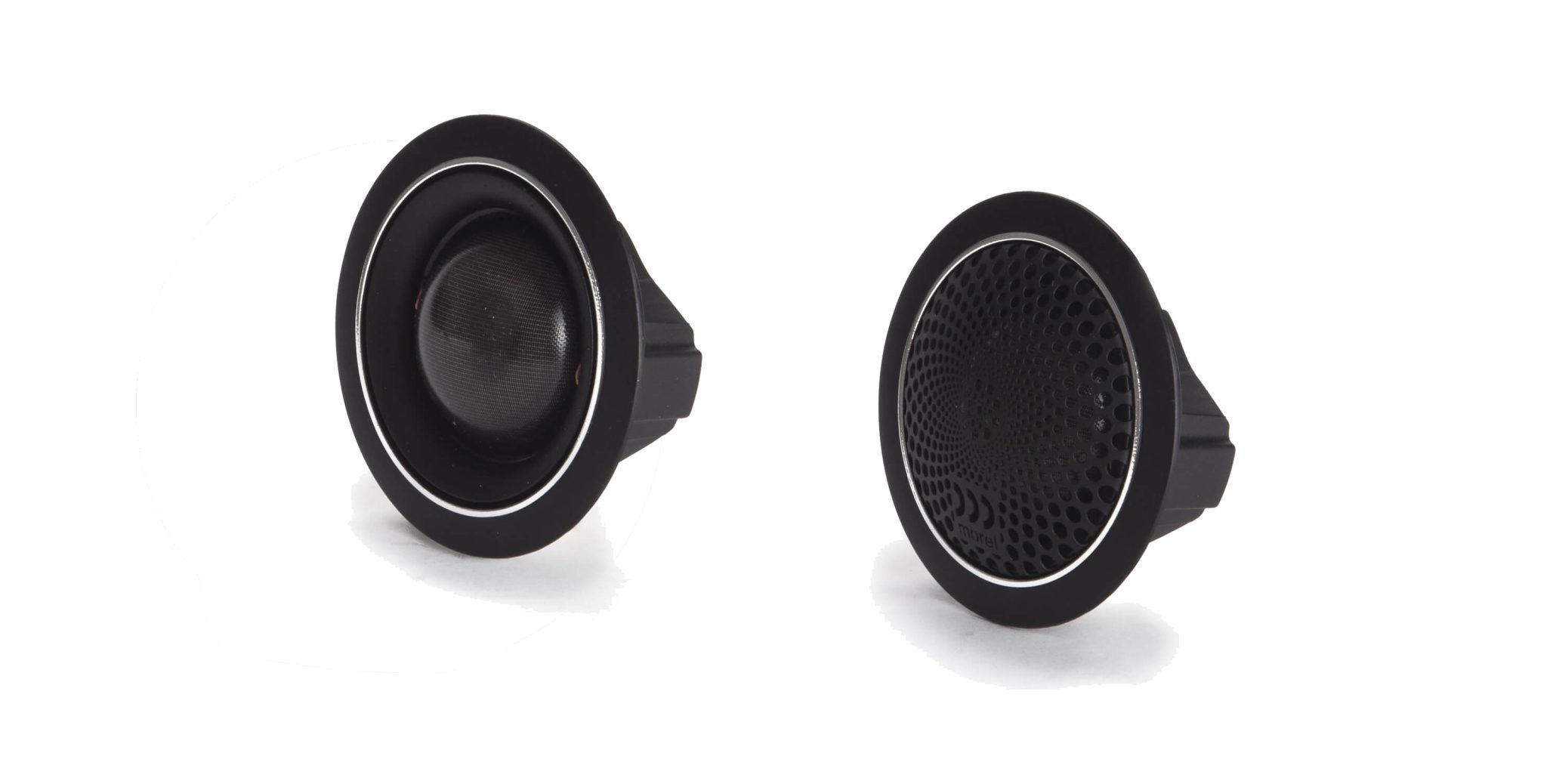

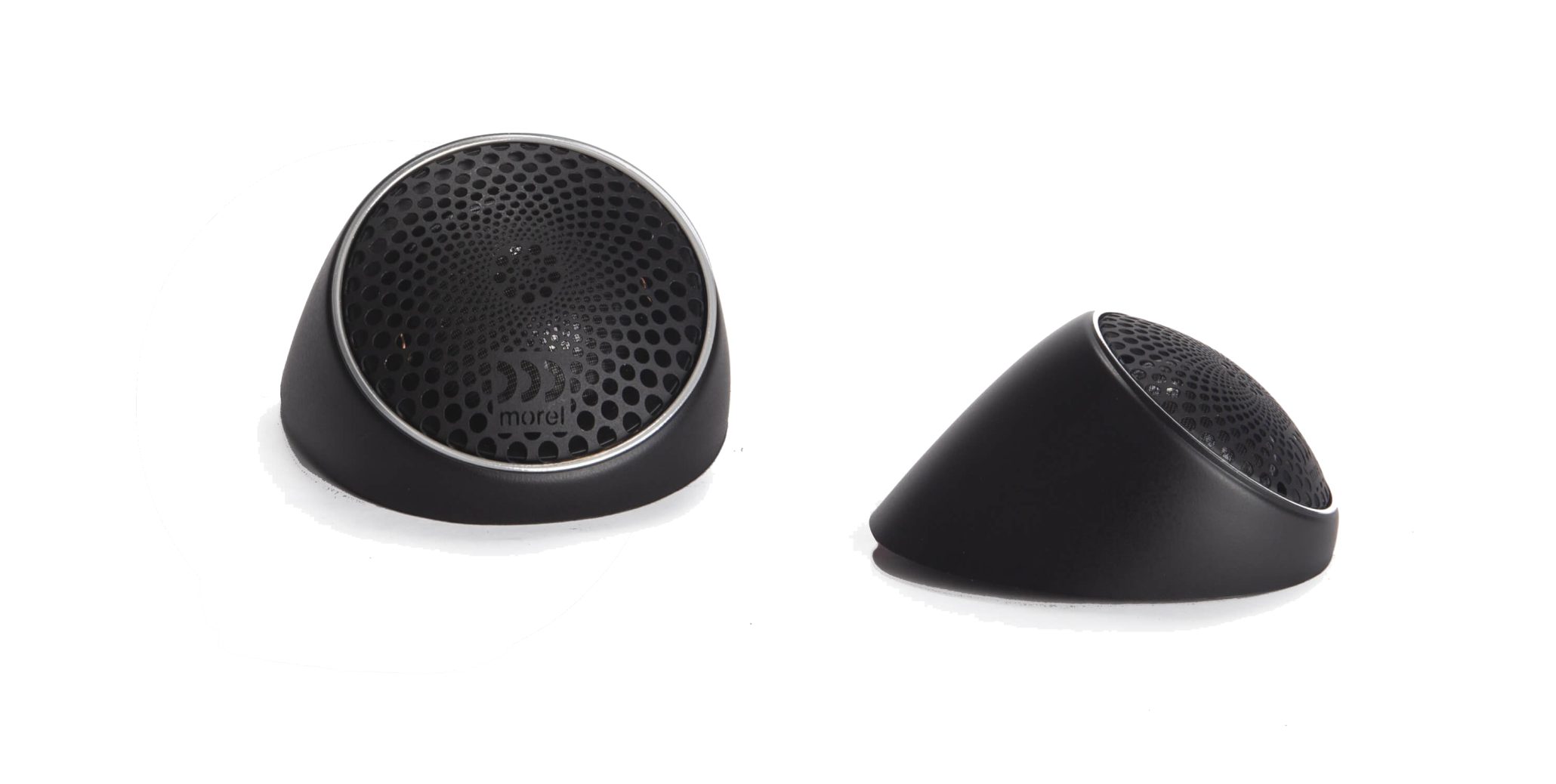

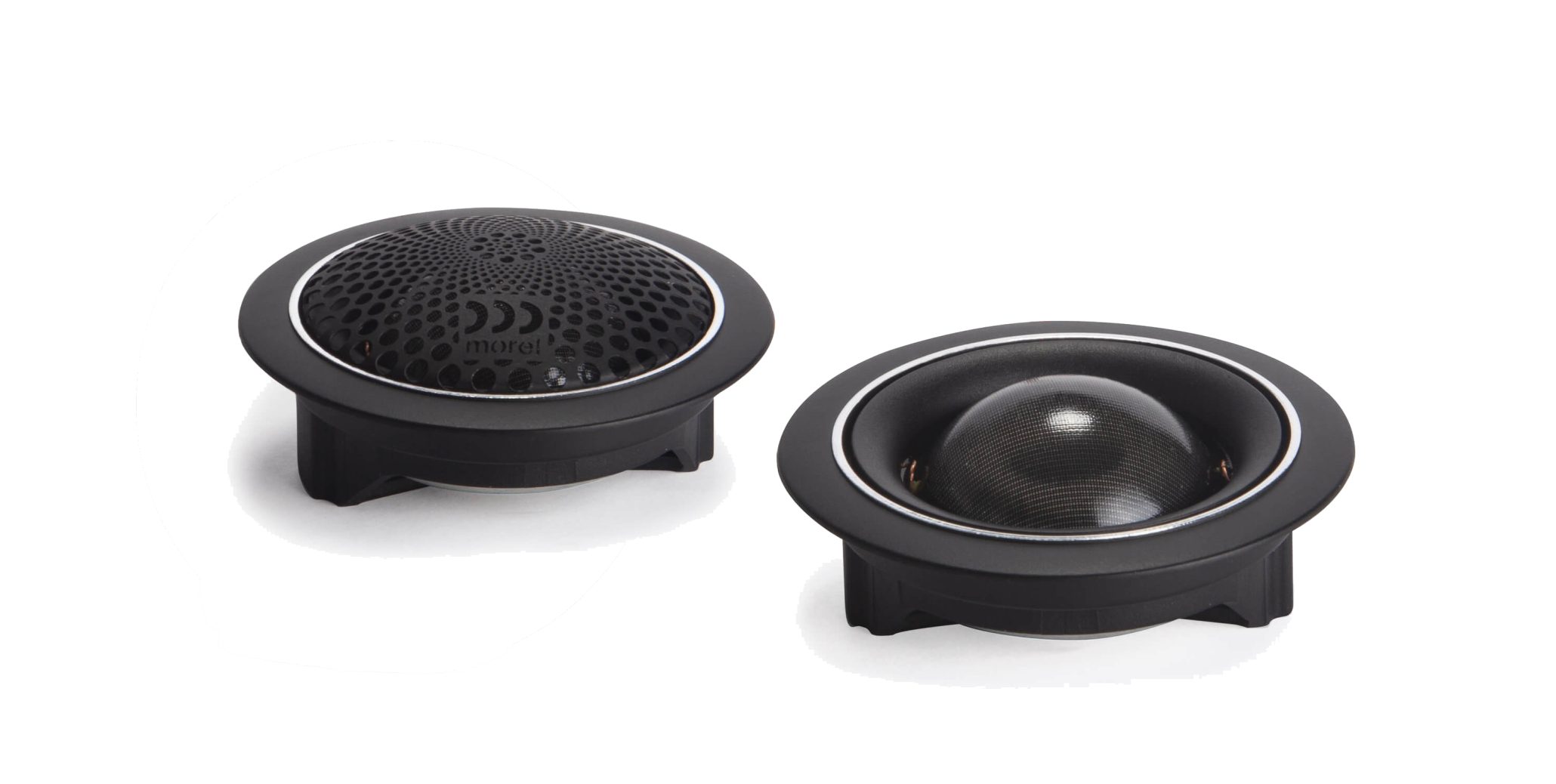

The MT300 design uses Morel’s signature Acuflex hand-coated coated 28mm soft dome, Hexatech aluminum voice coil, and dual neodymium motor technologies. While its size allows it to be fit in most factory locations, surface and flush mount options with a beautiful lotus grille provide an elegant look fitting for modern vehicles.   While its size allows it to be fit in most factory locations, surface and flush mount options with a beautiful lotus grille provide an elegant look fitting for modern vehicles.

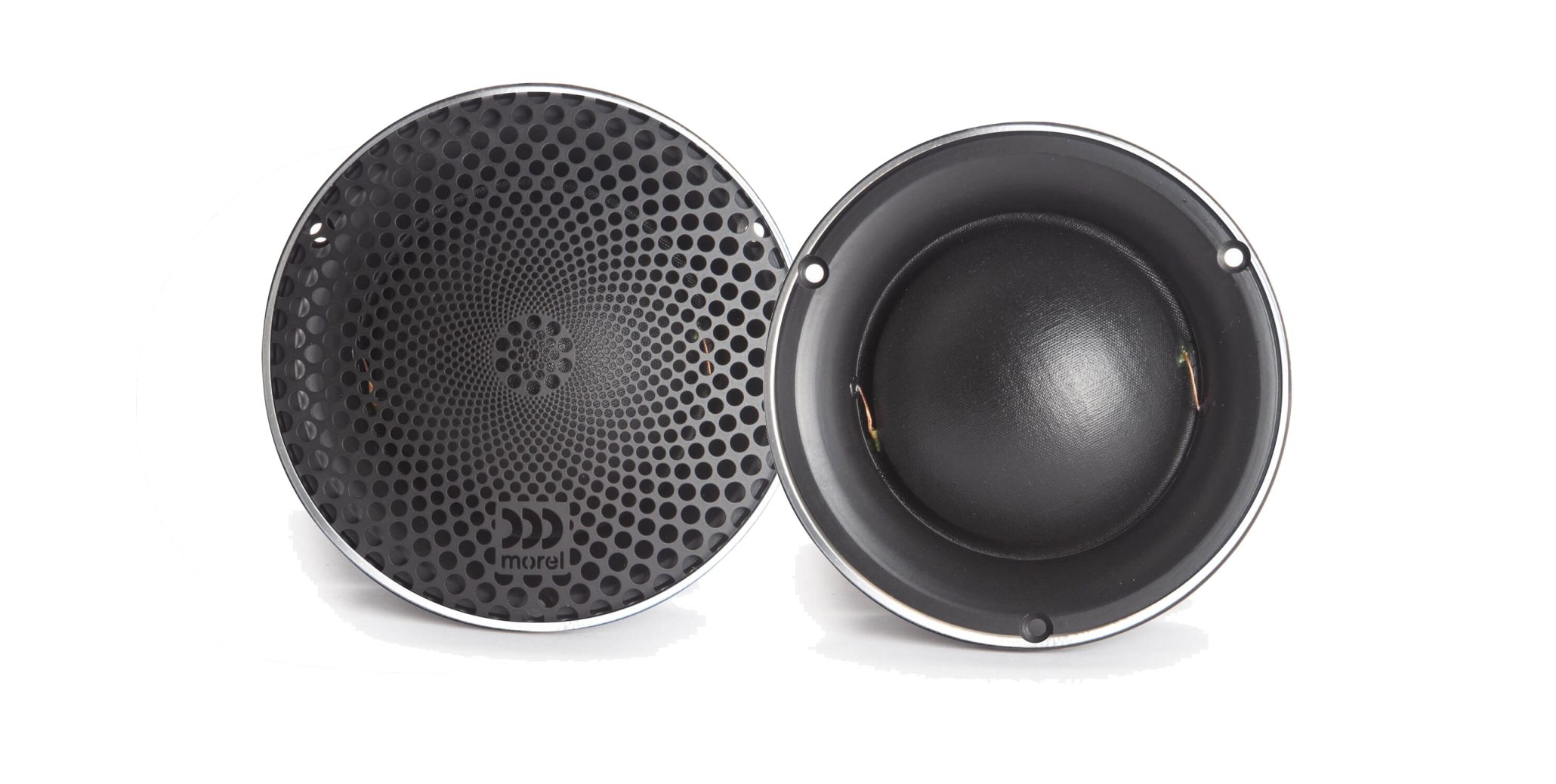

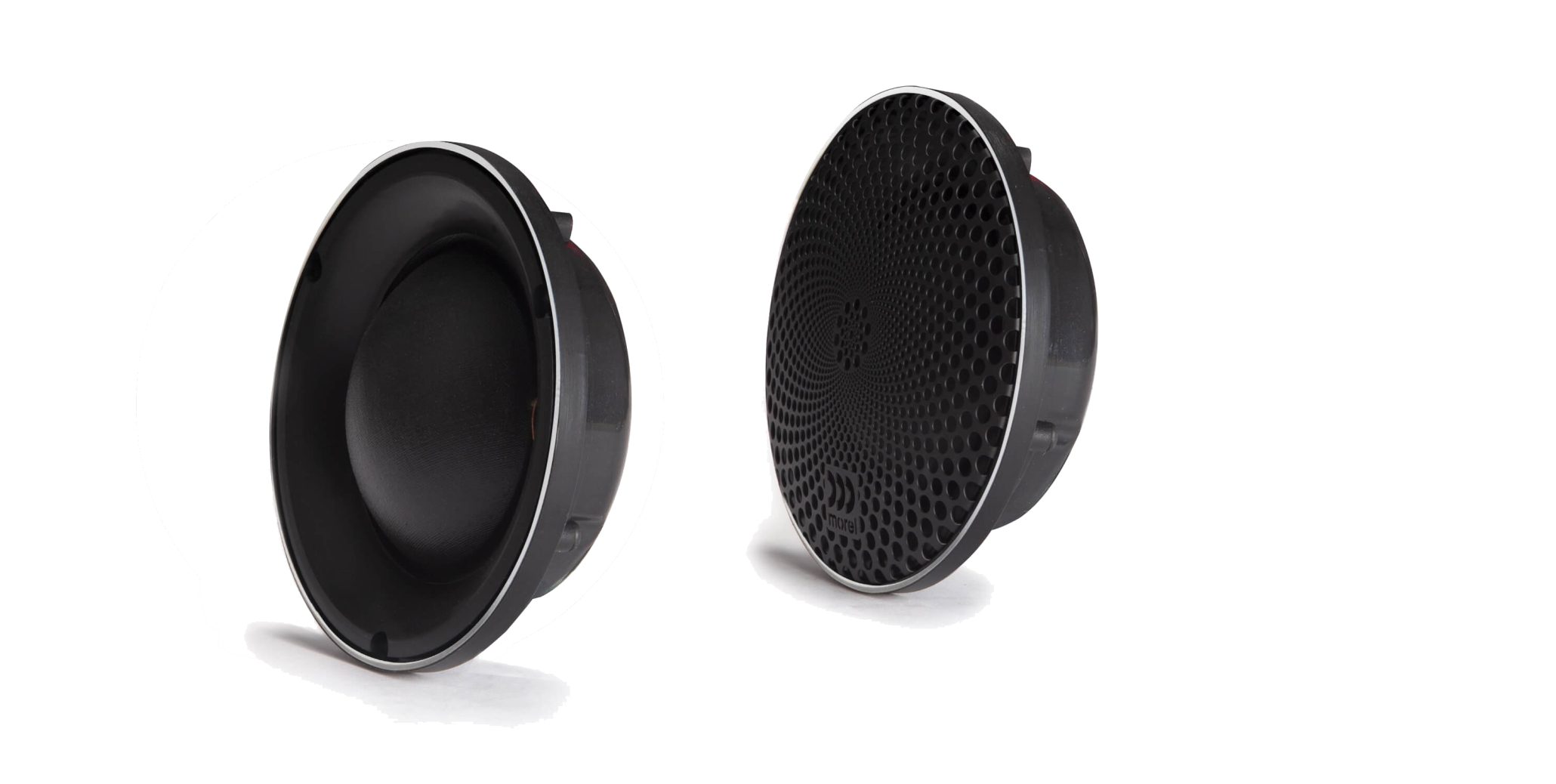

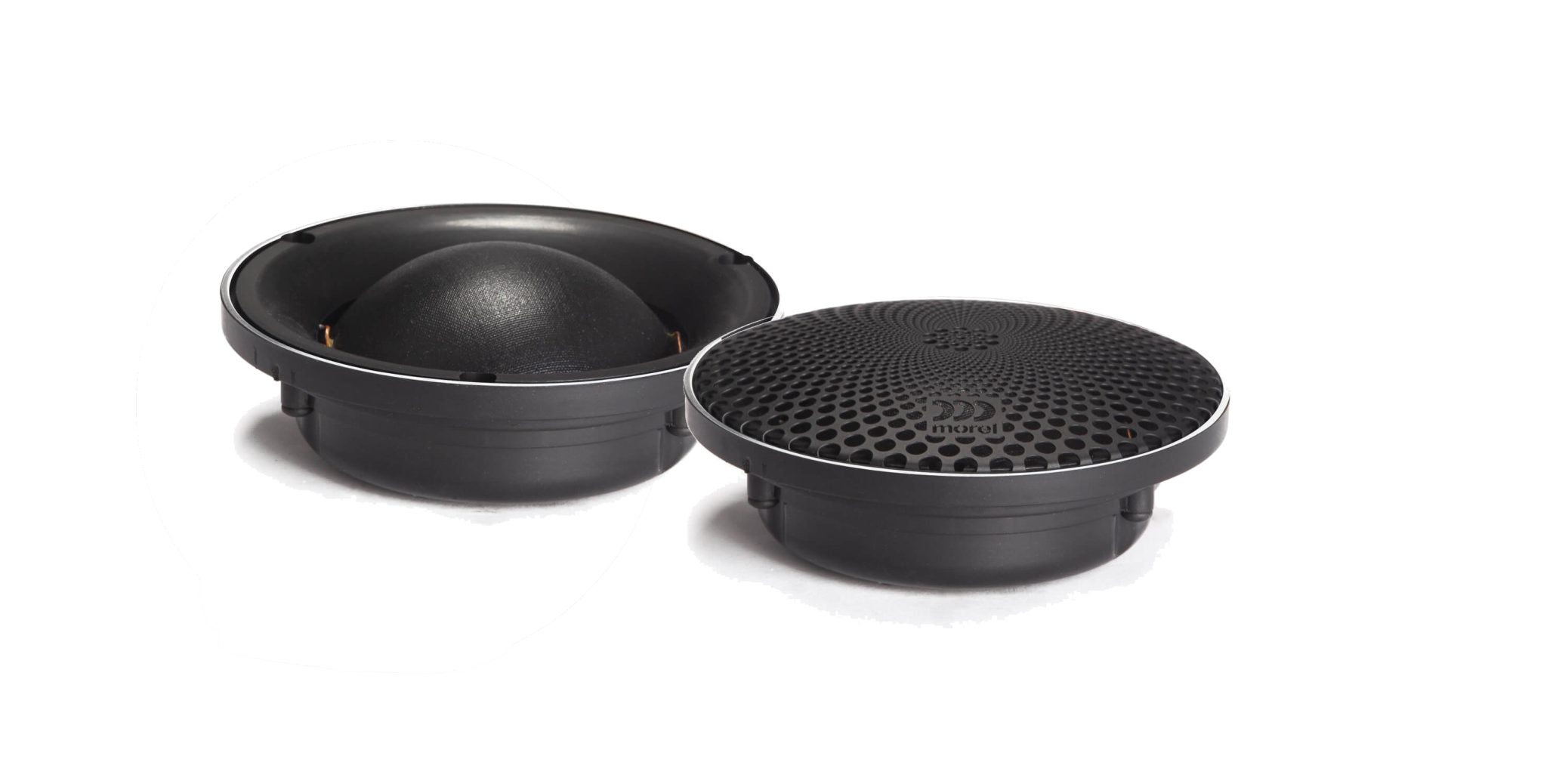

The CDM700 is a very shallow 2.1” soft dome midrange incorporating a 2.1” extremely low mass aluminum Hexatech voice coil allows for very efficient cooling of the coil.  The Neo magnet motor system, encapsulating the voice coil structure, forms a very large venting pole with a Morel’s C.A.R filter to create a very effective damped rear chamber.  This typology produces very low resonance frequency, low distortion and high power handling.  The CDM 700 acoustic attributes and mechanical design can be easily installed in various locations in the car.

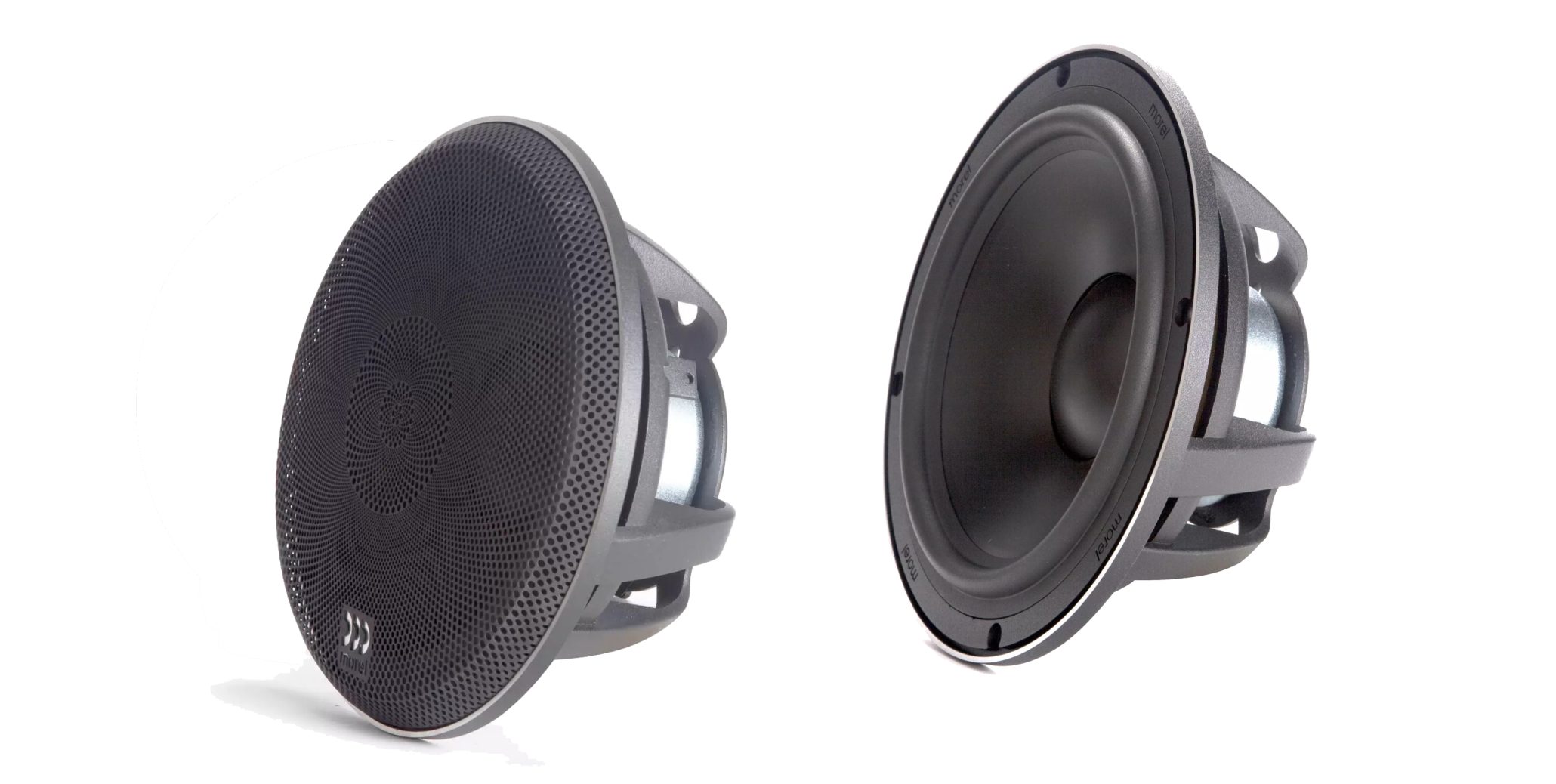

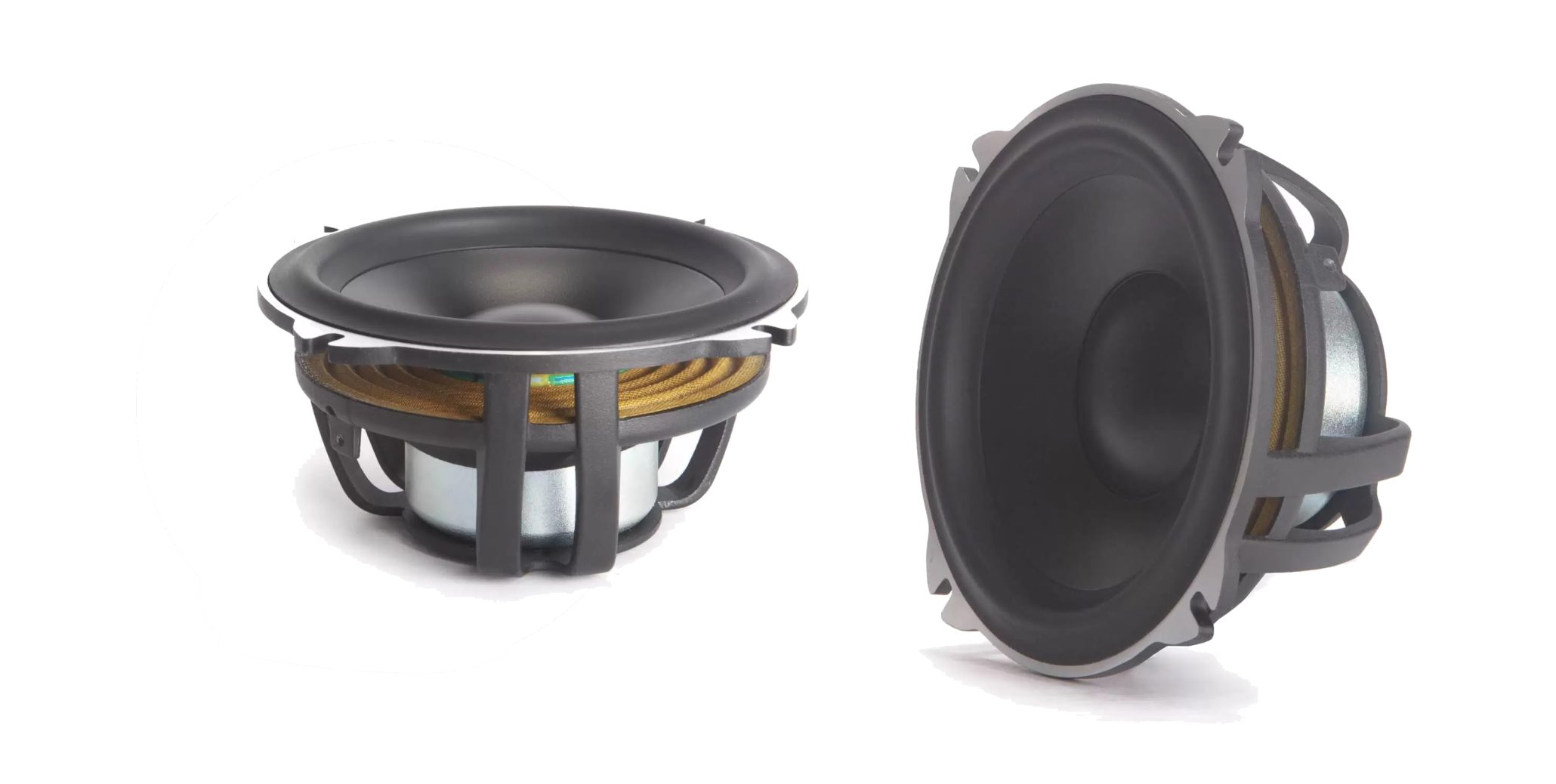

All of the Hybrid MW models incorporate Morel’s core technologies.  A 2 ¼” Aluminum Hexatech External Voice Coil wound on an aluminum former enables stable, efficient and linear piston-like movement which effectively reduces distortion levels.  Ideal for upgrading any existing system.

Info Centre

Reference Series HybridHybrid MT300Hybrid CDM700
MSRP (Aust.)$818$958
ConfigurationTweeterMidrange
Driver Size43 mm88 mm
Voice Coil Size28 mm54 mm
Frequency Resp.1600 - 25 kHz600 - 6 kHz
RMS Power130100
Peak Power350300
Sensitivity93 dB90 dB
Impedance6 ohm8 ohm
Grills IncludedYesYes
Reference Series HybridHybrid CDM700
MSRP (Aust.)$958
ConfigurationMidrange
Driver Size88 mm
Voice Coil Size54 mm
Frequency Resp.600 - 6 kHz
RMS Power100
Peak Power300
Sensitivity90 dB
Impedance8 ohm
Grills IncludedYes
Reference Series HybridHybrid MW4 MKIIHybrid MW5 MKIIHybrid MW6 MKII
MSRP (Aust.)$1,048$1,048$1,048
ConfigurationMidbassMidbassMidbass
Driver Size100 mm133 mm165 mm
Voice Coil Size54 mm54 mm54 mm
Frequency Resp.50 - 4200 kHz45 - 3000 kHz35 - 3000 kHz
RMS Power100120140
Peak Power300500600
Sensitivity89 dB90 dB91 dB
Impedance4 ohm4 ohm4 ohm
Grills IncludedYesYesYes

*Prices correct at 01/09/2025 and are subject to change.
