Sometimes the option of going fully active is just not possible and that is why Morel offers the newly designed MXT-280C and MXT-380C passive crossover networks. Specifically designed for the new Elate Carbon series, both offer audiophile-grade components and efficient electrical design to minimise coloration and distortion.
Both the MXT-280c and the MXT-380c have the option of Bi-wire / Bi-amplification as well as tweeter adjustment and mid adjustment on the 3-way MXT-380.

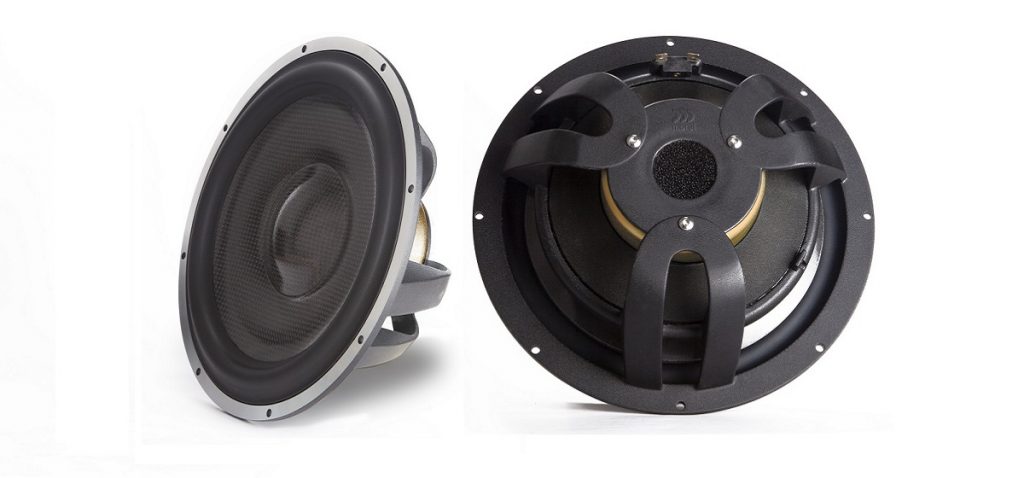

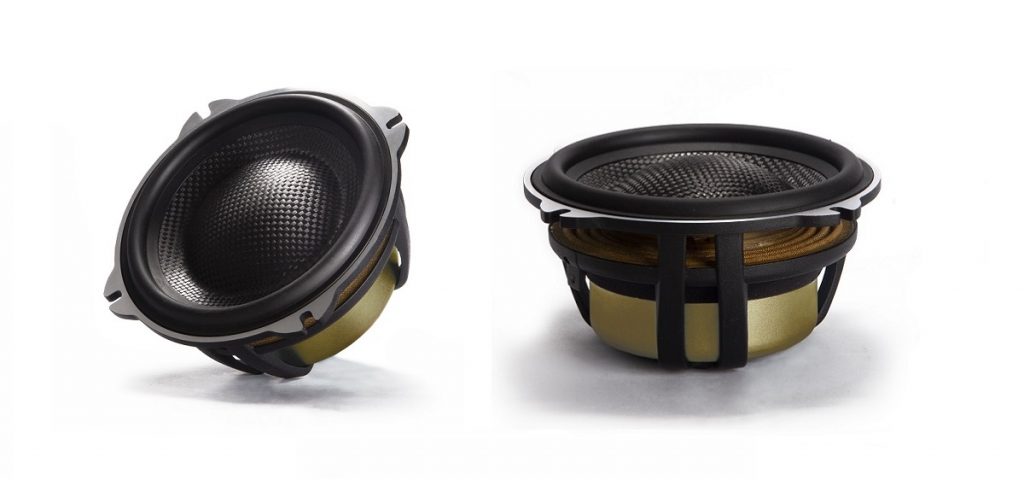

Elate Carbon Midbass
| Reference Series | MW5 | MW6 | MW9 |
| MSRP (Aust.) | $2,448 | $,2448 | $2,798 |
| Configuration | Woofer | Woofer | Woofer |
| RMS Power | 160 | 180 | 200 |
| Peak Power | 1000 | 1000 | 1000 |
| Nominal Impedance | 4 ohm | 4 ohm | 4 ohm |
| Sensitivity | 85 dB | 87 dB | 89 dB |
| Frequency Resp. | 40 - 5 kHz | 30 - 4 kHz | 25 - 3 kHz |
| Voice Coil Size | 75 mm | 75 mm | 75 mm |
| Grills Included | Yes | Yes | Yes |
*Prices correct at 01/09/2025 and are subject to change.
