MPD
MPD amplifiers offer an audio experience that’s truly extraordinary.
Experience the perfect harmony of power, size, and sound quality. The MPD4.70 boasts a robust 4x 70W @ 4 ohms, while the MPD4.100 delivers an impressive 4x 115W @ 4 ohms. If you’re looking for even more power, the monoblock MPD1.500 can produce a staggering 500W x 1 @ 2 ohms, allowing you to tailor your audio experience to your specific preferences.
MPD4.70 Compact Powerhouse Amplifier
Experience exceptional in-car audio with the Morel MPD 4.70 Amplifier. This compact yet powerful amplifier delivers 70W x 4 at 4 ohms and 100W x 4 at 2 ohms, with a bridging option of 200W x 2 at 4 ohms. Enjoy impressive sonic clarity with a frequency response of 20Hz to 30kHz and a Signal-to-Noise ratio over 93dB. Customize your sound with variable high-pass and low-pass crossovers (50-300Hz, 12dB slope) and maintain crystal clear music with a Total Harmonic Distortion (THD) below 0.2%. The built-in protection circuit ensures long-term reliability, making the MPD4.70 the perfect choice for audiophiles seeking high-quality sound in a compact package.

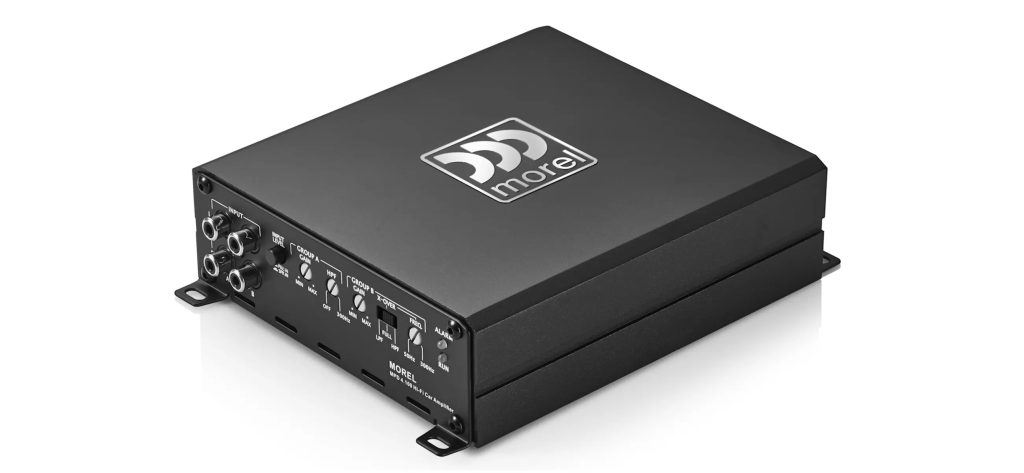

MPD4.100: Space-Saving Excellence
Elevate your driving experience with the Morel MPD 4.100 Amplifier, combining compact design with robust performance. It offers 115W x 4 at 4 ohms and 165W x 4 at 2 ohms, with a bridging output of 330W x 2 at 4 ohms. It features a wide frequency response of 20Hz to 30kHz and a Signal-to-Noise ratio over 93dB. Fine-tune your audio with variable high-pass and low-pass crossovers (50-300Hz, 12dB slope) and enjoy pure sound with a Total Harmonic Distortion (THD) below 0.2%. The advanced protection circuit ensures safety and durability, making the MPD4.100 ideal for car audio enthusiasts who demand both quality and space efficiency.
MPD 1.350
Details coming soon.
Key Features Across All Morel MPD Amplifiers:
• Impressive Clarity: Wide frequency response of 20Hz to 30kHz and Signal-to-Noise ratio over 93dB ensure superior audio quality.
• Compact and Powerful: Space-saving designs with robust power outputs suitable for any vehicle. These amplifiers can be discreetly tucked away, yet they deliver remarkable power without consuming valuable space.
• Customizable Sound: Variable crossovers for personalized audio tuning, enhancing your in-car audio experience.
• Built-in Protection: Advanced circuits to safeguard against overcurrent, short circuits, thermal issues, and internal errors, ensuring long-term reliability.
• MPS-HL high-low level adaptor – All MPD Amplifiers seamlessly pair with the MPS-HL high-low level adaptor (available separately), equipped with a 50-ohm load resistor to keep load-sensing factory amplifiers active, simplifying your installation process.
Specifications
| Reference Series | MPD 4.70 | MPD 4.100 | MPD 1.500 |
| Power 4 ohm RMS | 4 x 70 | 4 x 115 | 1 x 350 |
| Power 2 ohm RMS | 4 x 100 | 4 x 165 | 1 x 550 |
| Bridged 4 ohm RMS | 2 ×200 | 2 x 330 | N/A |
| Class | D | D | D |
| THD+N | >0.2% | >0.2% | >0.3% |
| Freq. Resp. Main | 20-30 kHz | 20-30 kHz | 10-220 kHz |
| Channel Seperation | 64 dB | N/A | 64 dB |
| S/N Ratio (Rated Power, A Rated) | >93 dB | >93 dB | >98 dB |
| Channel Separation | >50 dB | >50 dB | N/A |
| Filters Main (Both 4 Channel) | HPF OFF-300Hz for Group A | LPF 40~220Hz | |
| LPF/HPF 50Hz-300Hz for Group B | Subsonic OFF~50Hz | ||
| Crossover Slope | 12 dB/Octave | 12 dB/Octave | 12 dB/Octave |
| Sub Level Control | No | Yes 0-20dB | Yes 0-20dB |
| Channel Input Mode | Yes 2 or 4 | No | Yes 2/4 or 6 |
| Sub Sonic Filter | No | Off/25/35Hz | Off/25/35 Hz |
| Input Voltage Low (Pre) | 0.35 - 3.5V | 0.35 - 3.5V | 0.35-3.5V |
| Input Voltage High (Speaker) | 0.7 - 7.7V | 0.7 - 7.7V | |
| Input HL Adaptor | Sold Seperate | Sold Seperate | Sold Seperate |
| Fuse within 400mm of Battery | 50A | 60A | 60A |
| Size H x W x L (mm) | 48 x 148 x 195.5 | 48 x 148 x 203.5 | 48 x 148 x 181.5 |
