Official Images Coming Soon

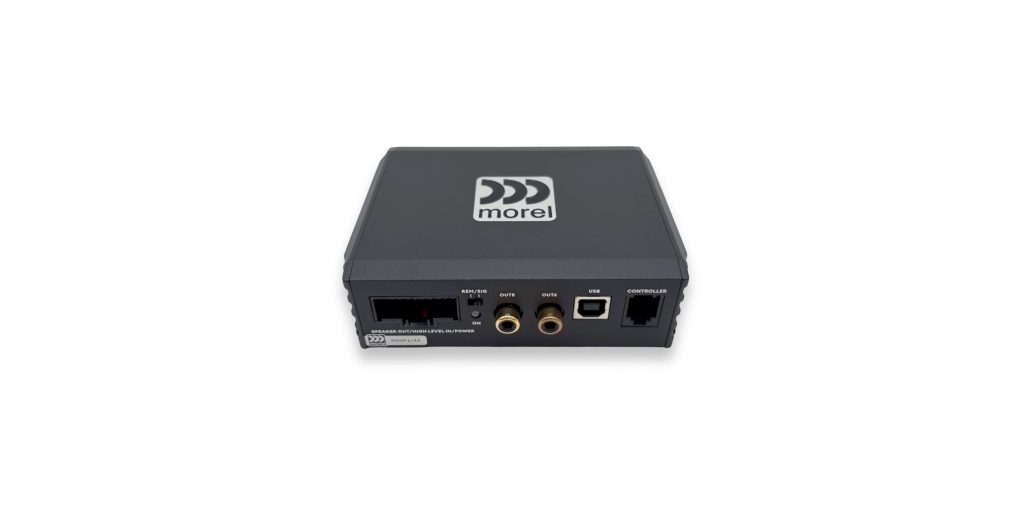

MDSP 6/4A $TBA*

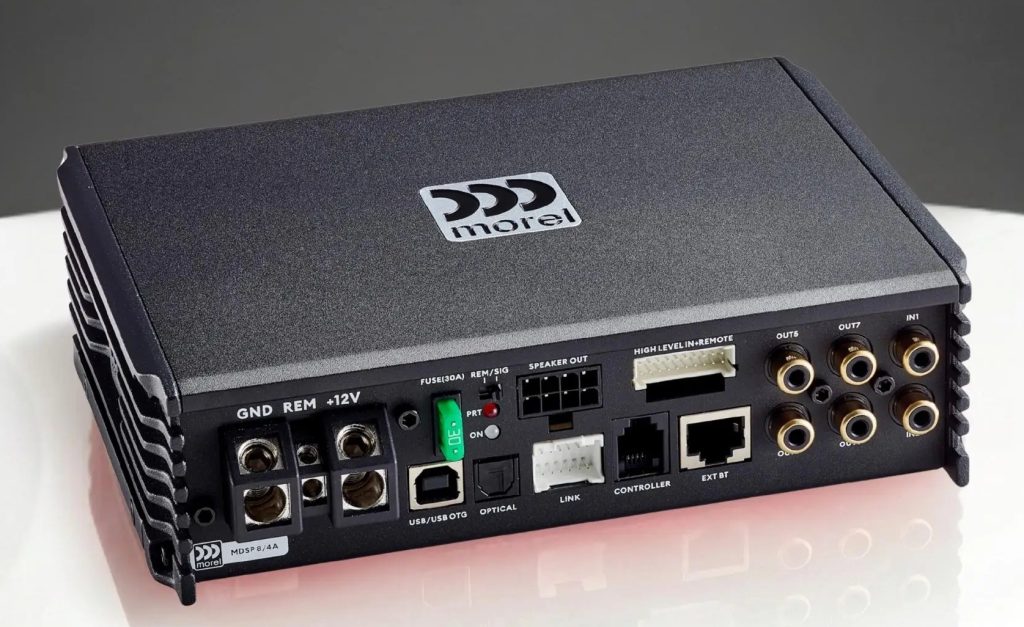

MDSP 8/4A $TBA*
MDSP 8/6A $TBA*
MDSP 8/4A $TBA*
*Australian MSRP

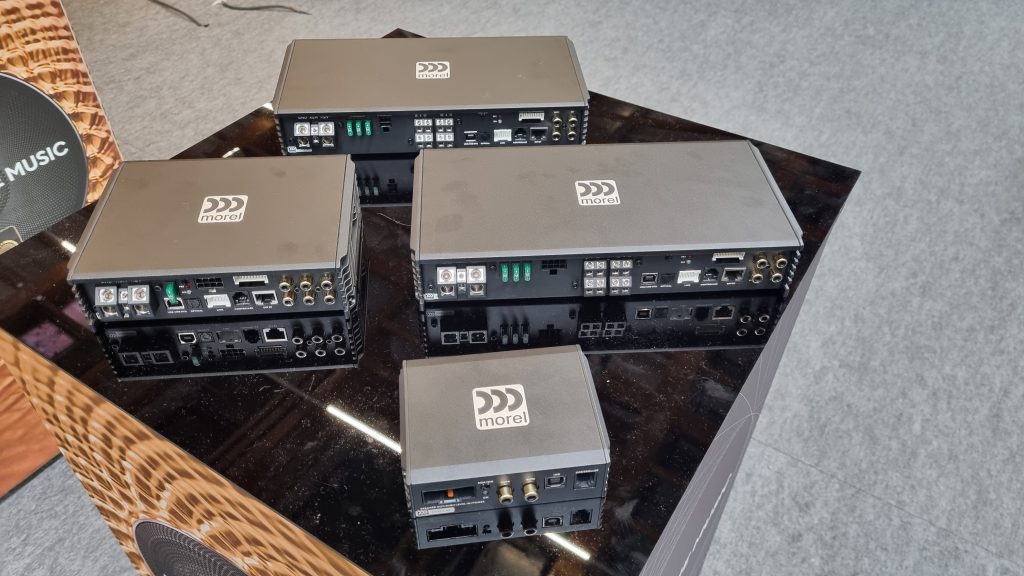

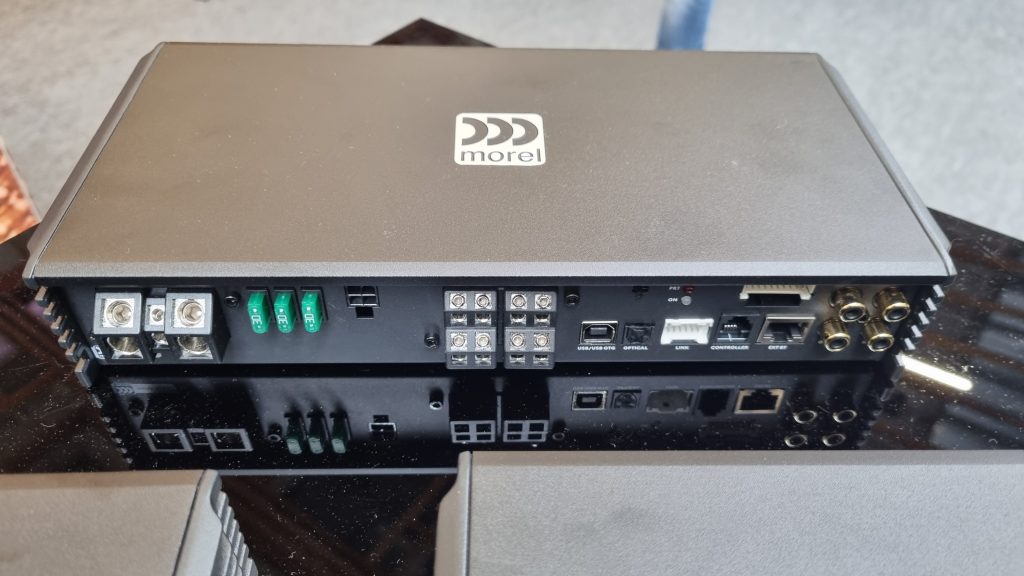

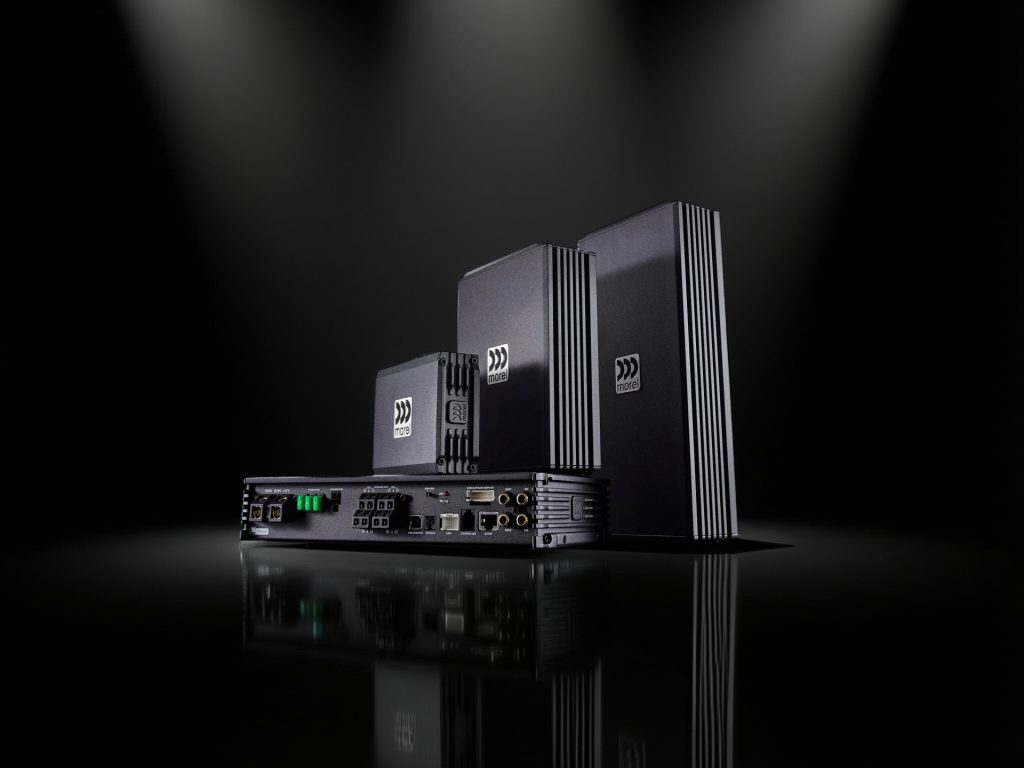

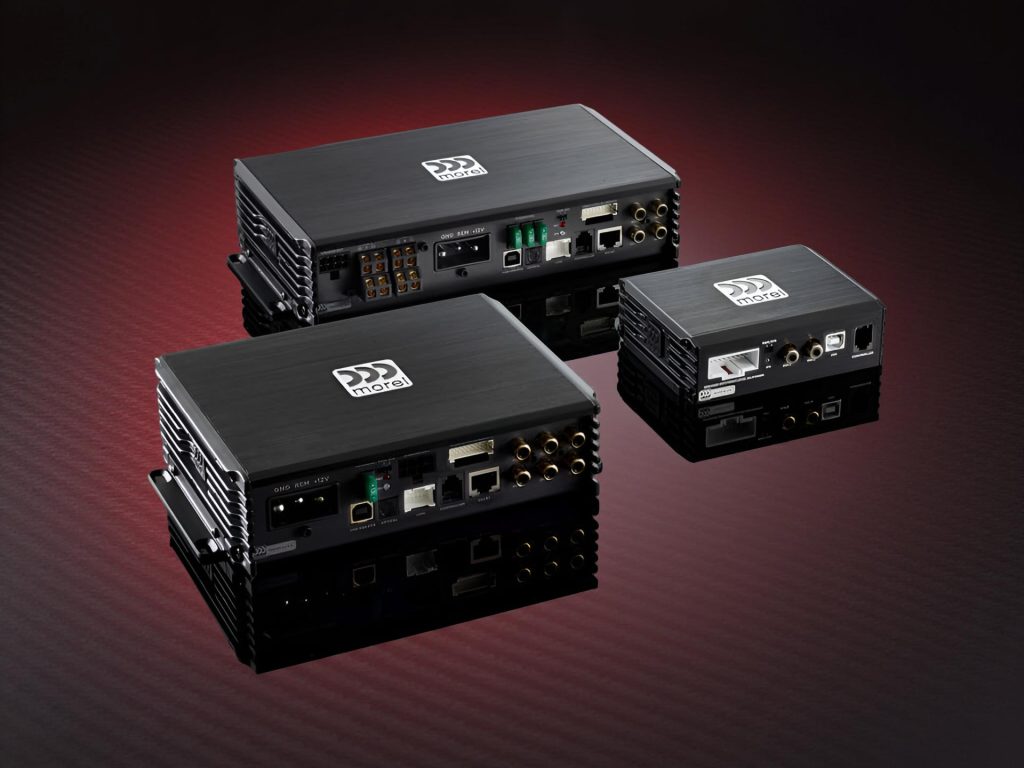

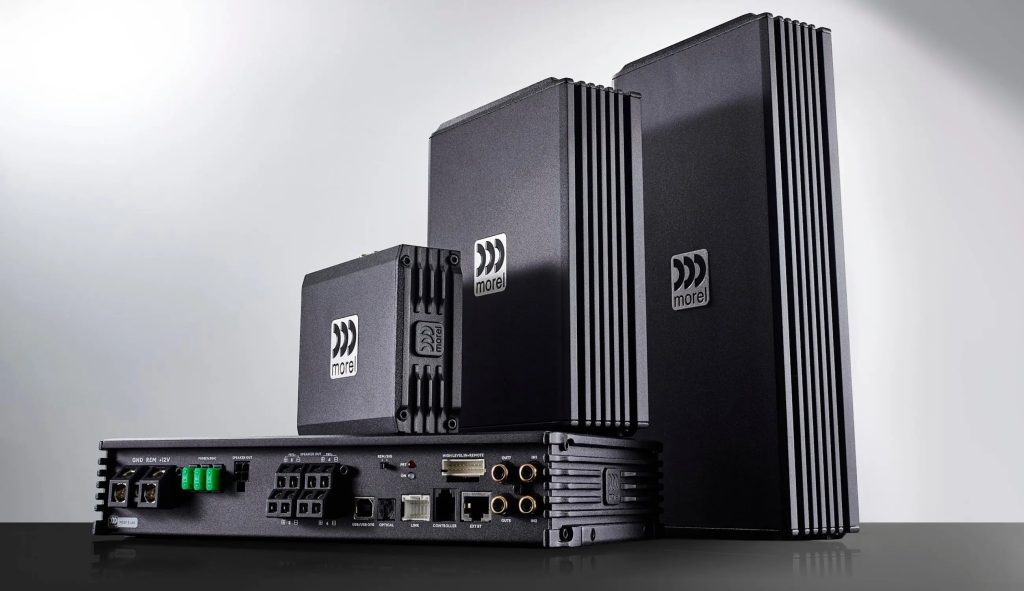

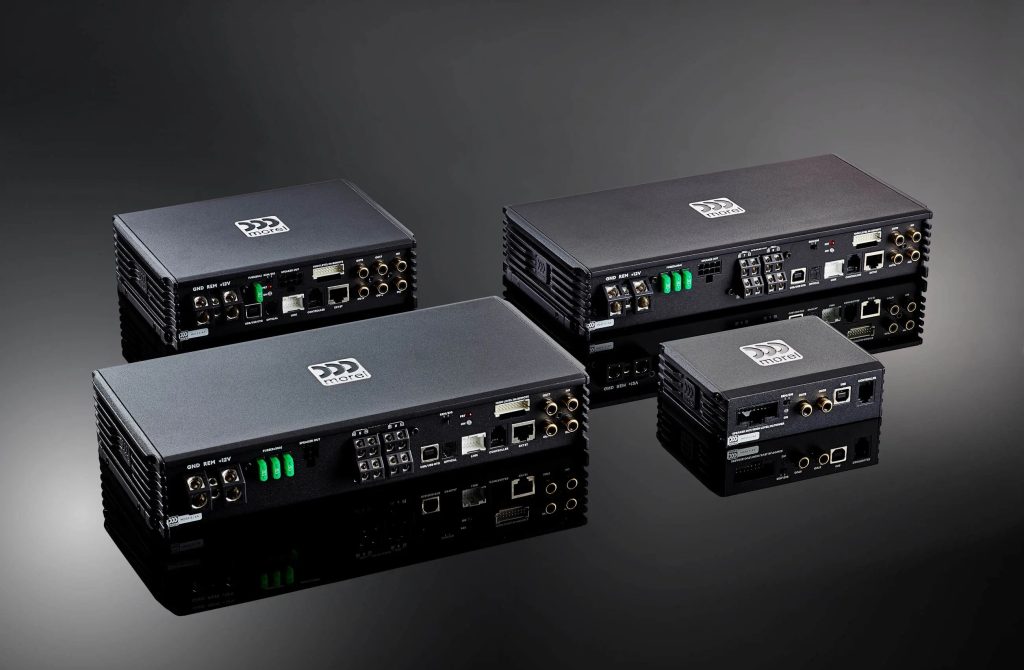

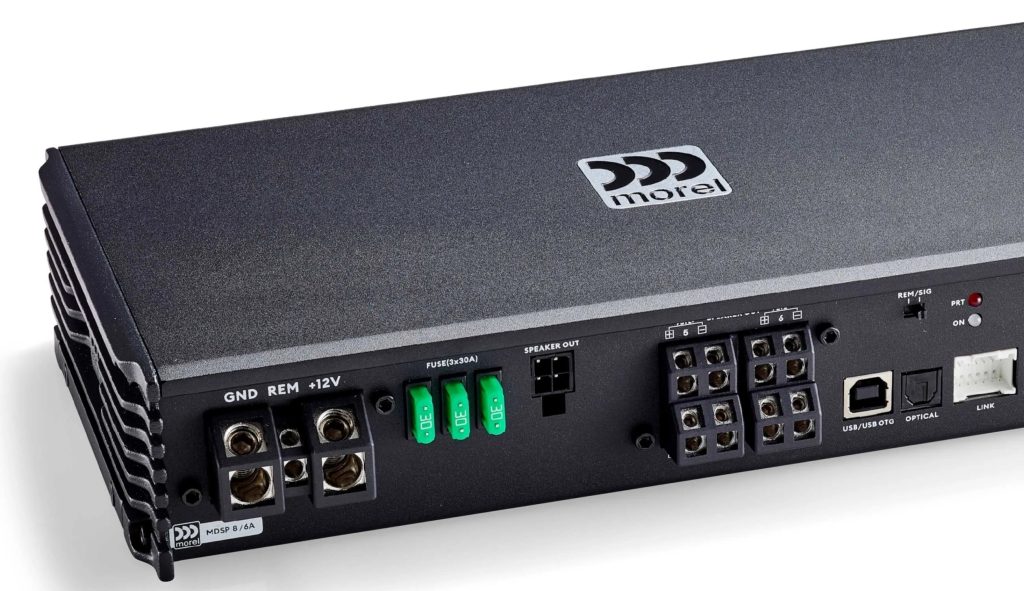

MDSP DSP AMPLIFIERS
Welcome to the next chapter in Morel’s high-fidelity legacy.
Designed to meet the demands of modern vehicle integration, the MDSP amplifier series delivers unmatched performance, flexibility and sound quality in a remarkably compact design. Whether you’re upgrading on OEM system or building a high-end custom system, MDSP amplifiers provide the tools and power to get the job done right.
At the heart of every MDSP amplifier is Morel’s signature approach to sound authentic, musical and uncompromising engine. Erring engineered with best. In class power output models offer up to 80W/RMS x 4 + 165W/RMS x 4 delivering clean powerful output to drive any system with confidence.
Featuring high resolution DSP with parametric and graphic EQ, fully adjustable crossovers and input / output EQ per channel. The MDSP line ensures seamless system-wide fine tuning. Installation is streamlined with high voltage speaker. Level inputs, signal summing and Morel’s Speaker Load Assurance Module (SLAM), which keep factory amplifiers stable when integrating with OEM systems.
Additional. Features like start-stop compatibility, automatic sauce switching and TuneLink for multi-amp tuning from a single device makes set up efficient and flexible.
Bluetooth streaming and DRC compatibility provide users with a complete control at their fingertips.
Compact yet powerful MDSP amplifiers embody morals renowned sound quality and reliability built for installers trusted. By professionals and loved by music enthusiasts.
Specifications
MDSP DSP AMPLIFIERS | MDSP 6/4A | MDSP 8/4A | MDSP 8/6A | MDSP 10/8A |
RMS Power 4-ohm | 4 x 25 | 4 x 80 | 4 x 80 | 4 x 80 |
2 x 165 | 4 x 165 | |||
Total Channels | 4 | 4 | 6 | 8 |
Bridgeable | No | No | Yes | Yes |

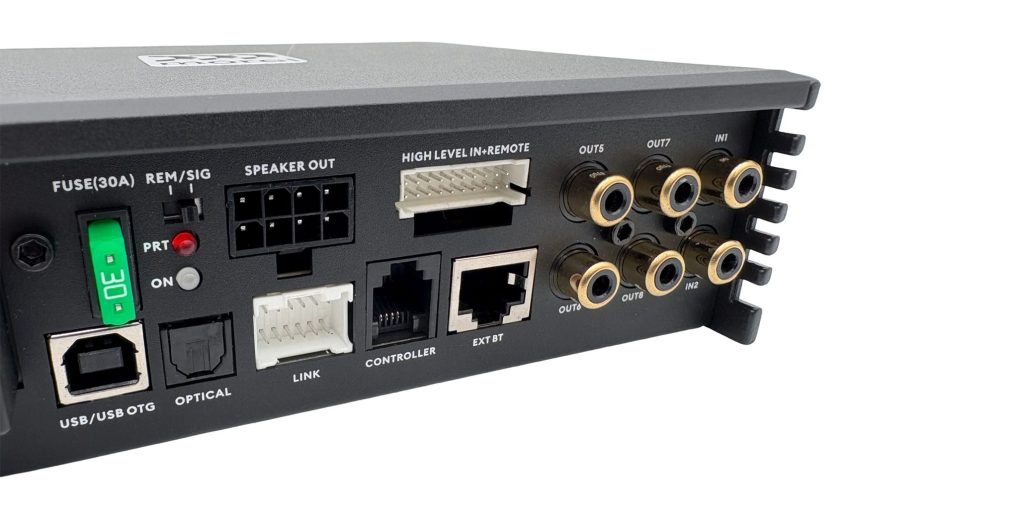

INPUTS | ||||
Hi Level (Speaker) | 4 | 4 | 8 | 8 |
Low Level (RCA) | 2 | 2 | 2 | 2 |
Optical | - | - | 1 | 1 |
USB OTG | - | - | 1 | 1 |
Bluetooth | Built In | Built In | Optional | Optional |

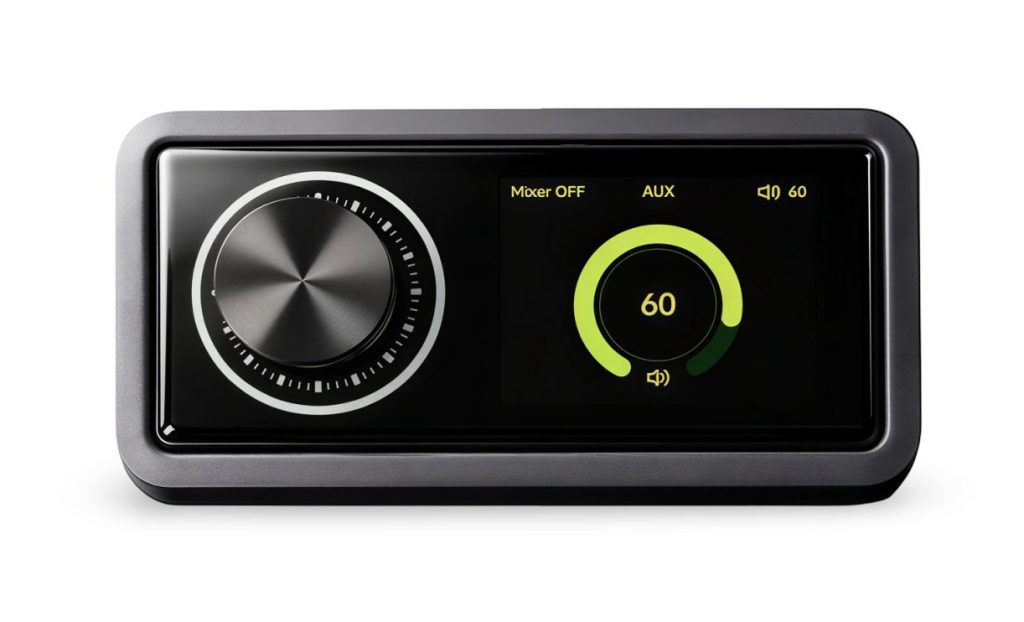

DRC Connect (Optional Controller) | Yes | Yes | Yes | Yes |
OUTPUTS | ||||
Amplified | 4 | 4 | 6 | 8 |
Low Level RCA | 2 Ch. 2V | 2 Ch. 2V | 2 Ch. 2V | 2 Ch. 2V |
SPECIFICATIONS | ||||
Sampling Rate | 24 Bit / 96 kHz | 24 Bit / 96 kHz | 24 Bit / 96 kHz | 24 Bit / 96 kHz |
THD+N | <0.2% | <0.2% | <0.03% | <0.03% |
Frequency Resp. | 20-20kHz | 20-20kHz | 20-20kHz | 20-20kHz |
S/N Ratio (A-weighted) | >96 dB | >96 dB | >98 dB | >98 dB |
DIMENSIONS | ||||
Height in mm | 35 | 35 | 50.25 | 50.25 |
Width in mm | 90 | 90 | 136 | 136 |
Length in mm | 116 | 276 | 276 | |
*Prices correct at 21/05/2025 and are subject to change.
