Reference Series
Elate Carbon Pro
The Elate Carbon Pro is the purest evolution of our iconic Elate line, continuing to push the boundaries of automotive audio performance. With refined aesthetics, revamped construction, and Morel’s storied handcrafted essence, we’re taking the Elate series higher than it’s ever been before.
The new speaker systems maintain the Elate’s high power, high fidelity tradition, yet with massive upgrades in design and materials. We’ve equipped it with a triple-layered carbon-fiber/Rohacell cone for midrange and woofers, titanium voice coil former, our iconic Lotus grills and a brushed aluminum trim. The Elate Carbon Pro is highlighted by the Elate Alto cavity-back tweeter, employing a high-resolution design borrowed from the Supremo Piccolo’s architecture.
These upgrades give the new systems a leap forward in performance. Alongside a widened, three-dimensional soundstage with greater frequency response, the Elate Carbon Pro’s ability to produce exquisite details, at any volume level, is simply breathtaking. At Morel, we always focus on presenting sound as the artist intended. With a neutral balance and immersive depth, the Elate Carbon Pro brings listeners closer to the artist.
From the outset, we developed the Elate Carbon Pro to be more than just a new set of speakers – they were designed to provide Morel customers an immersive musical experience that will leave you breathless. No other speaker system fully represents high power, high fidelity like the new Elate Carbon Pro. Once you’ve experienced them, we’re confident you’ll agree.
Info Centre

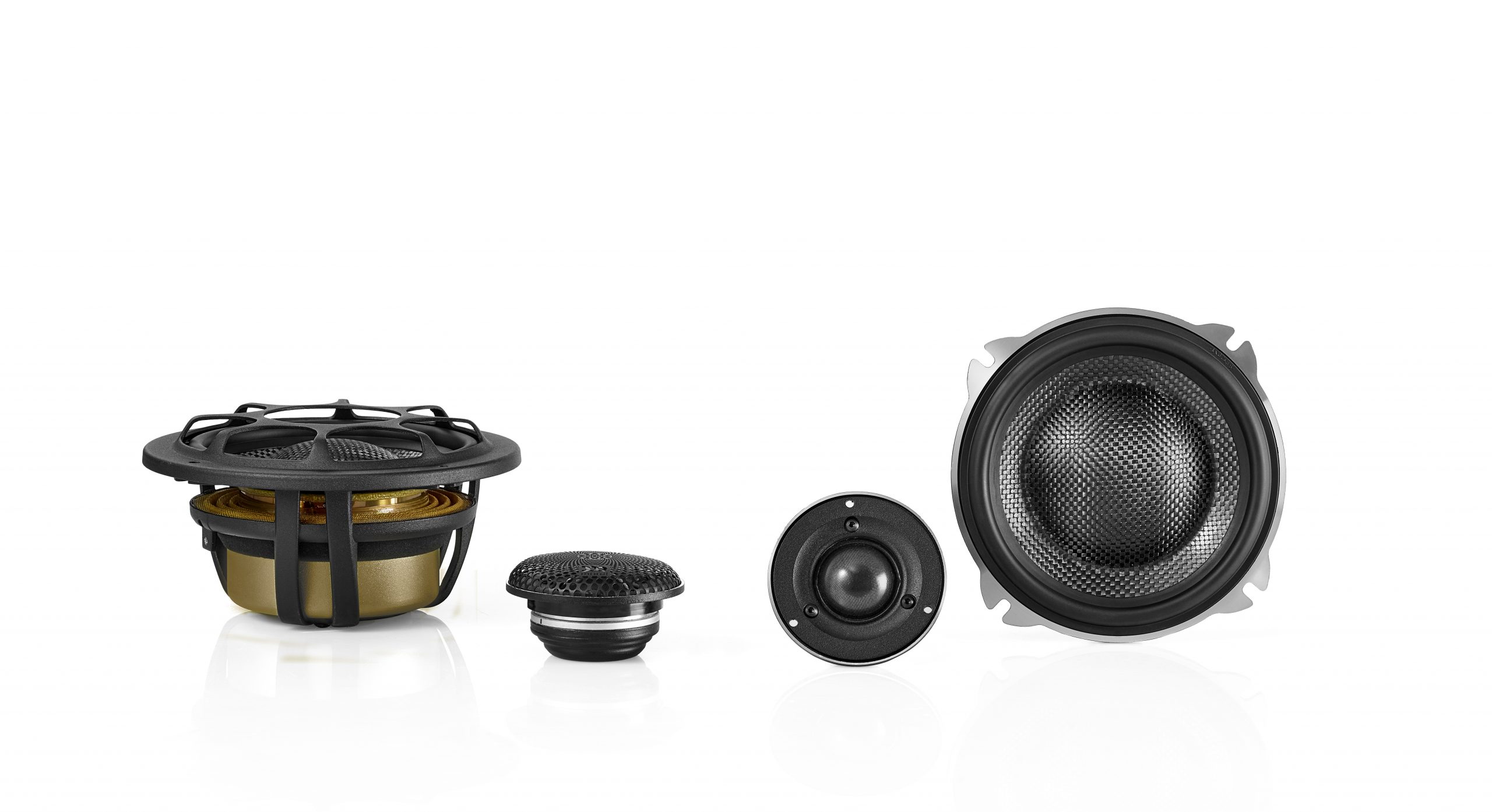

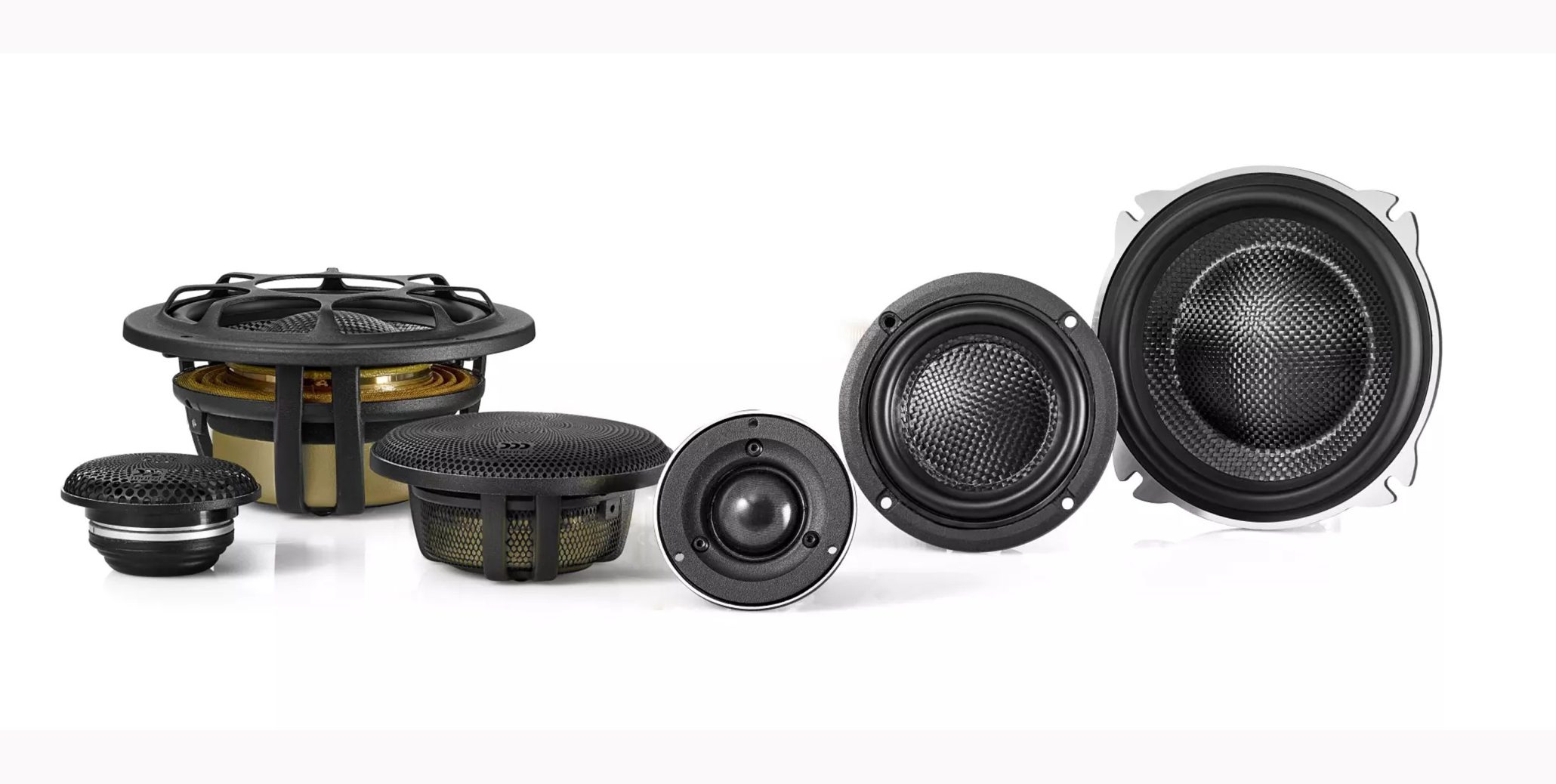

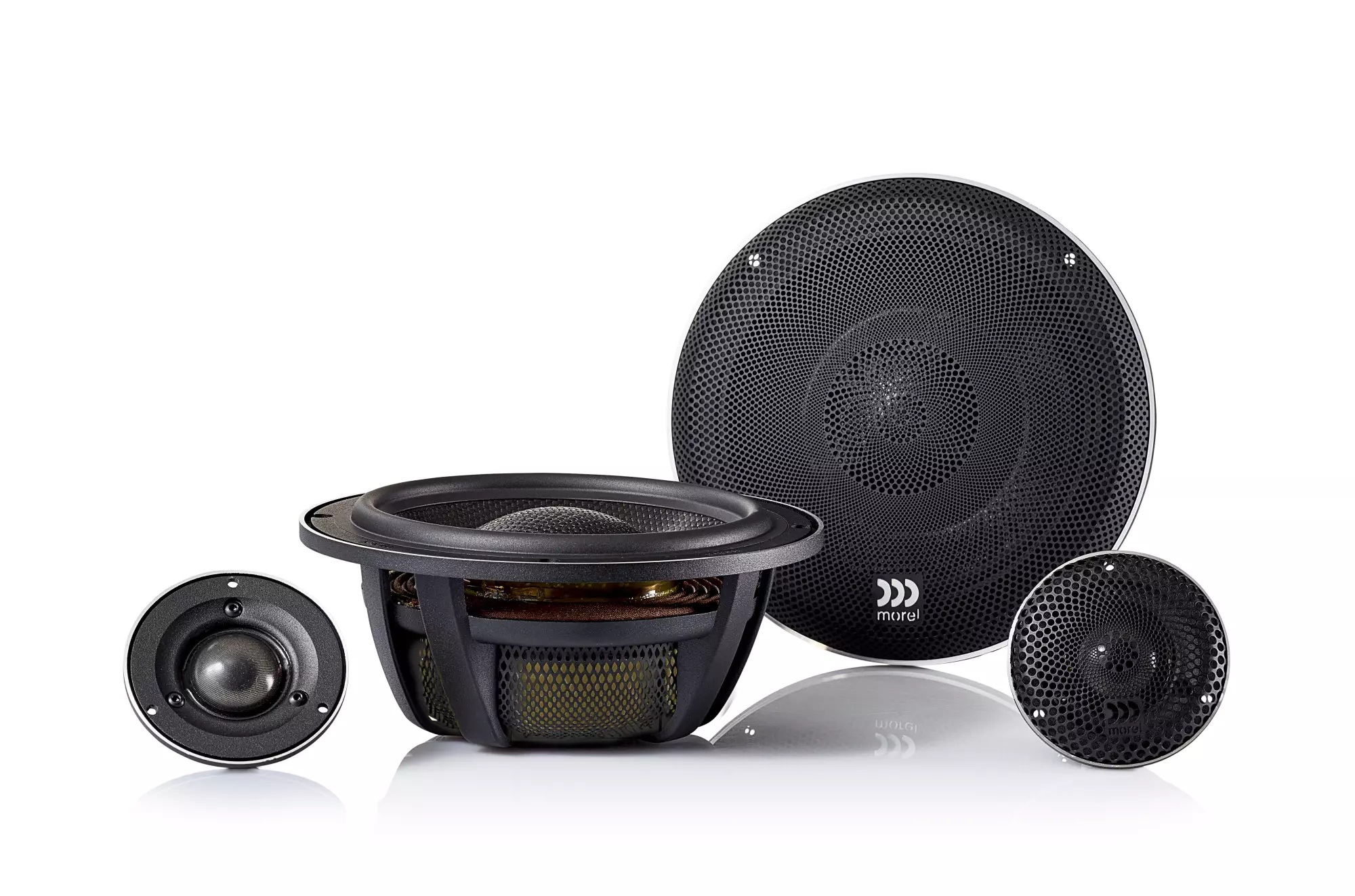

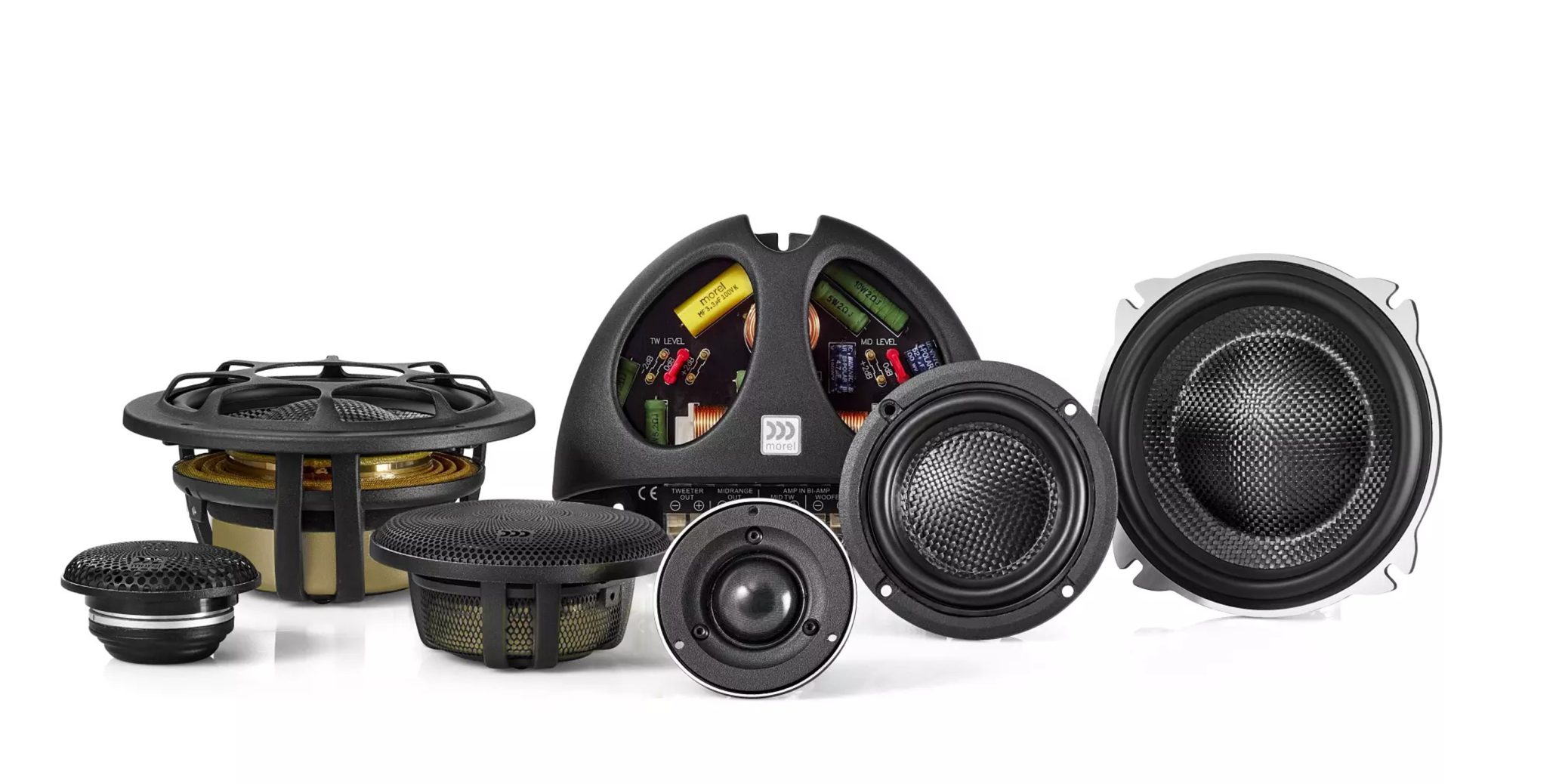

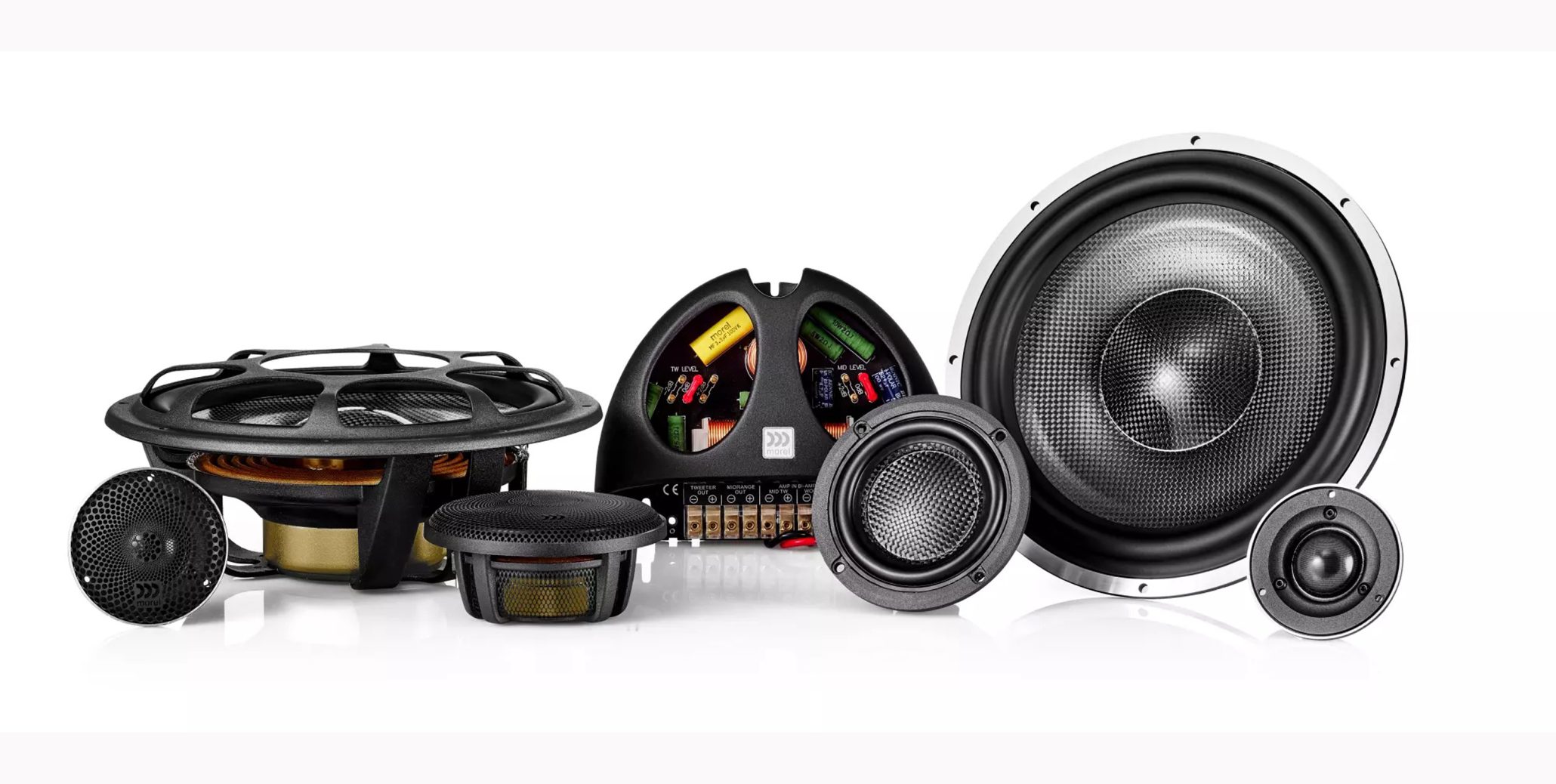

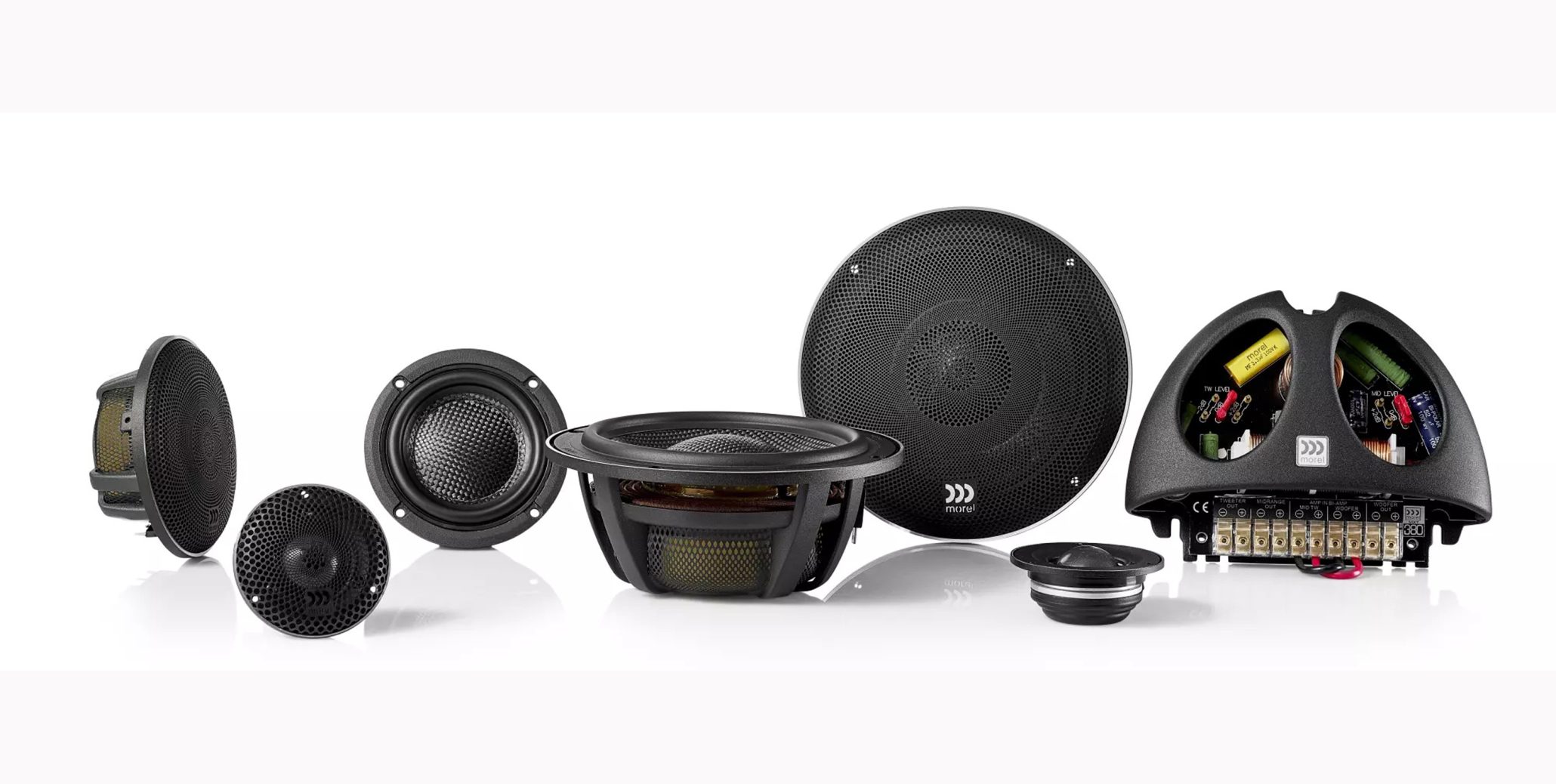

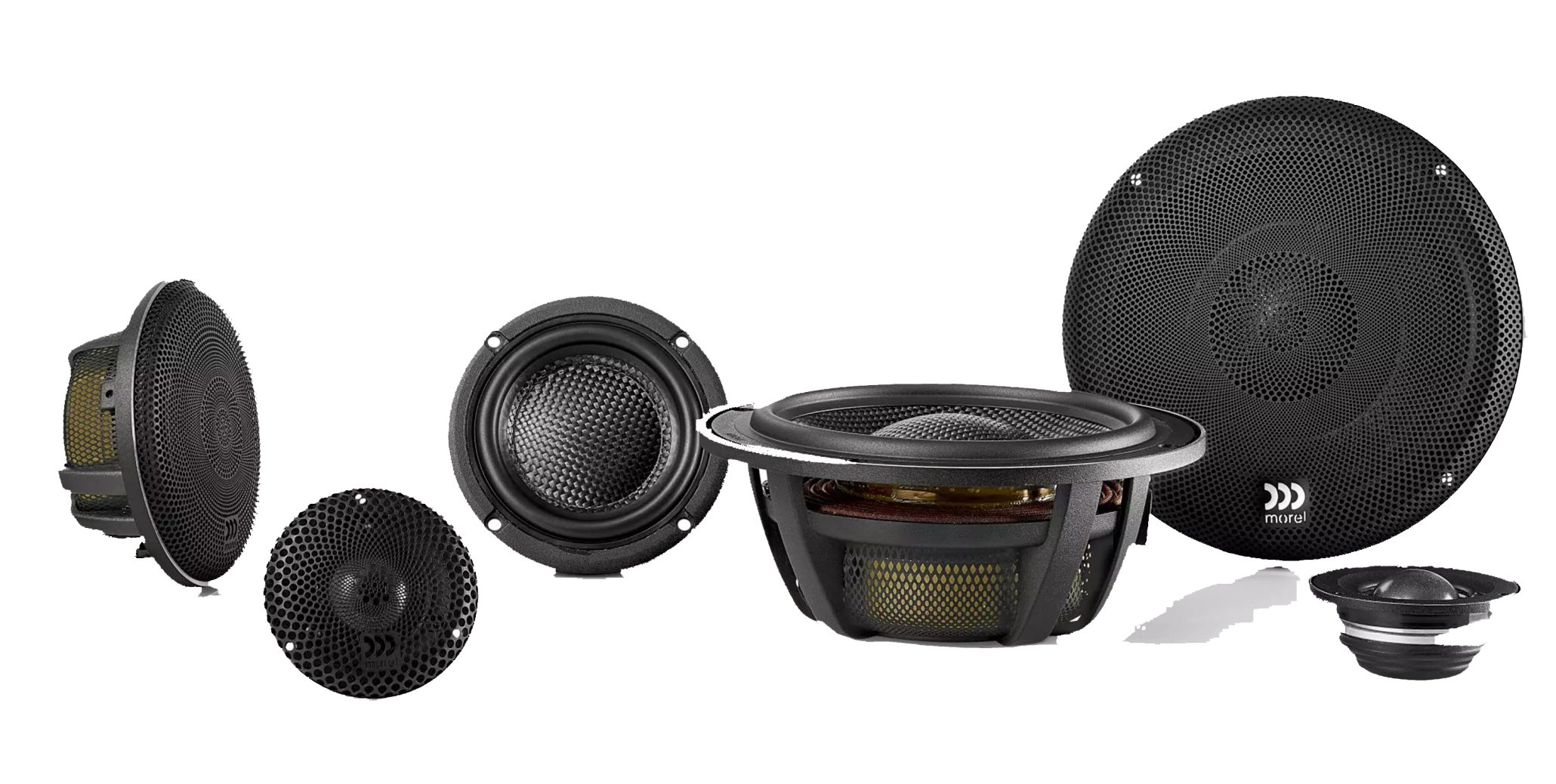

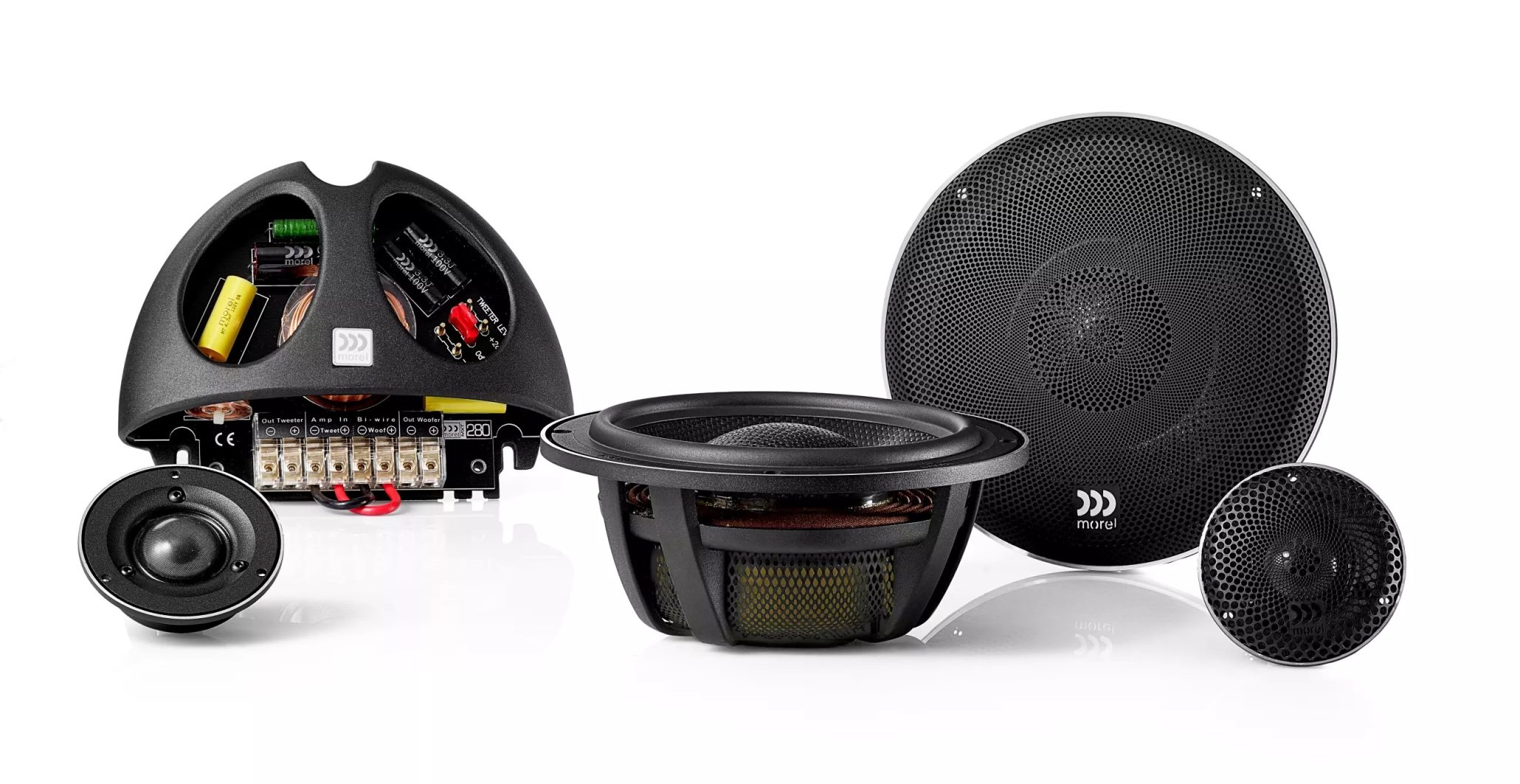

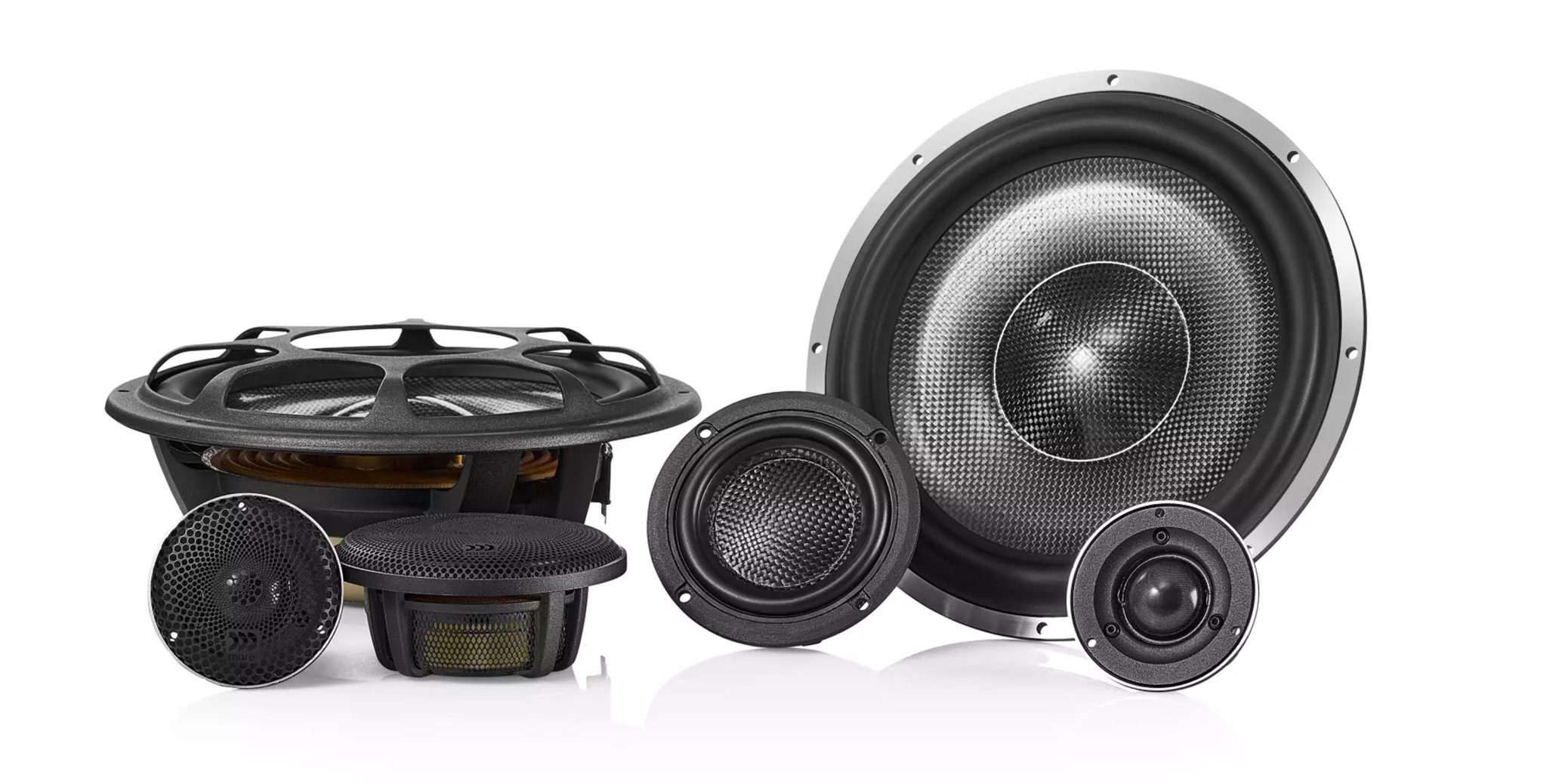

Reference Series | Elate Carbon Pro 52A | Elate Carbon Pro 62A | Elate Carbon Pro 53A | Elate Carbon Pro 63A | Elate Carbon Pro 93A |
MSRP (Aust.) | $4,366 | $4,366 | $6,814 | $6,814 | $7,164 |
Midbass Size | 133 mm | 165 mm | 133 mm | 165 mm | 228 mm |
Midbass VC | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
MM3 Midrange | - | - | 89 mm | 89 mm | 89 mm |
Midrange VC | - | - | 54 mm | 54 mm | 54 mm |
Alto Tweeter | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm |
Tweeter VC | 28 mm | 28 mm | 28 mm | 28 mm | 28 mm |
System Freq. Resp. | 40 Hz - 25 kHz | 30 Hz - 25 kHz | 40 Hz - 25 kHz | 30 Hz - 25 kHz | 25 Hz - 25 kHz |
Crossover - Optional Extra | MTX 280C | MTX 280C | MTX 380C | MTX 380C | MTX 380C |
RMS Power | 160 | 180 | 160 | 180 | 200 |
Peak Power | 1000 | 1000 | 1000 | 1000 | 1000 |
Sensitivity dB | 86 | 87 | 86 | 87 | 89 |
Impedance | 4 ohm | 4 ohm | 4 ohm | 4 ohm | 4 ohm |
Grills Included | Yes | Yes | Yes | Yes | Yes |
Related Products
*Prices correct at 01/09/2025 and are subject to change.
