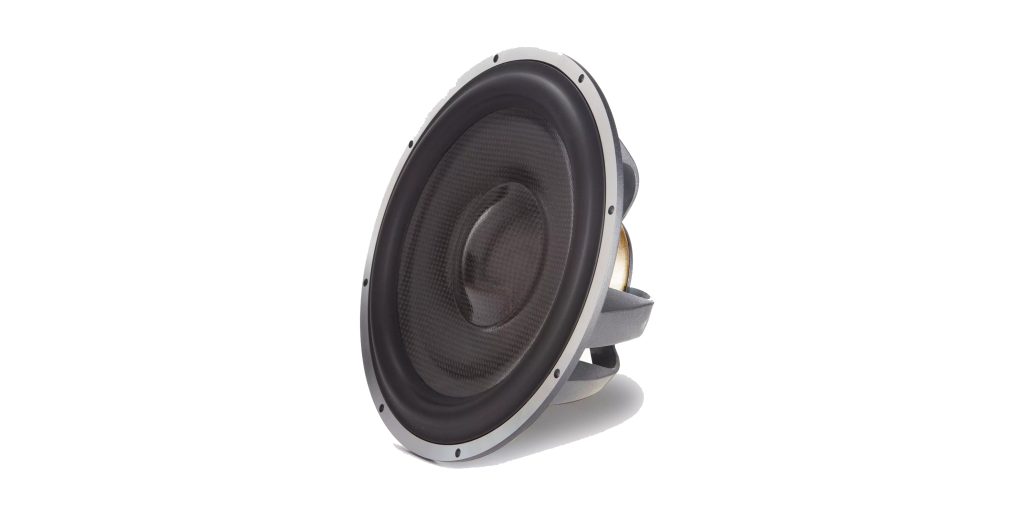

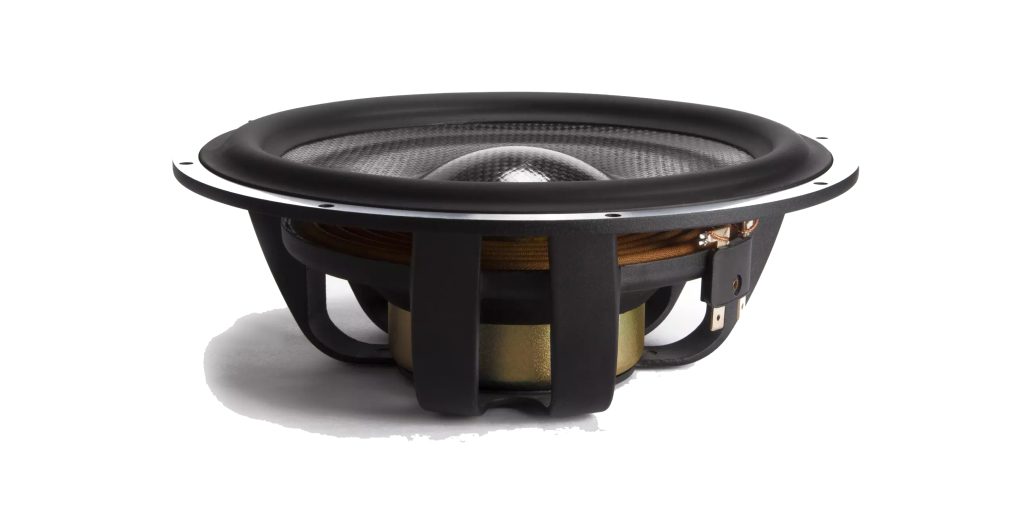

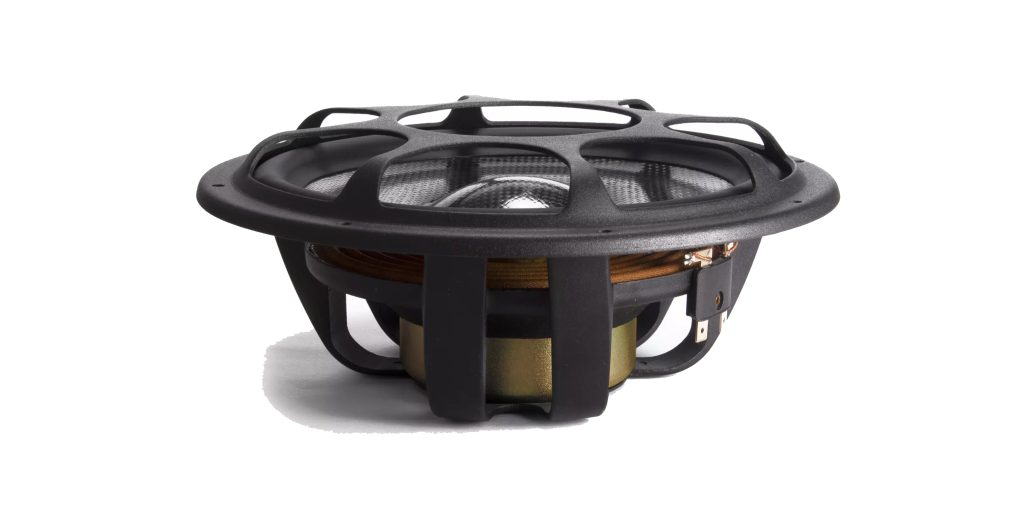

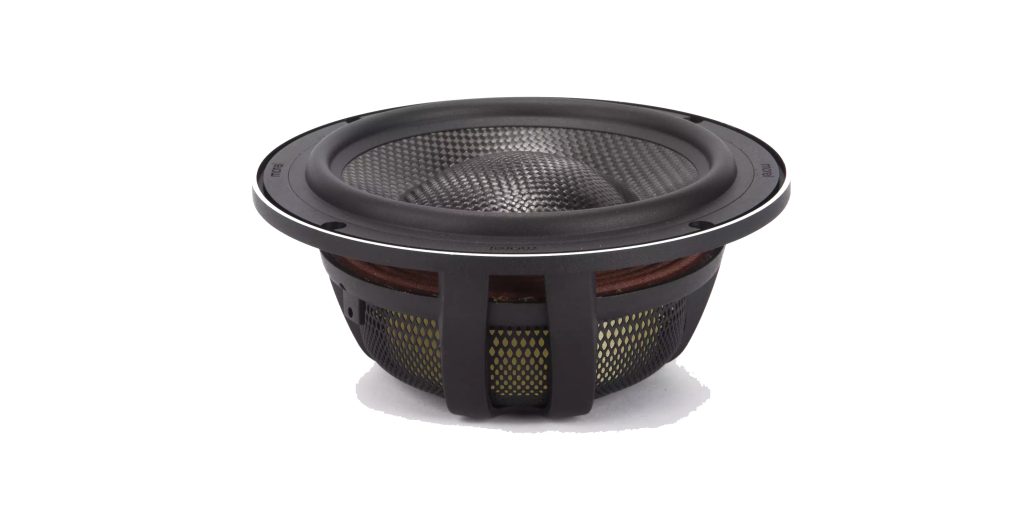

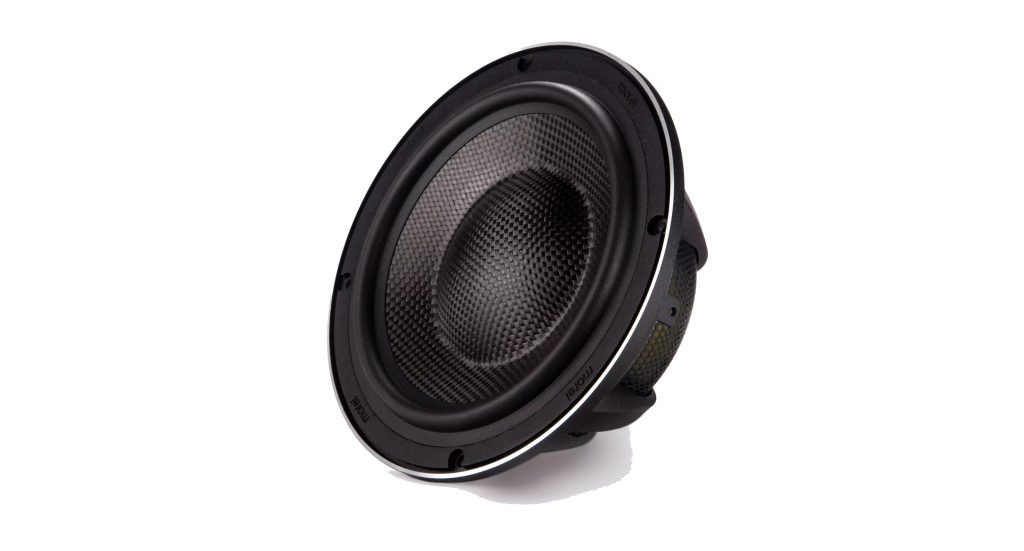

Elate Carbon Midbass

Not all drivers are created equal, and the visually inspiring Elate Carbon woofers were developed with next-level performance in mind. These new drivers get their Carbon moniker from their triple-layer cones from which they are derived, consisting of two layers of carbon fiber sandwiching a Rohacell foam core.

These proprietary cones were developed to give them incredible stiffness, high damping and light weight—the trifecta for cone performance.

Paired with a large 3-inch diameter Hexatech aluminum voice coil, titanium former, and Morel’s EVC motor technology, the Elate Carbon achieves remarkable control and low distortion which translates to highly transparent and bass-rich sound reproduction.

Info Centre



Reference SeriesMW5MW6MW9
MSRP (Aust.)$2,448$,2448$2,798
ConfigurationWooferWooferWoofer
RMS Power160180200
Peak Power100010001000
Nominal Impedance4 ohm4 ohm4 ohm
Sensitivity85 dB87 dB89 dB
Frequency Resp.40 - 5 kHz30 - 4 kHz25 - 3 kHz
Voice Coil Size75 mm75 mm75 mm
Grills IncludedYesYesYes

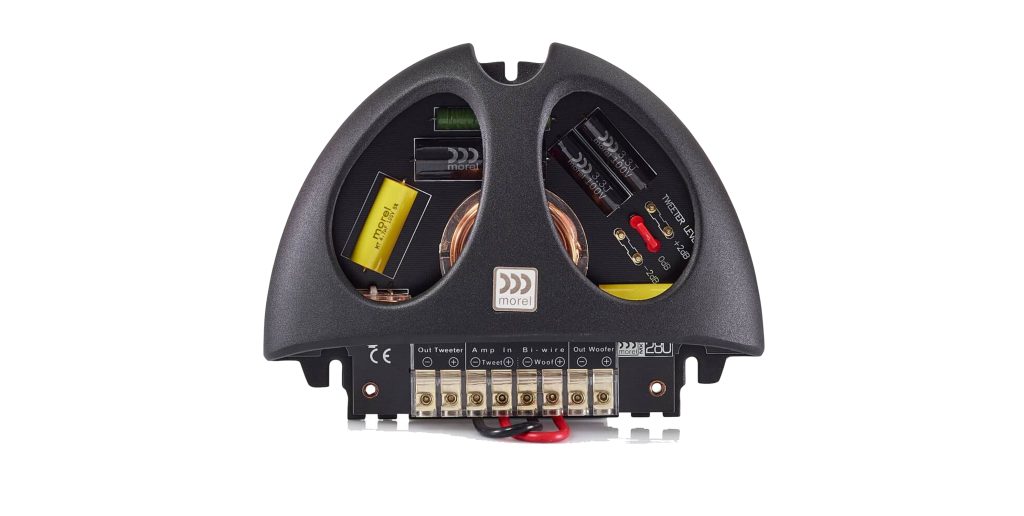

MXT-280C Crossover

Optional 2-way Crossover to suit
Elate Carbon Pro & Elate Carbon.

Acudamp 227.8

Acoustical Treatment

Acudamp SPK6

Essential for proper
Installation

*Prices correct at 01/09/2025 and are subject to change.
