Intergration BMW

The BMW Integration series component and coaxial / Integra systems was designed for music lovers wanting to upgrade their original BMW speaker system with a dynamic, Hi-Fidelity sound.

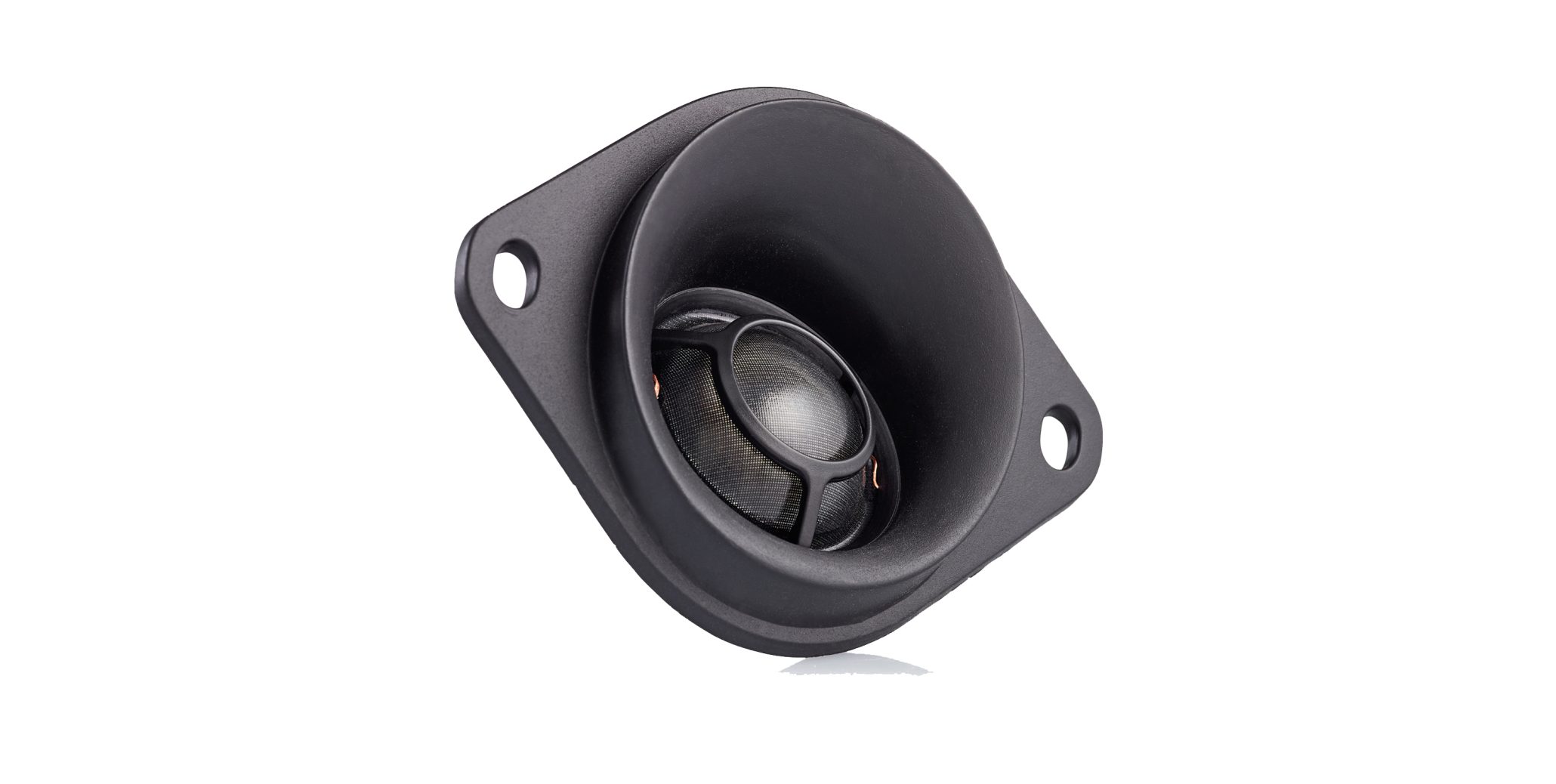

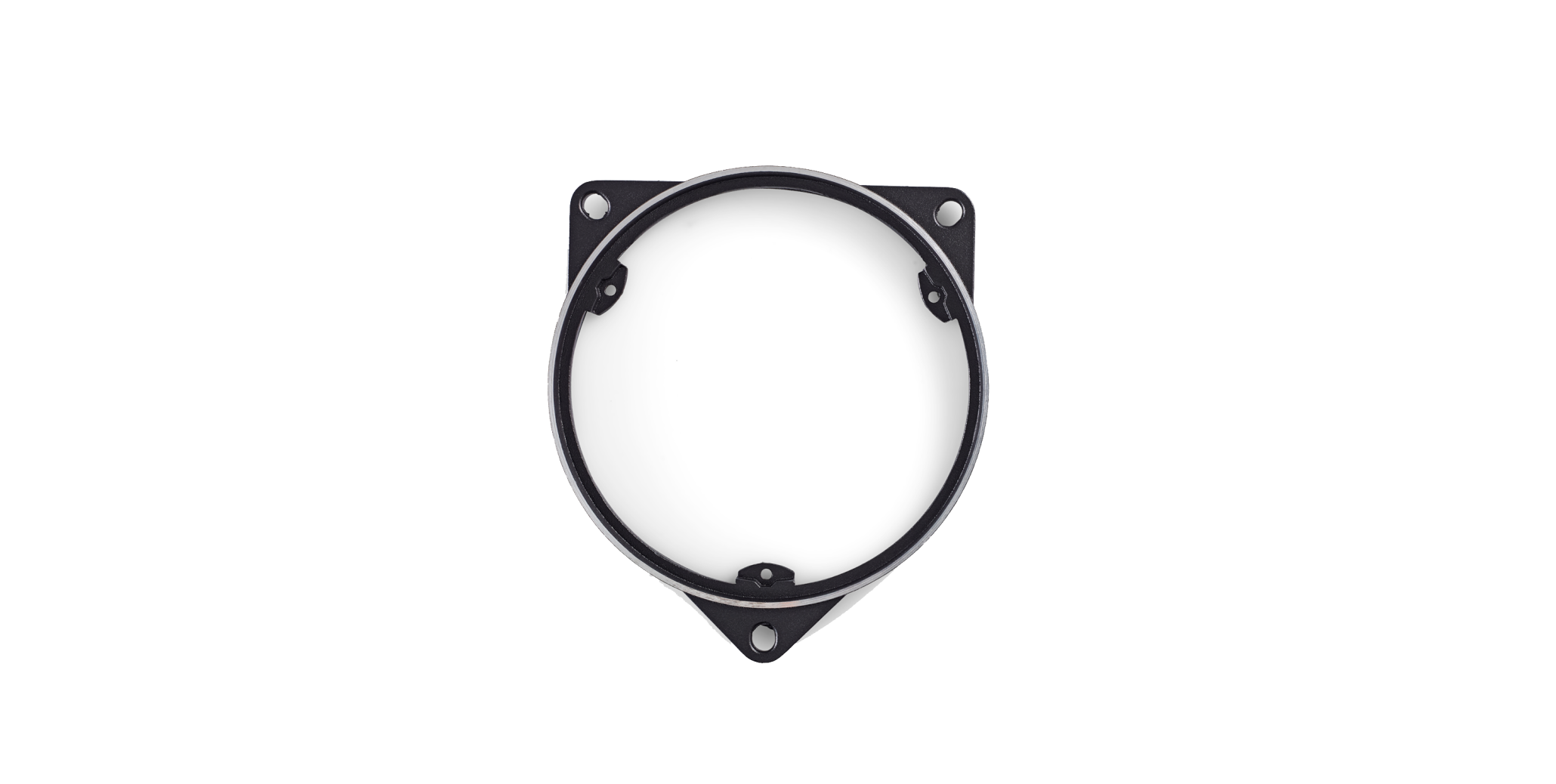

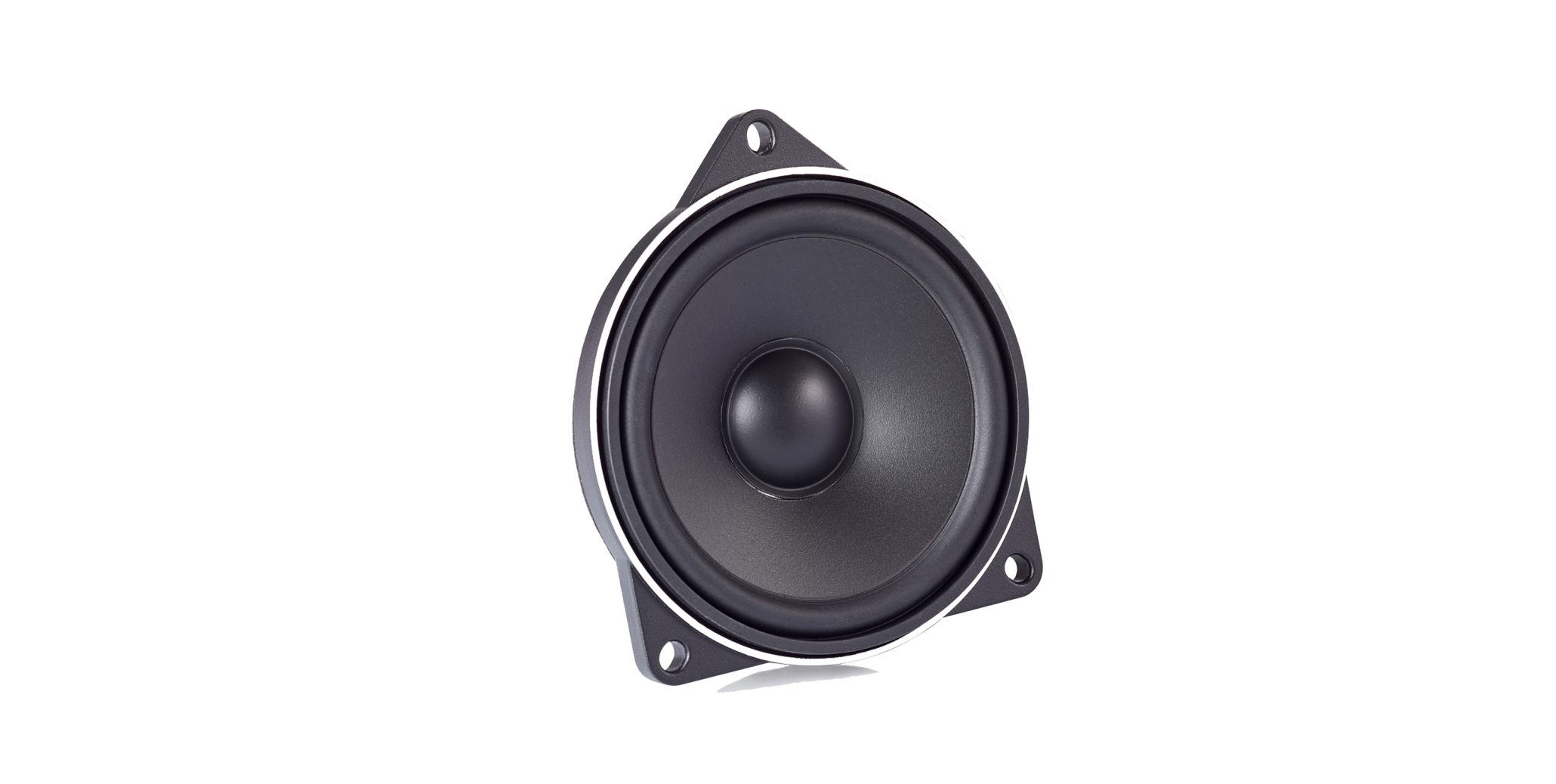

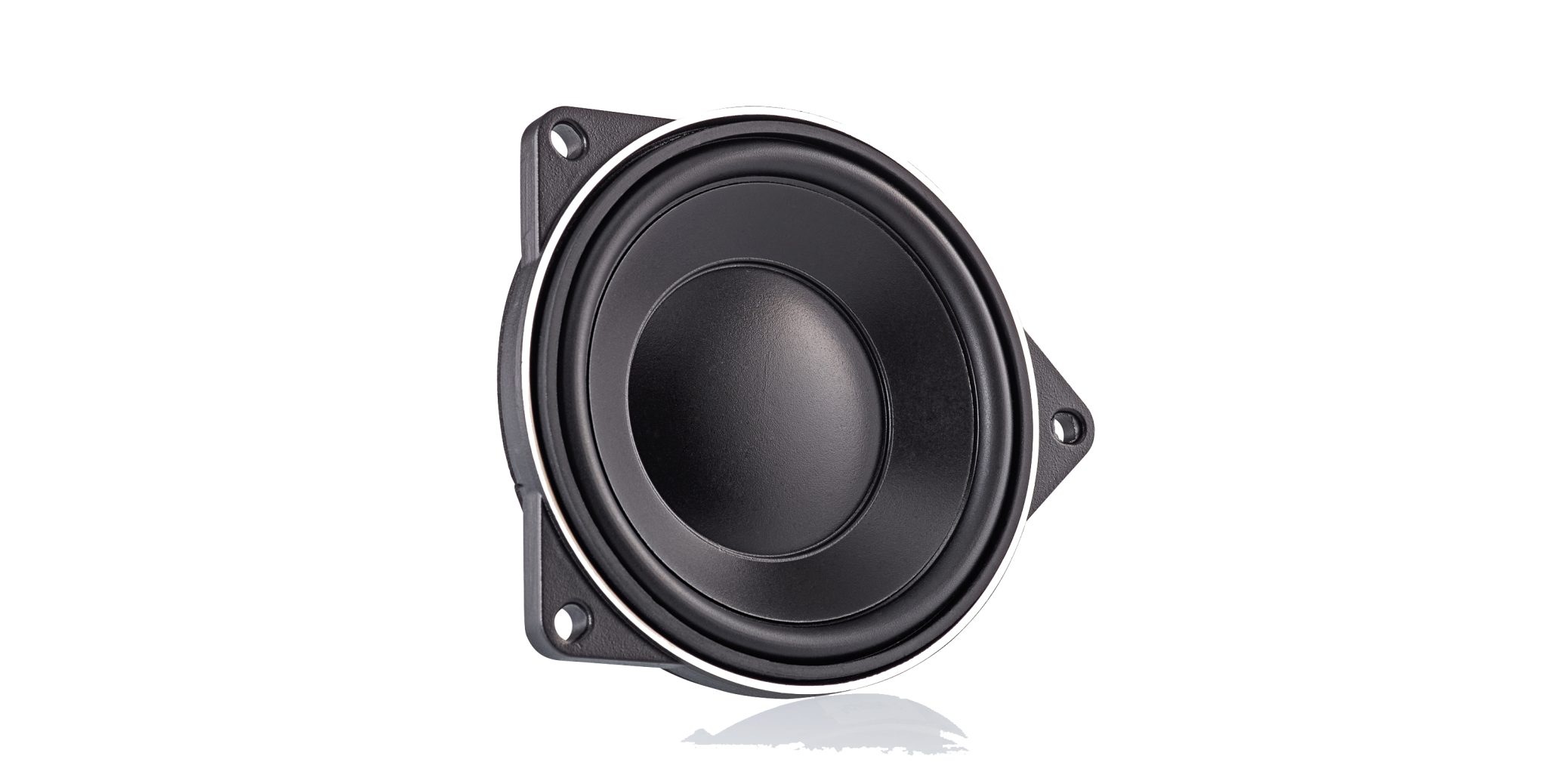

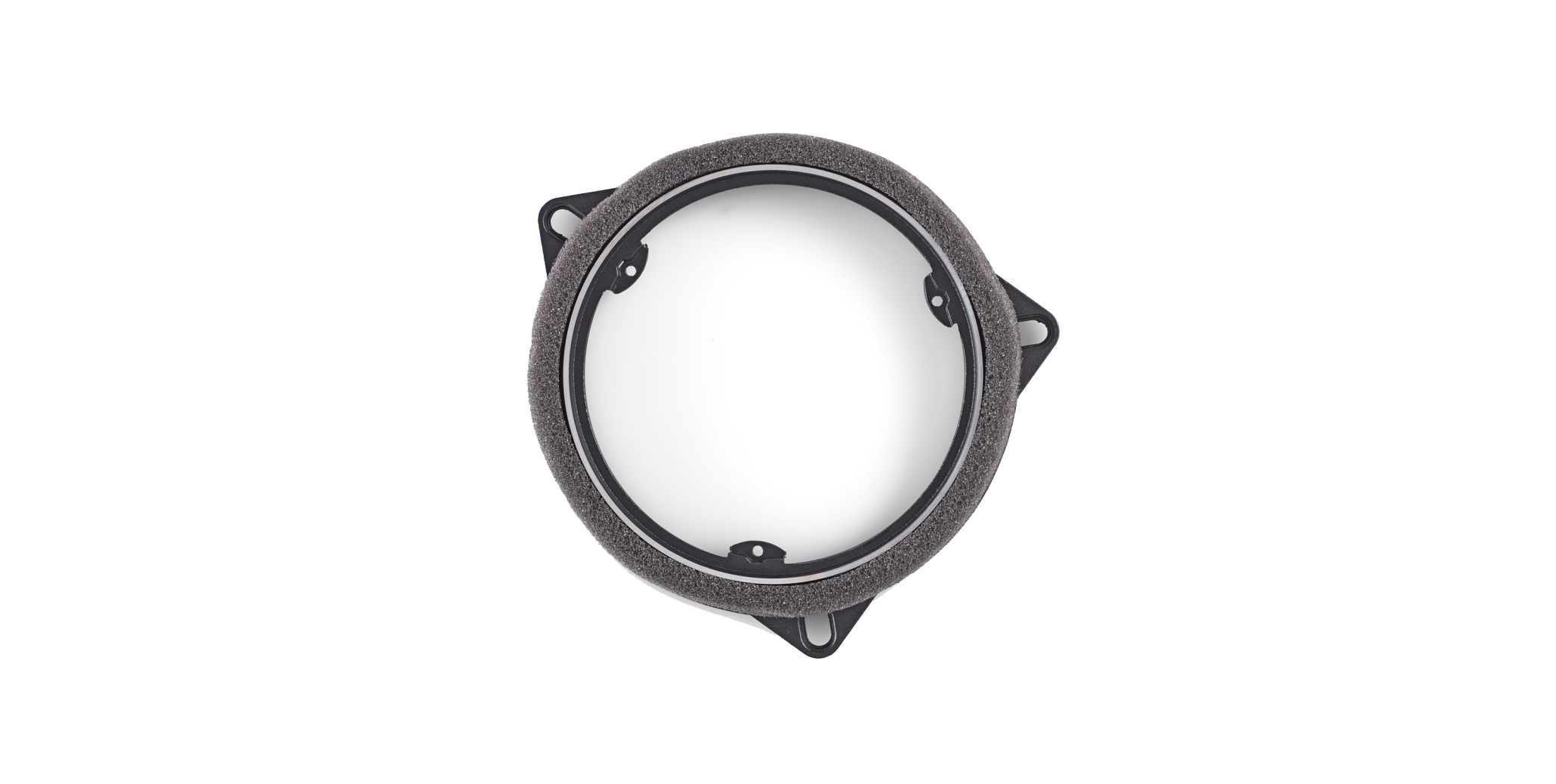

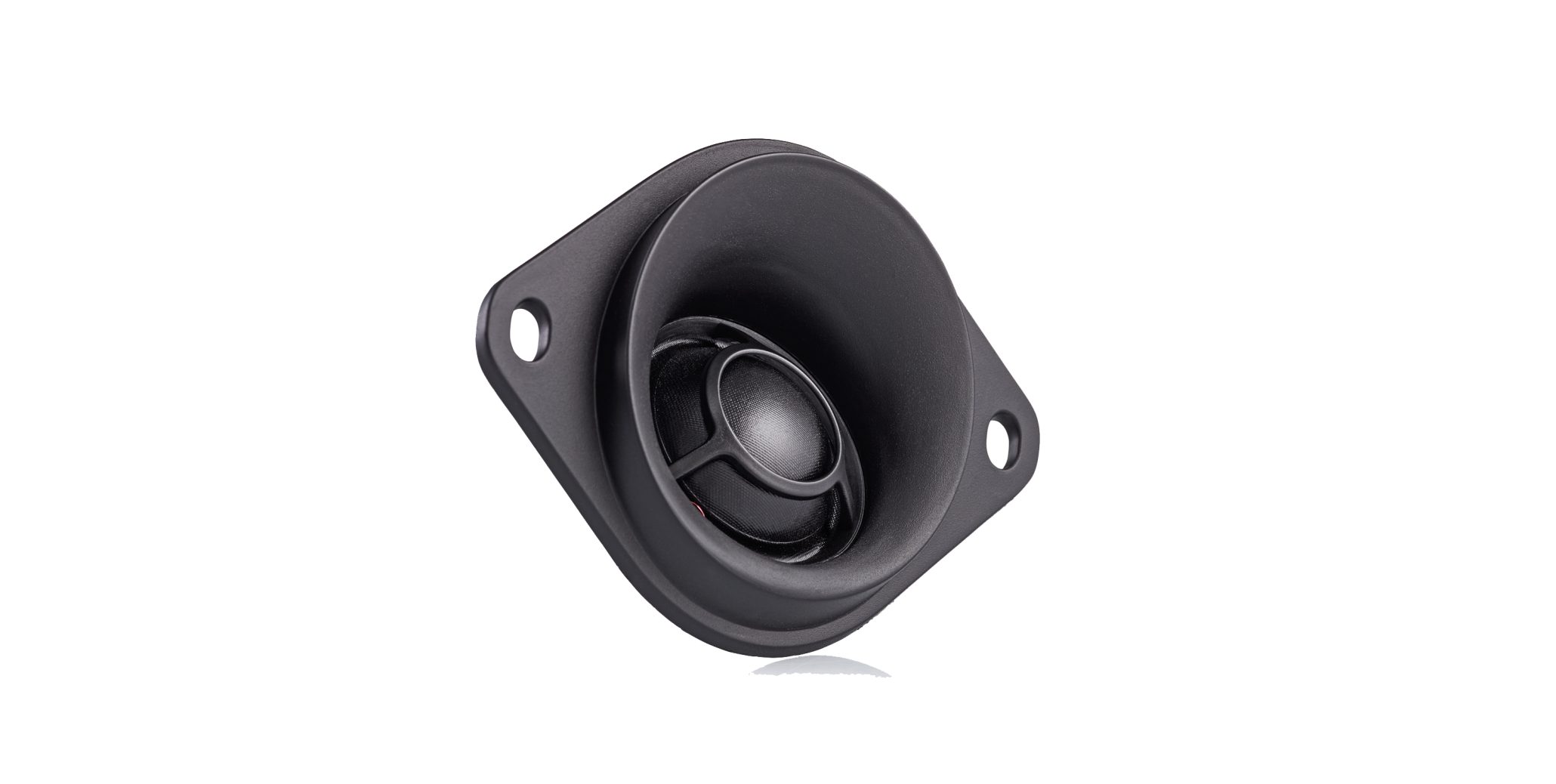

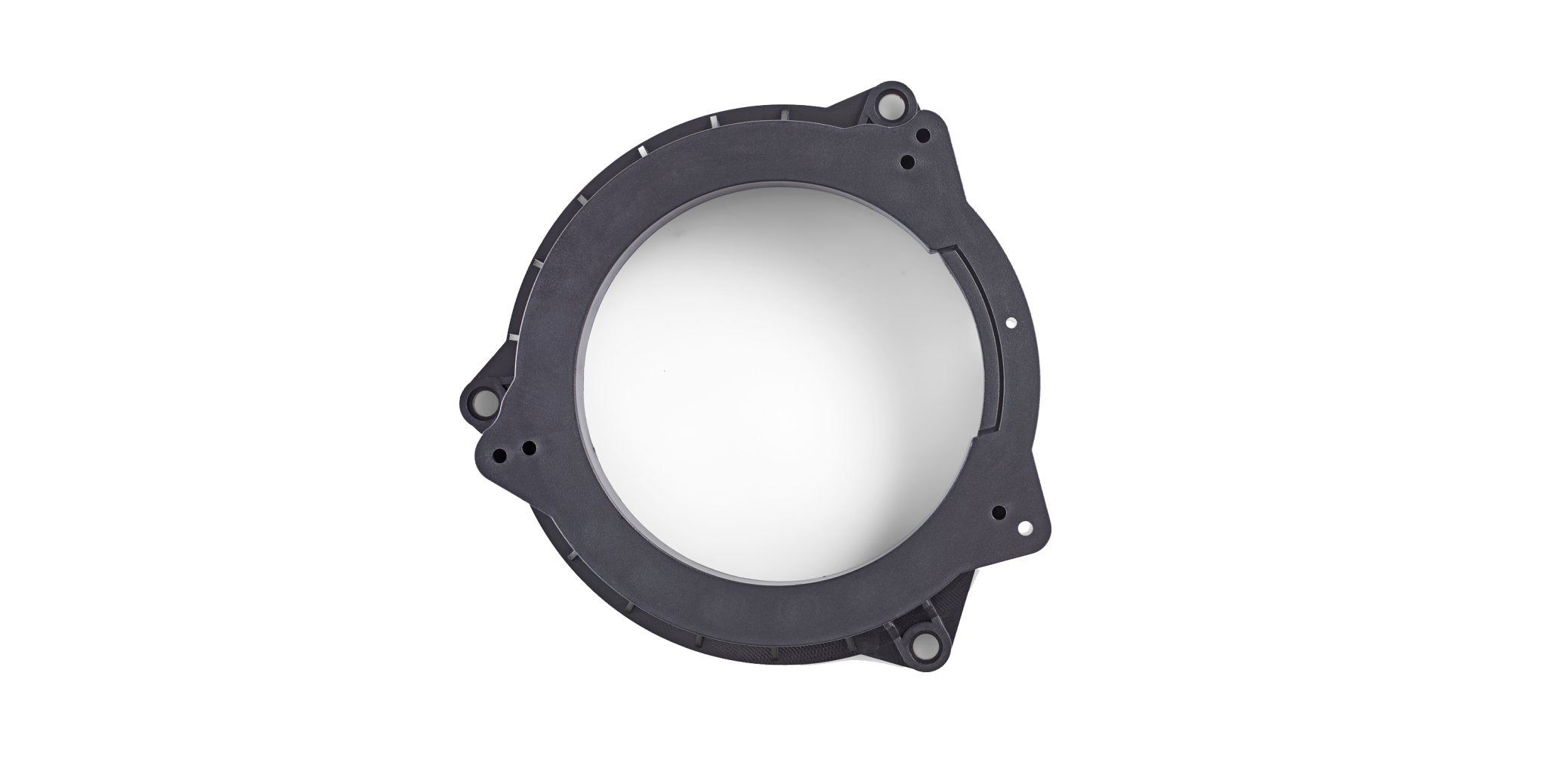

Featuring DirectFit, the unique 4-inch (100 mm) chassis design with supplied mounting brackets, easy snap in 1.1 (28mm) tweeters, and factory wire connections allow the BMW Integration Series to fit modern BMW without the need for modification.

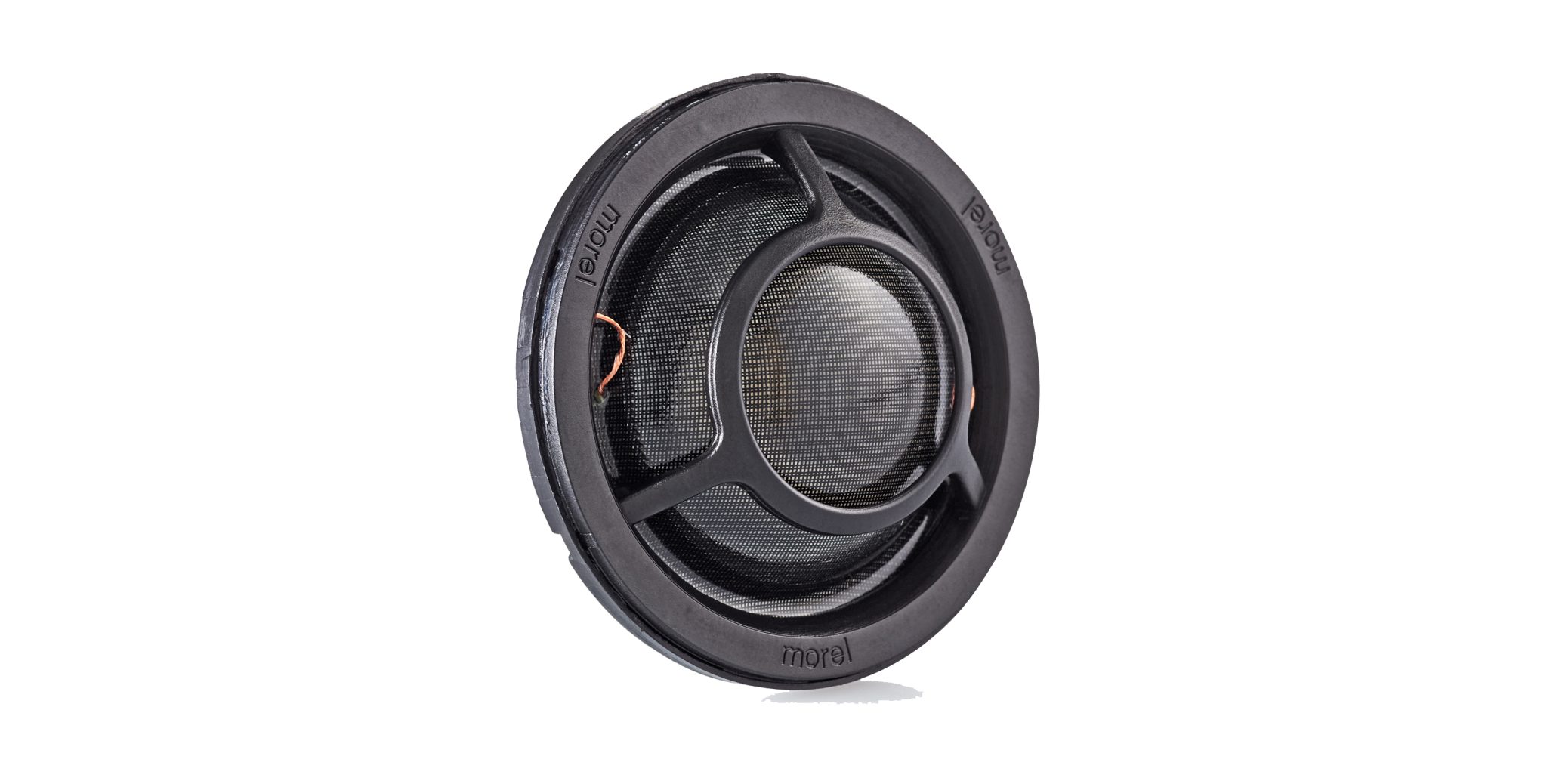

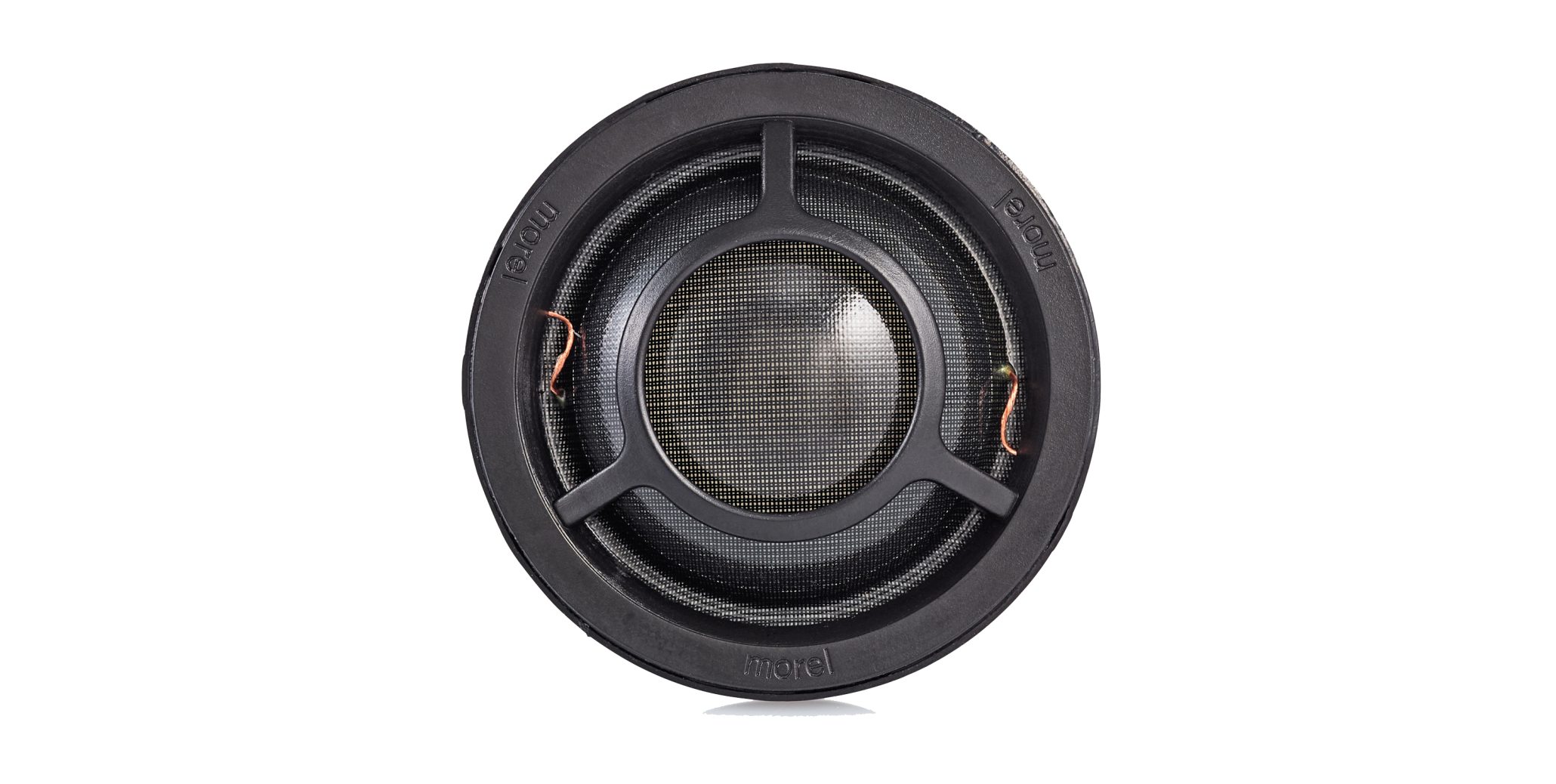

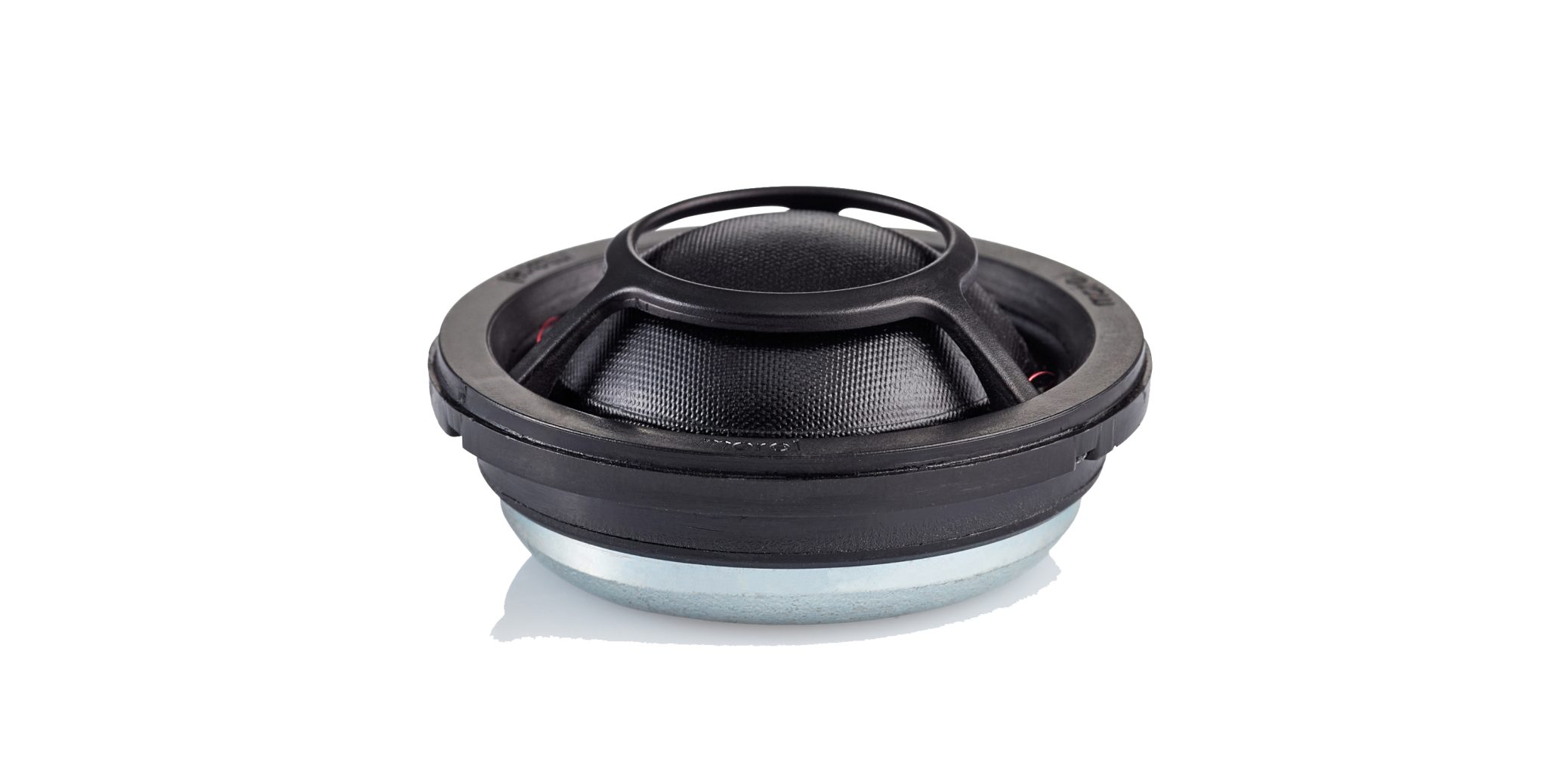

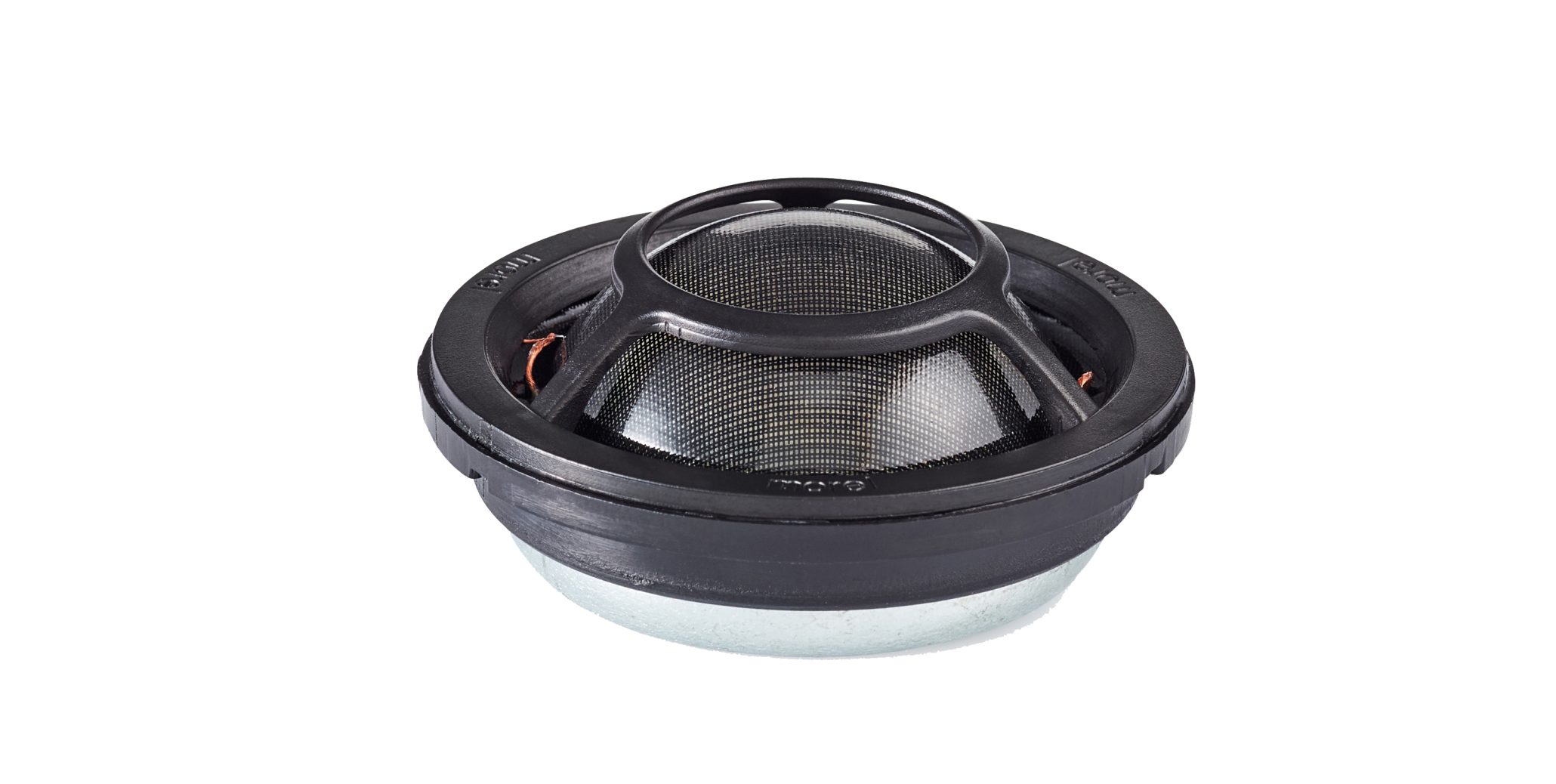

What truly sets apart the BMW Integration line apart from others is the hand crafted MT-100 tweeter based on Morel’s legendary design.

A powerful neodymium magnet motor and 1.1″ (28 mm) silk dome gives it exceptional resolution and a broad sound-stage, setting a new benchmark in plug-and-play systems.

Information Centre

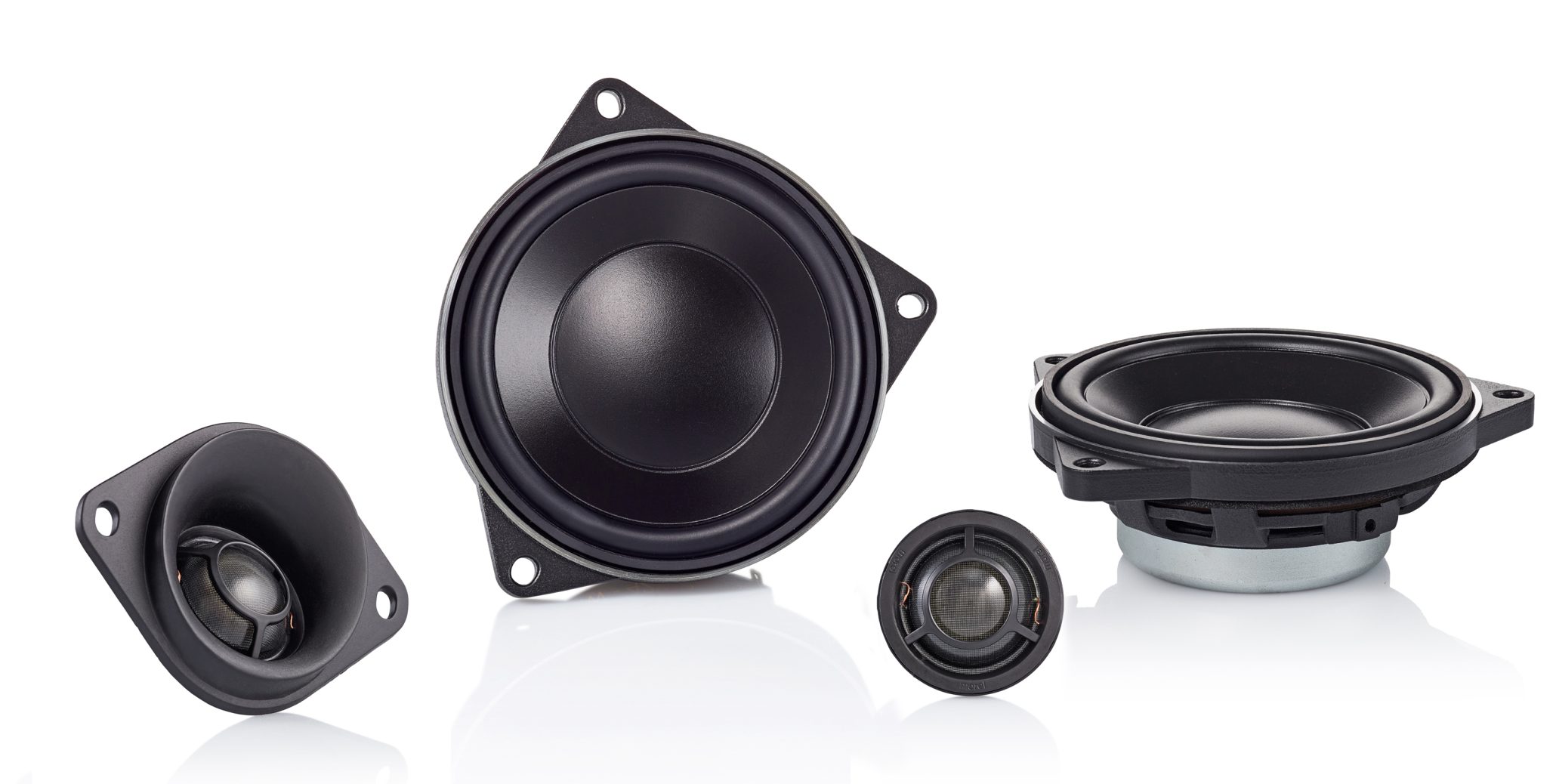

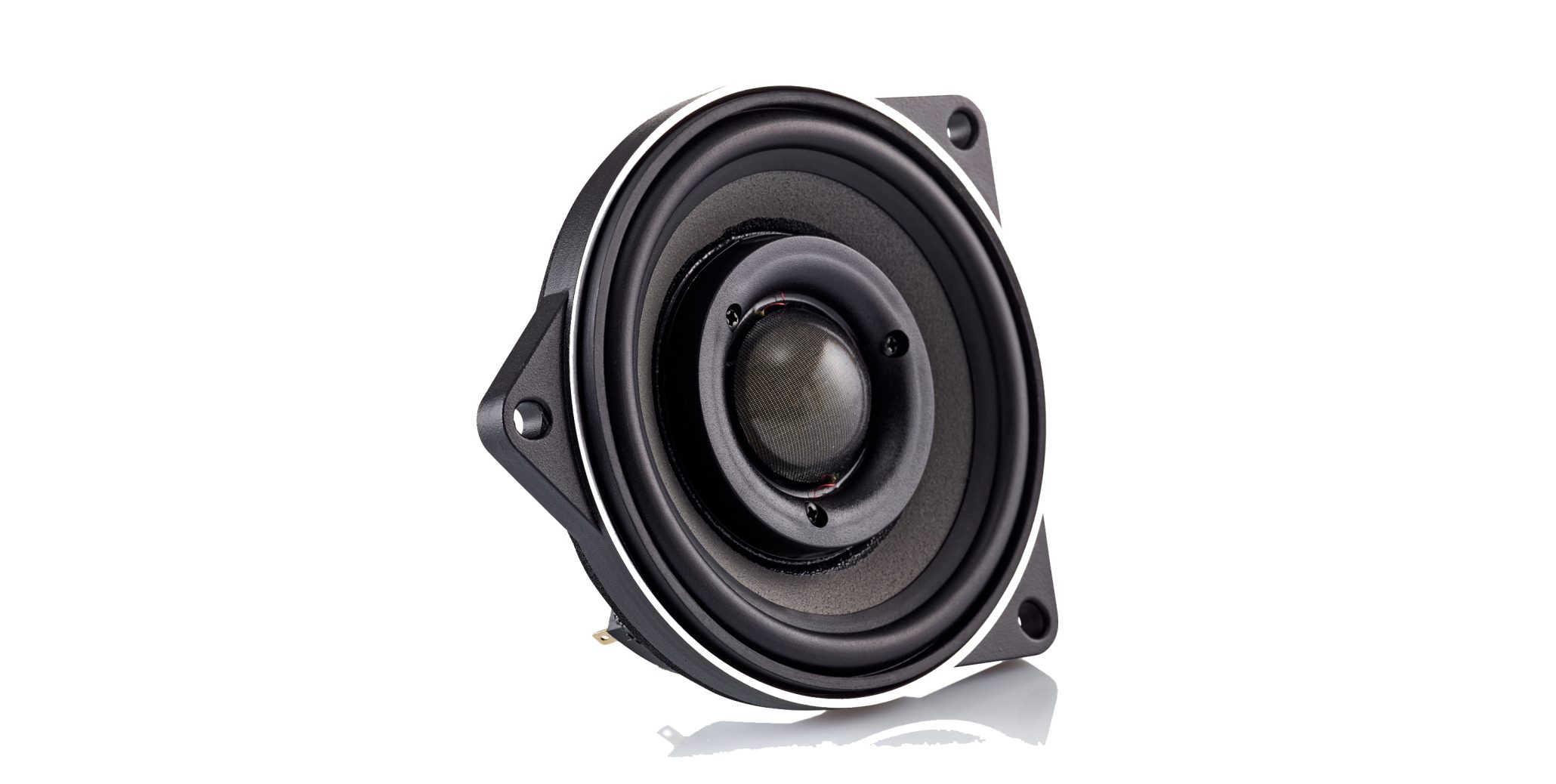

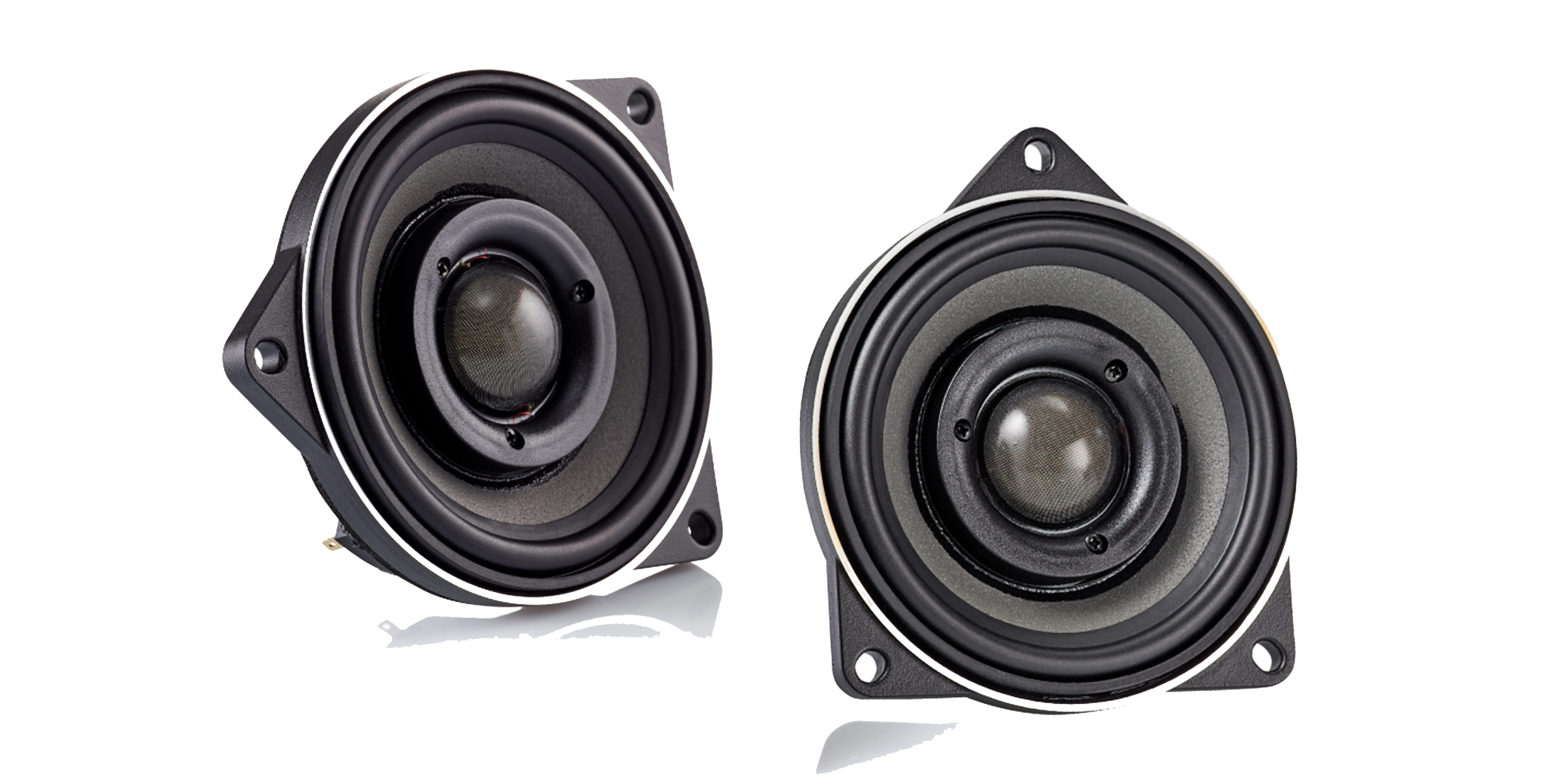

Reference Series	IR BMW 42	IR BMW 42 CTR	IR BMW 4 INT	IR BMW 4 INT CTR
MSRP (Aust.)	$1,838	$928	$1,488	$738
Configuration	2-Way Split System	2-Way Split Centre	Integra	Integra Centre
Frequency Resp.	50 - 25 kHz	80 - 25 kHz	80 - 25 kHz	80 - 25 kHz
Driver Size	100 mm	100 mm	100 mm	100 mm
RMS Power	100	100	80	80
Peak Power	300	300	250	250
Sensitivity	92 dB	92 dB	90 dB	90 dB
Impedance	4 ohm	4 ohm	4 ohm	4 ohm

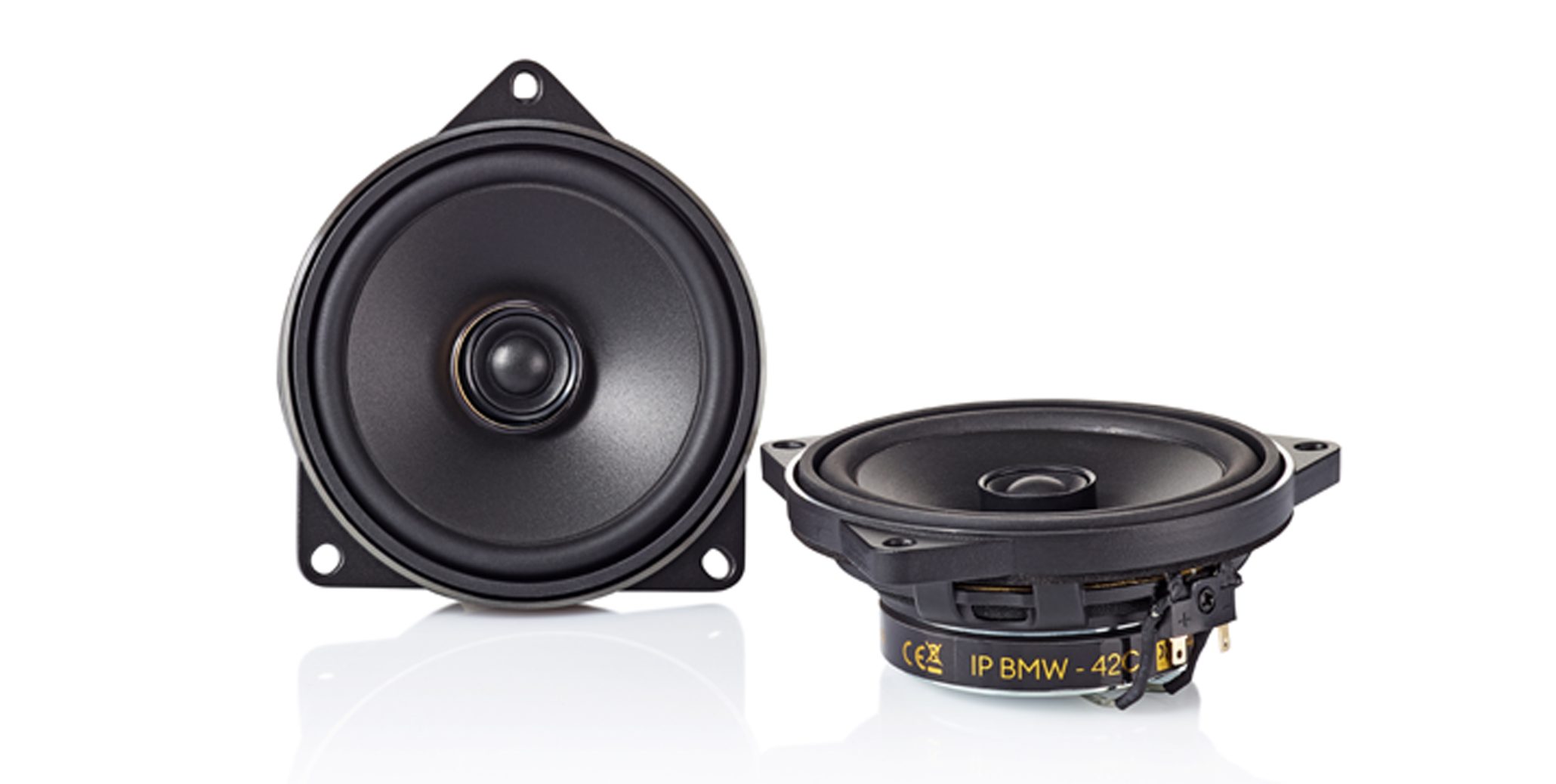

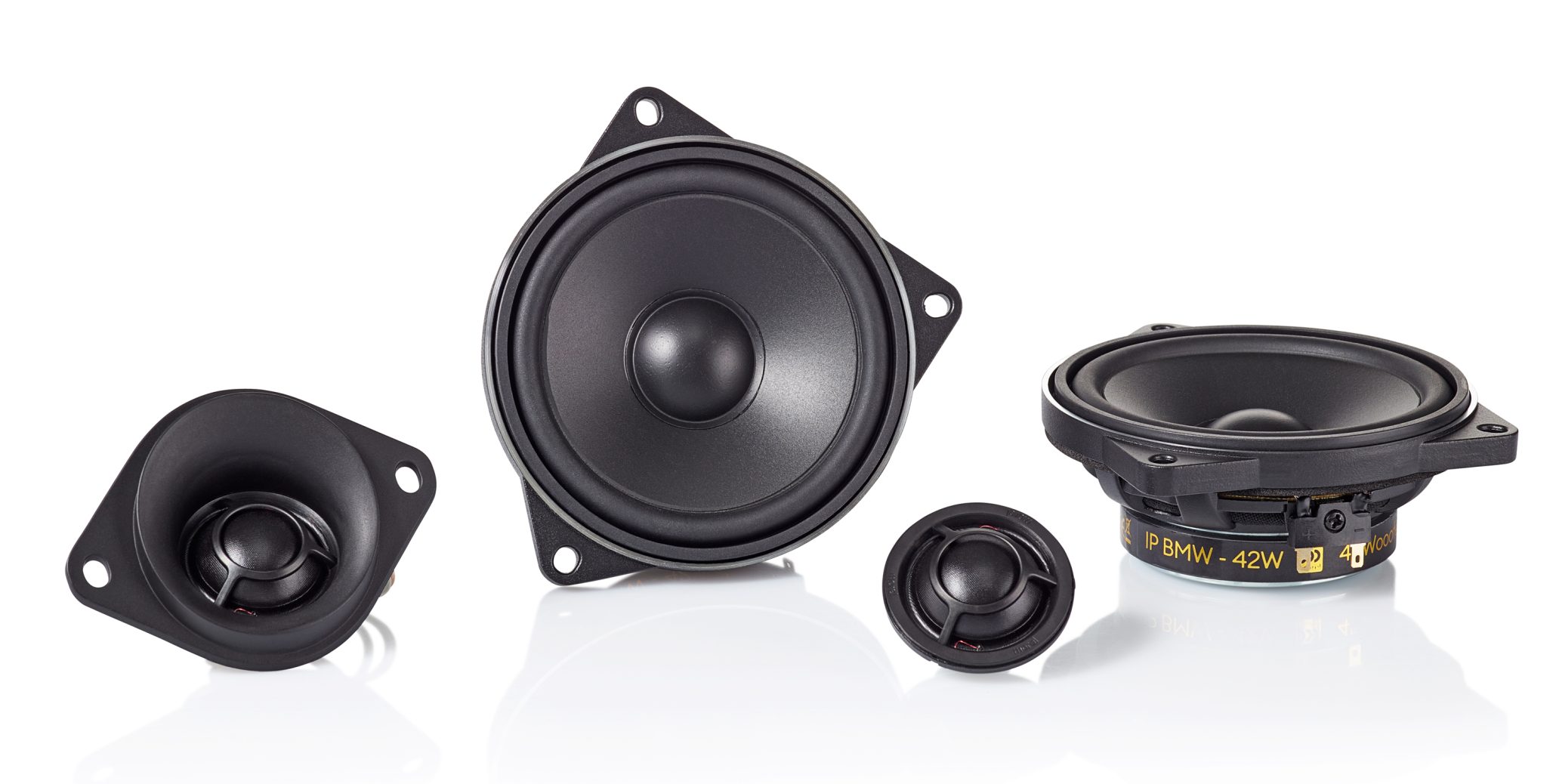

Reference Series	IP-BMW-42	IP BMW 42 CTR	IP BMW 4C	IP BMW 4C CTR
MSRP (Aust.)	$788	$398	$698	$348

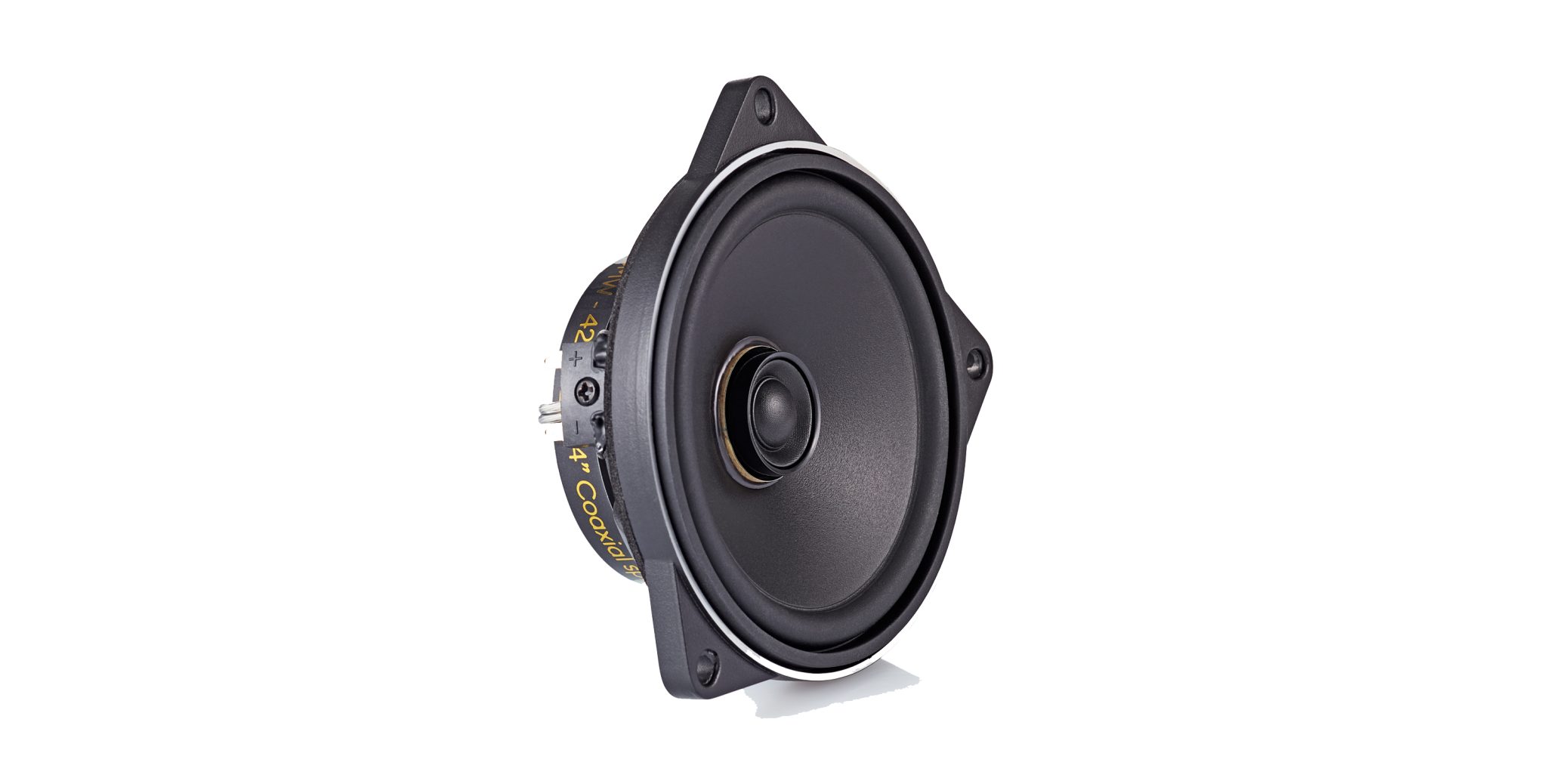

Configuration	2-Way Split System	Split Centre	Coaxial	Coaxial Centre
Frequency Resp.	80 - 22kHz	80 - 22 kHz	80 - 22 kHz	80 - 22 kHz
Driver Size	100 mm	100 mm	100 mm	100 mm
RMS Power	50	50	40	40
Peak Power	120	120	120	120
Sensitivity	89 dB	89 dB	89 dB	89 dB
Impedance	4 ohm	4 ohm	4 ohm	4 ohm

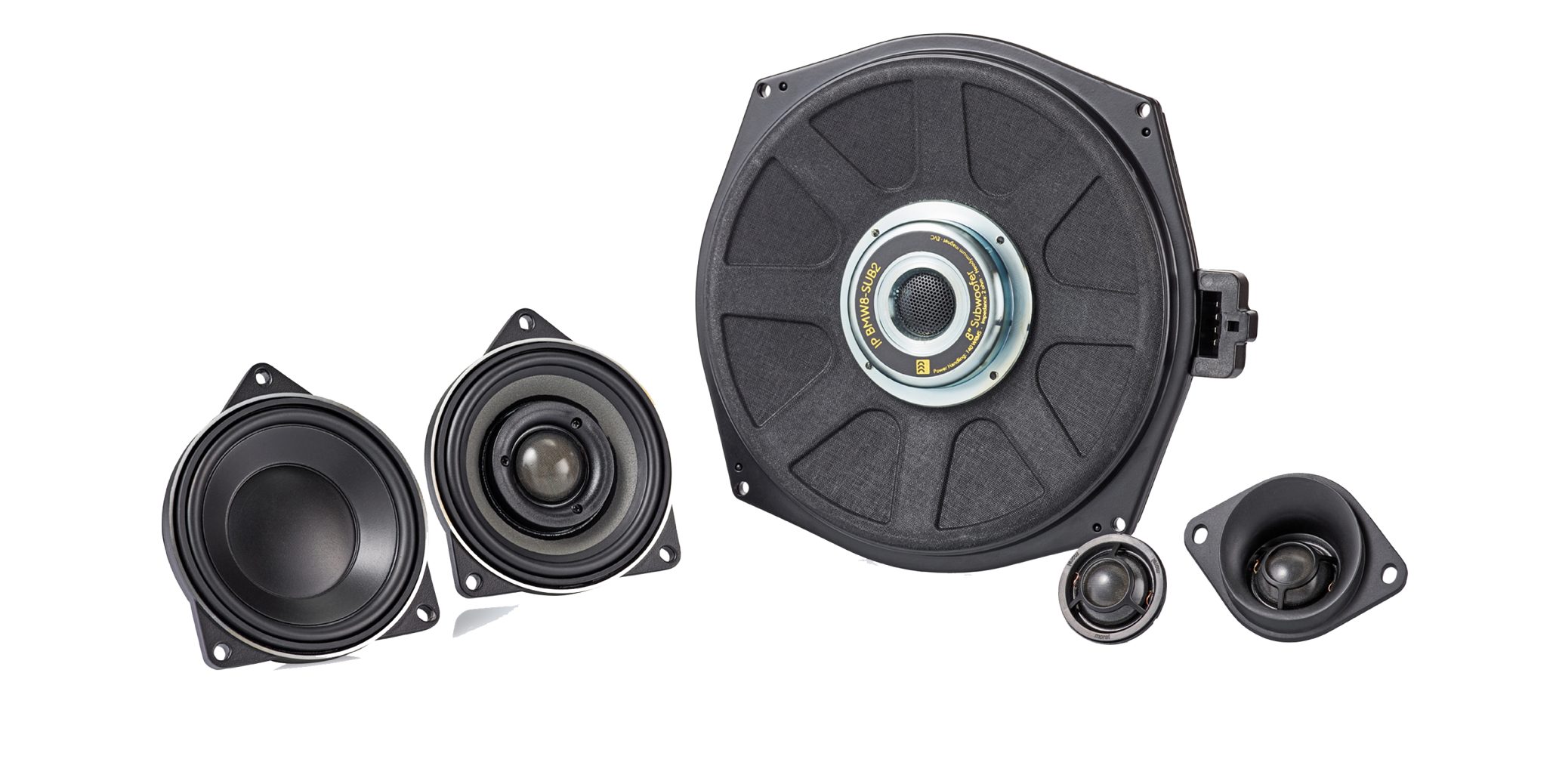

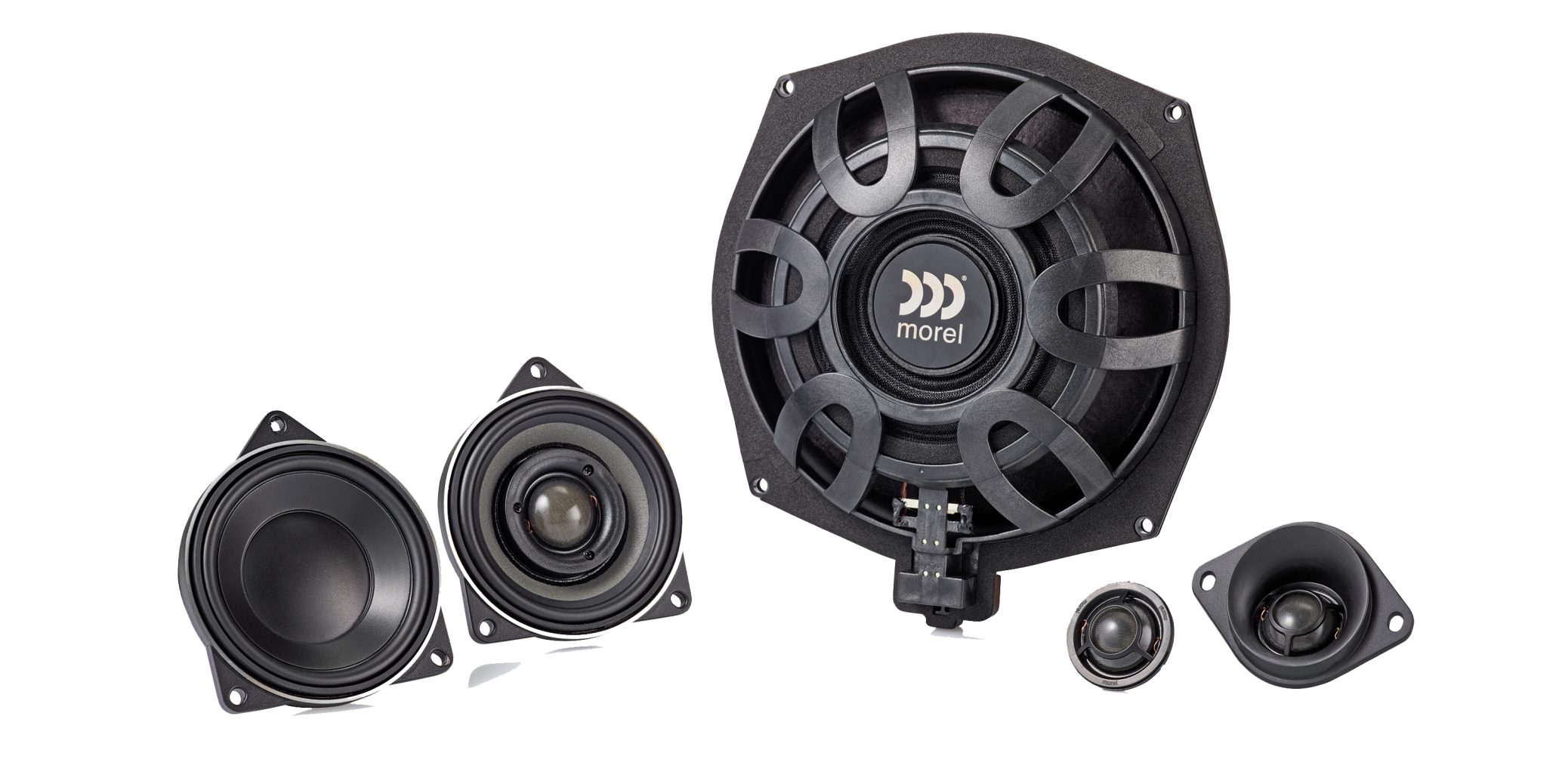

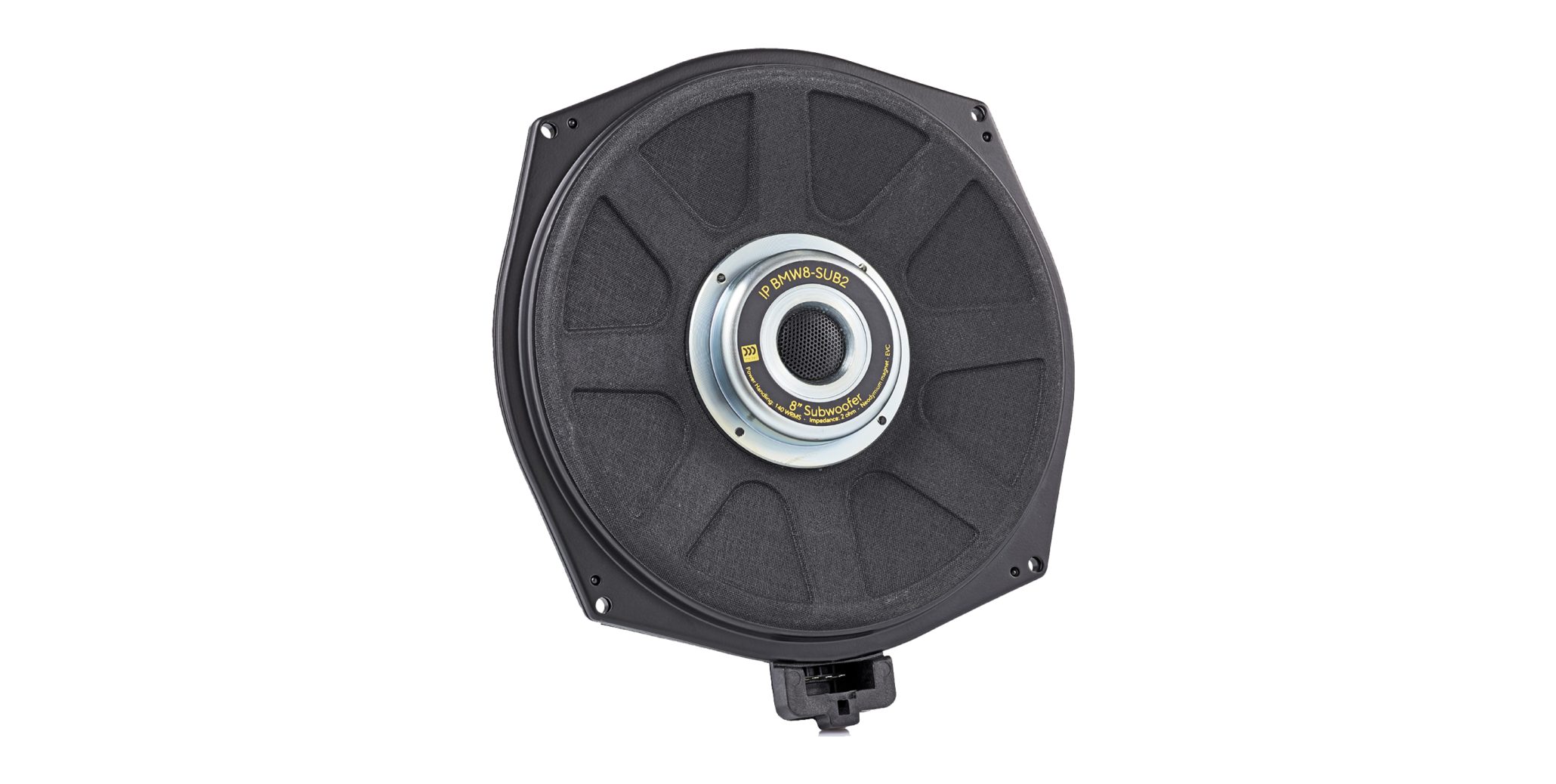

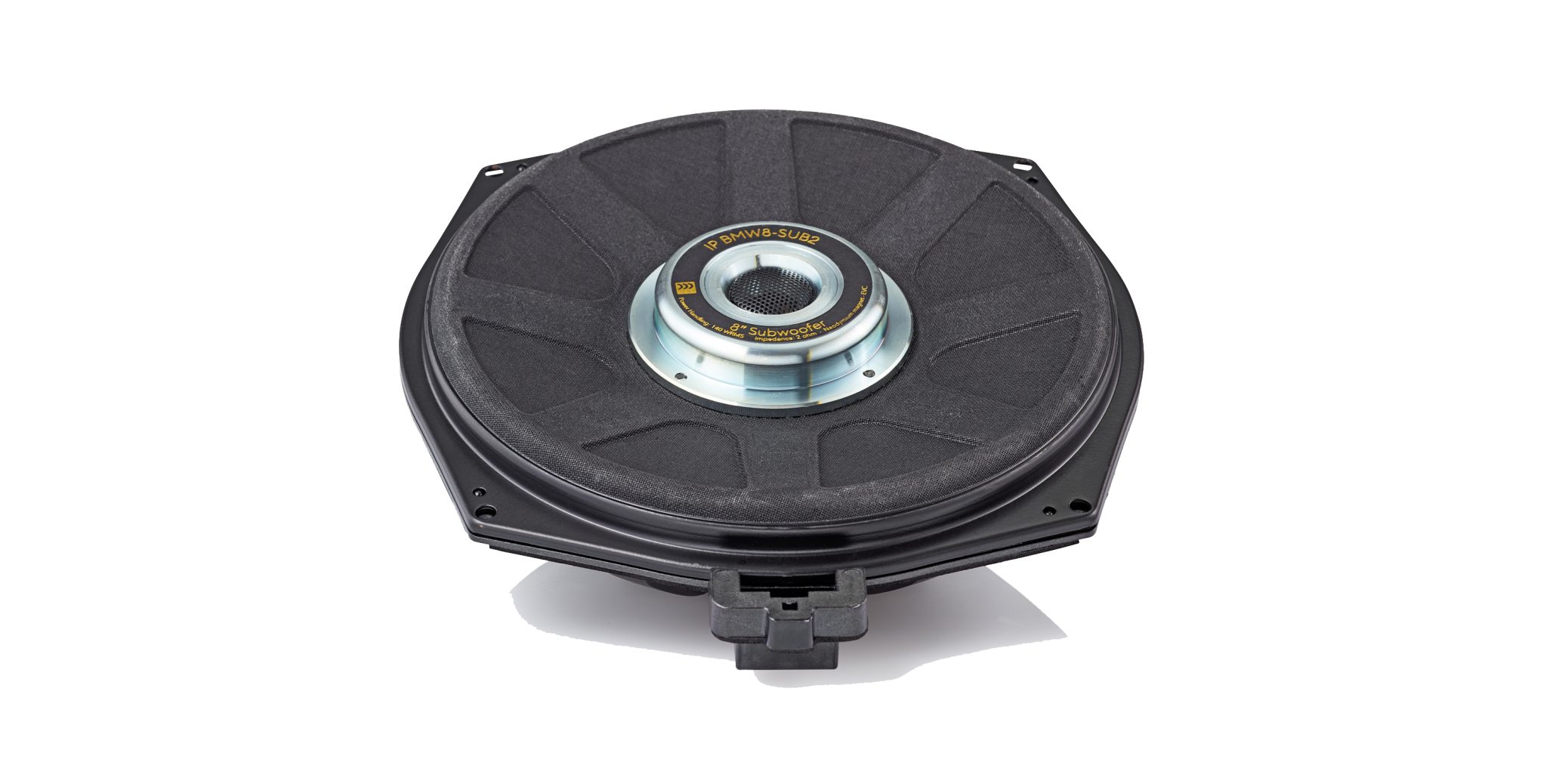

Reference Series	IP BMW SUB 82
MSRP (Aust.)	$648
Configuration	Subwoofer
Frequency Resp.	20 - 1 kHz
Driver Size	8"
RMS Power	180
Peak Power	500
Sensitivity	89 dB
Impedance	2 ohm

BMW Performance User Manual

BMW Reference User Manual

*Prices correct at 01/06/2024 and are subject to change.
