Acoustic Abatement

ACUDAMP – Acoustic Treatment

At Morel, we’re fanatics about getting the best performance out of your audio system. Upgrading to our award-winning speakers is a tremendous first step, but making sure your listening environment is free of noise and vibration will allow your Morel speakers to perform to a much higher level. With this in mind, Morel developed ACUDAMP – a premium line of acoustic materials engineered to significantly reduce interior resonances and isolate and dampen noise to improve the acoustic properties of your vehicle.  Applying ACUDAMP materials in key areas will significantly enhance bass performance and reduce distortion to ensure optimized performance of any sound system.

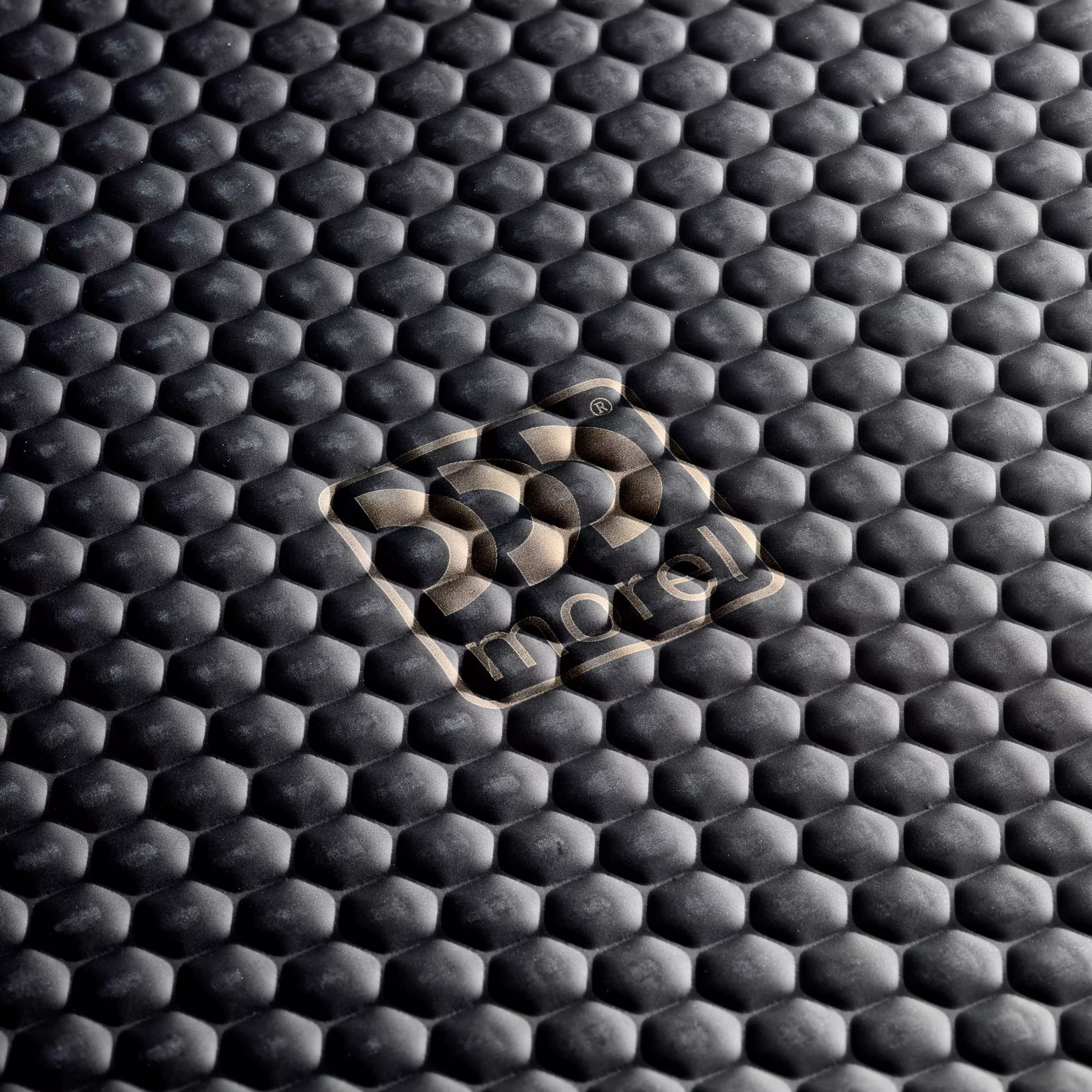

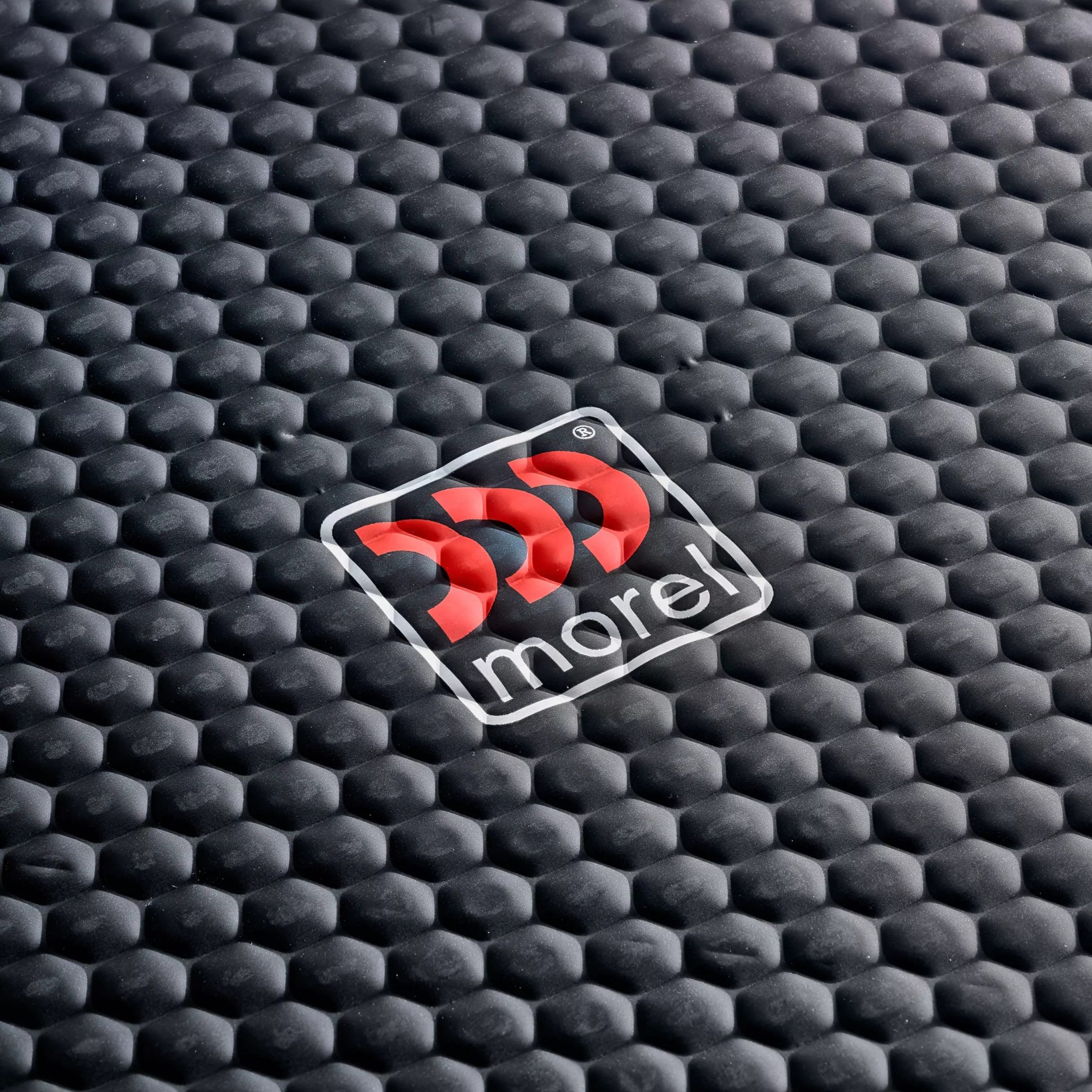

The MAT 221.10 is a 2.1 mm while 227.8 is a 2.7mm  premium triple-layer damping and vibration control mat that conforms and fuses to sheet metal and other hard substrates and surfaces to eliminate unwanted resonances, improves the damping properties of the car and maximizes the potential of any sound system.

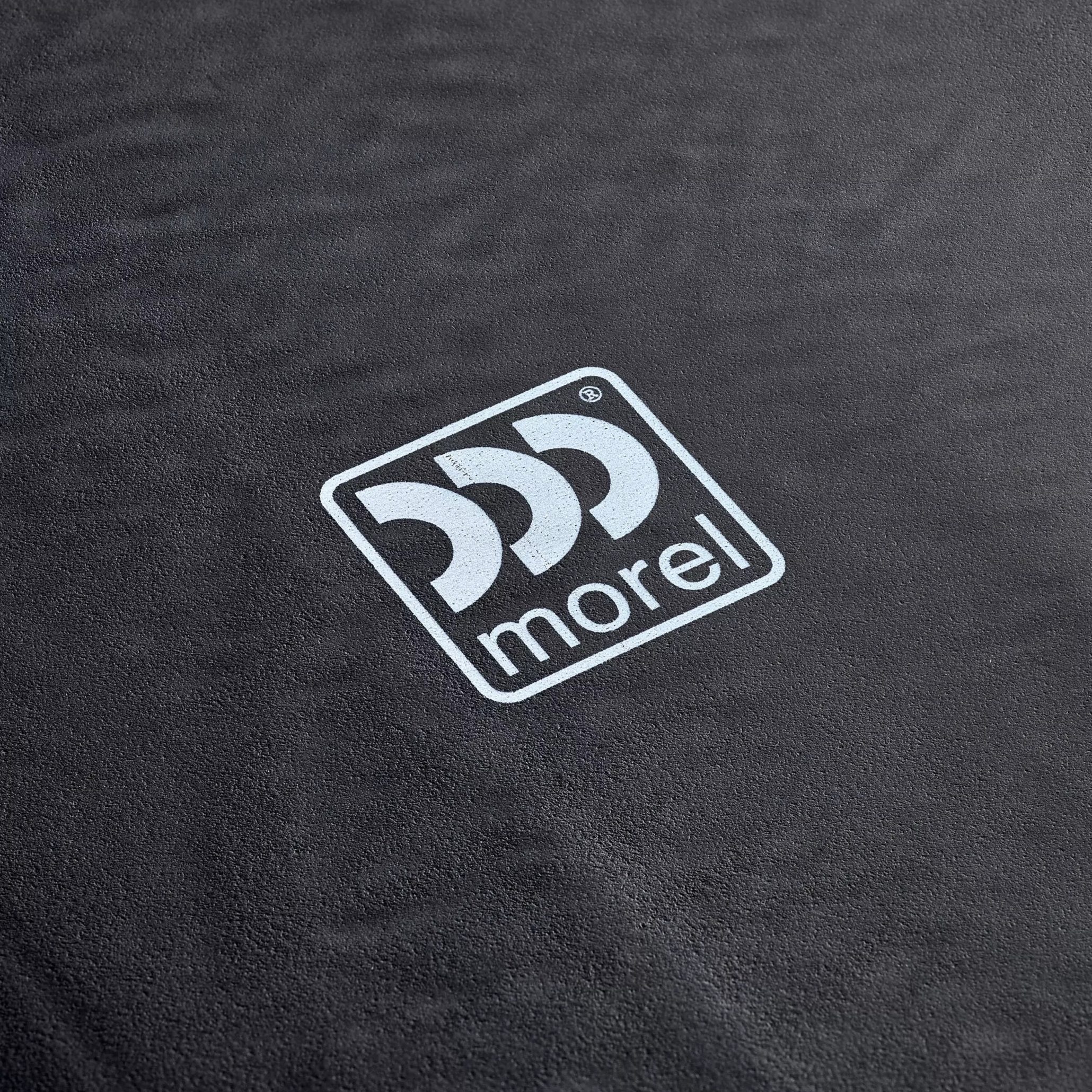

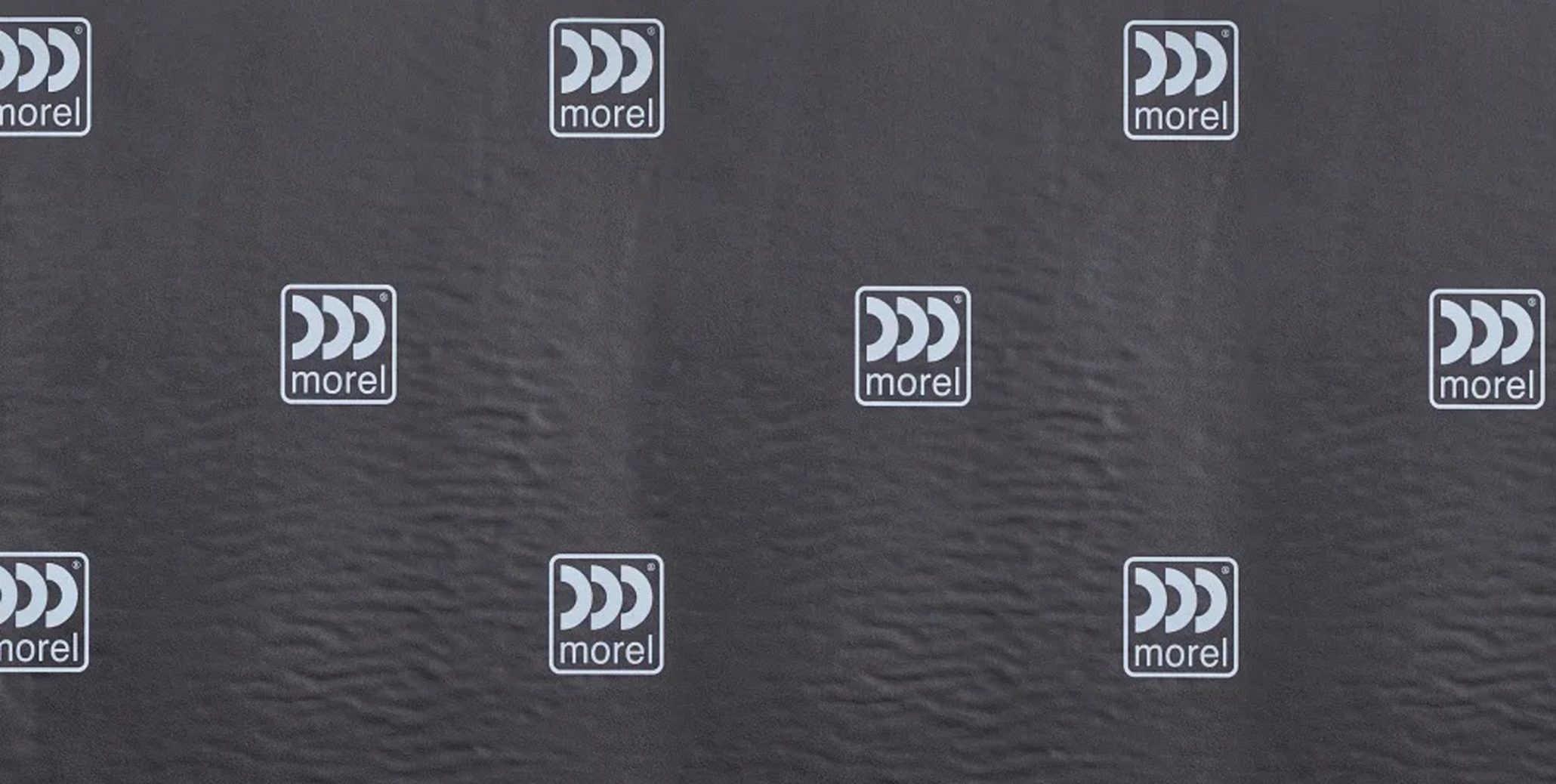

The MAT 345.5 is a premium quad-layer sheet composed of a special blend of materials, designed to dramatically improve any car audio system performance by minimizing road noise, reduce unwanted vibrations, improve the damping factor of the car’s cabin and offer heat insulation all in one single product.

The large sheet size of the Acudamp range can be cut to size for any application. It easily conforms and bonds to sheet metal and other hard substrates and surfaces. The premium adhesion material offers long-lasting functionality even at extreme temperatures.

Info Centre

ACUDAMPMAT 221.10MAT 227.8MAT 345SPK-6
MSRP (Aust.)$360$360$360$200
Thickness2.1 mm2.7 mm4.5 mm-
Sheet Size460 x 800460 x 800460 x 800254 x 190
Back Wave Pad---114 x 165
Coverage3.68 M2 (39.61 Ft.²)2,944 M2 (31.689 Ft.²)1.84 M2 (19.80 Ft.²)685 mm Length
Sheets per Box10 Sheets8 Sheets5 Sheets6 Strips + 6 Pads
Layers3 Layers3 Layers4 Layer-
Compsition*1*1*2*3



  1.    3-layer design of adhesive, butyl, and aluminum.
  2.    4-layer design of adhesive, butyl, aluminum, and closed-cell buty.

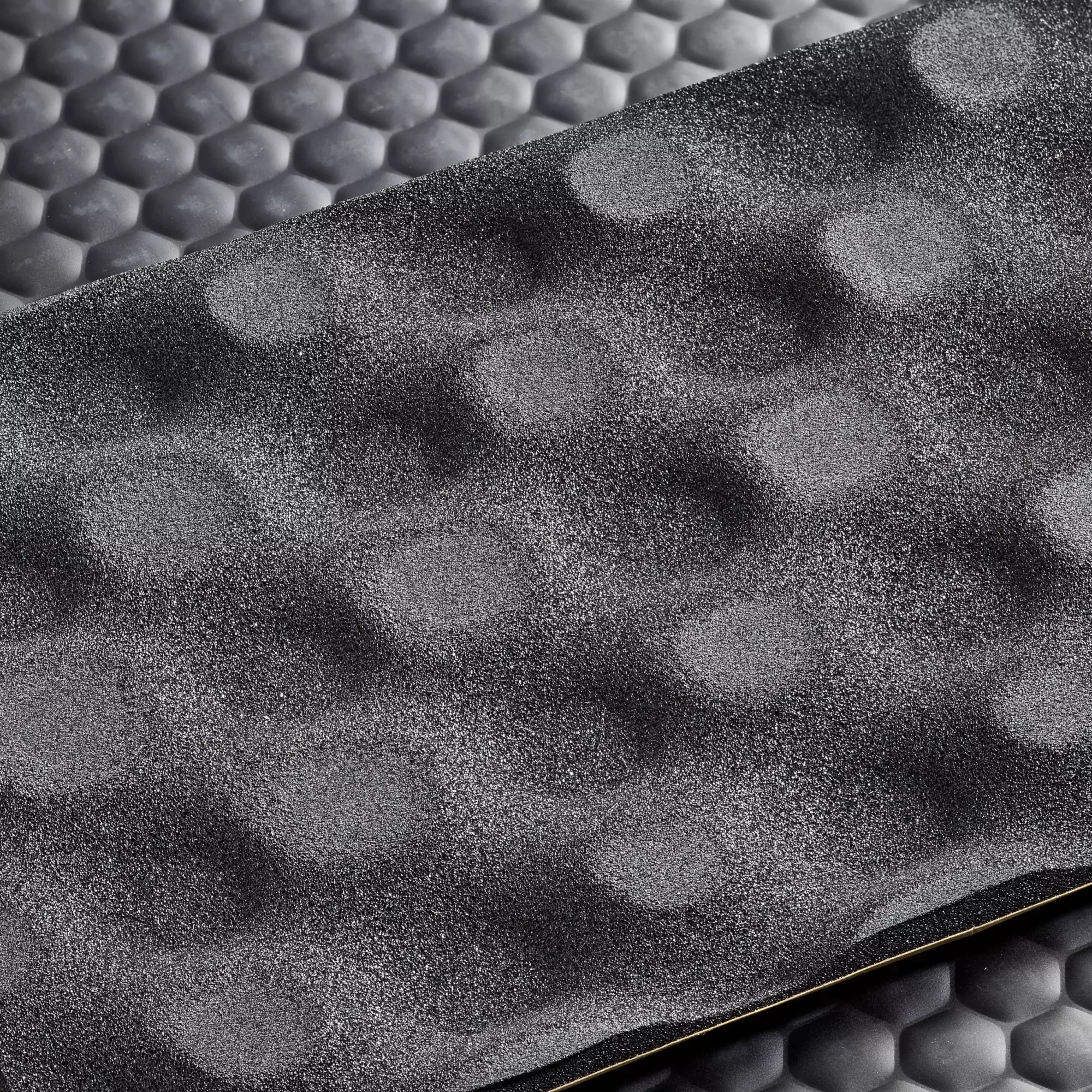

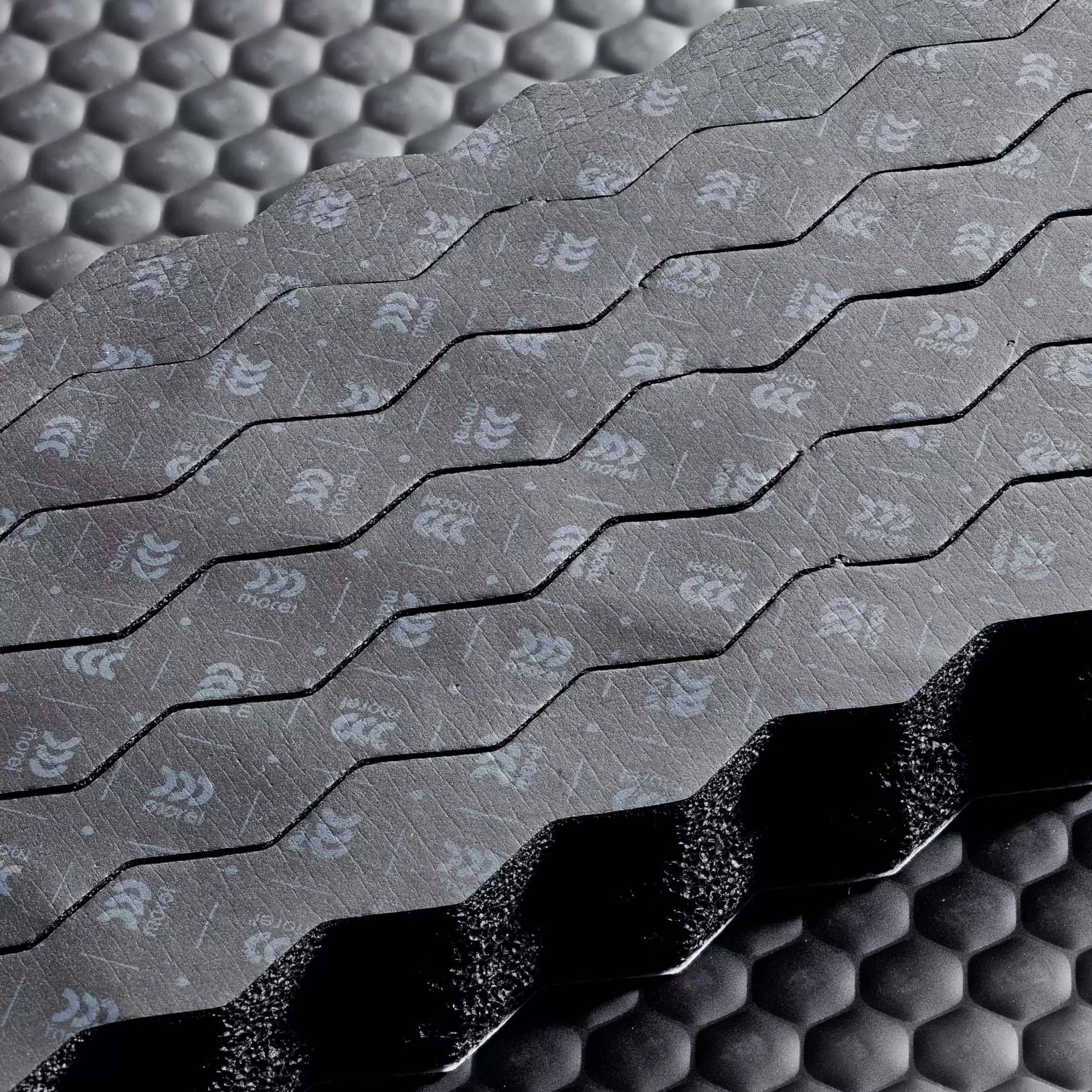

  3.    Premium closed-cell butyl strips for improving the speaker’s seal to the door panels and back wave diffuser pads.





*Prices correct at 01/09/2025 and are subject to change.
